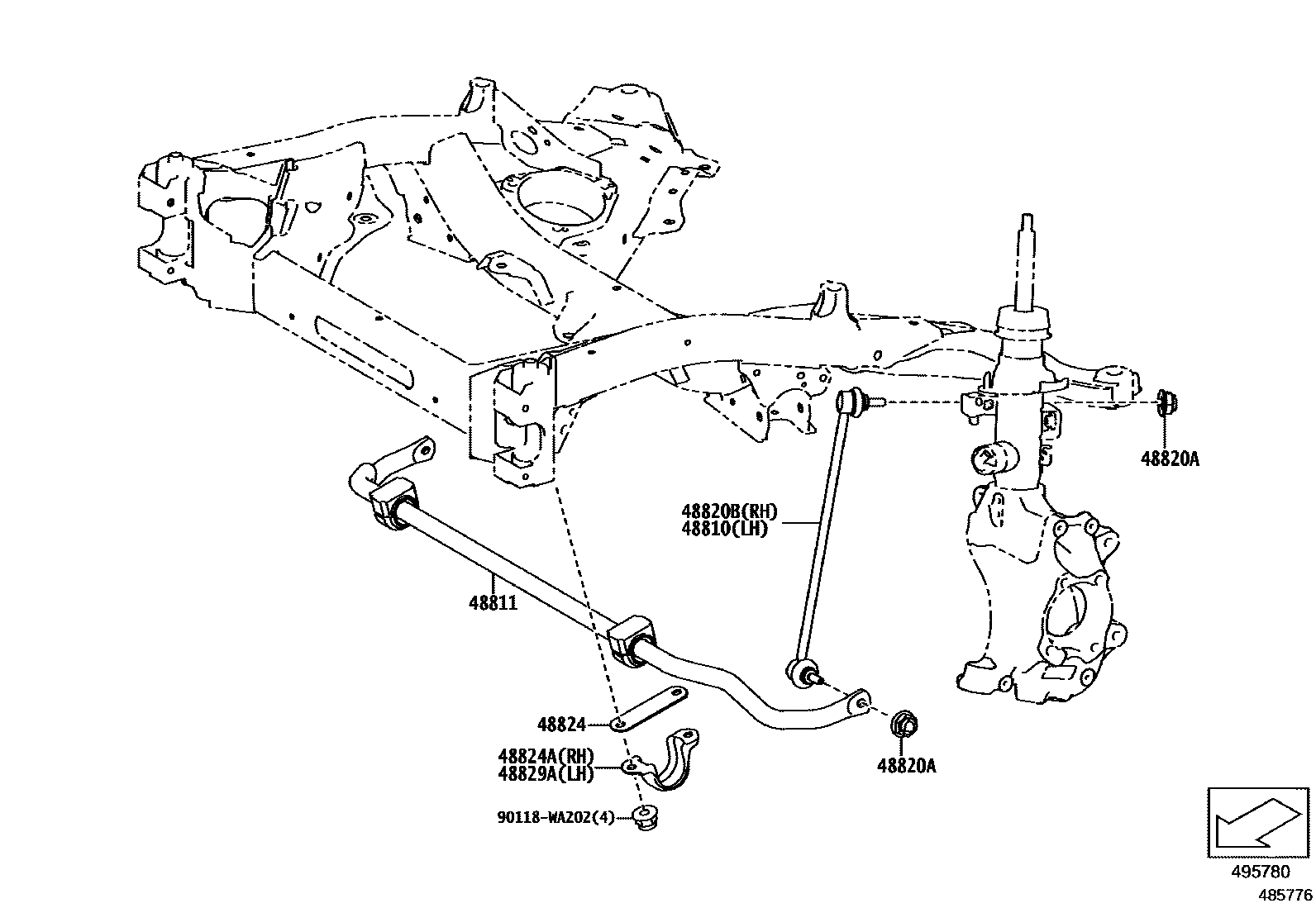

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1W(AVS) 0004 1

48810LINK ASSY, FRONT STABILIZER, LH

main48820-WAA01iDB0#,2#,4#,85202207

48811BAR, STABILIZER, FRONT

main48804-WAA03iDB0#,2#,4#,85202207

48820ANUT(FOR FRONT STABILIZER LINK)

main90118-WA201×4iDB0#,2#,4#,85202207

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-WAA02iDB0#,2#,4#,85202207

48824BRACKET, STABILIZER, FRONT

main48827-WAA01×2iDB0#,2#,4#,85202207

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-WAA01iDB0#,2#,4#,85202207

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-WAA01iDB0#,2#,4#,85202207

90118WA202

main90118-WA202

8 parts on this diagram · 4 diagrams in section
