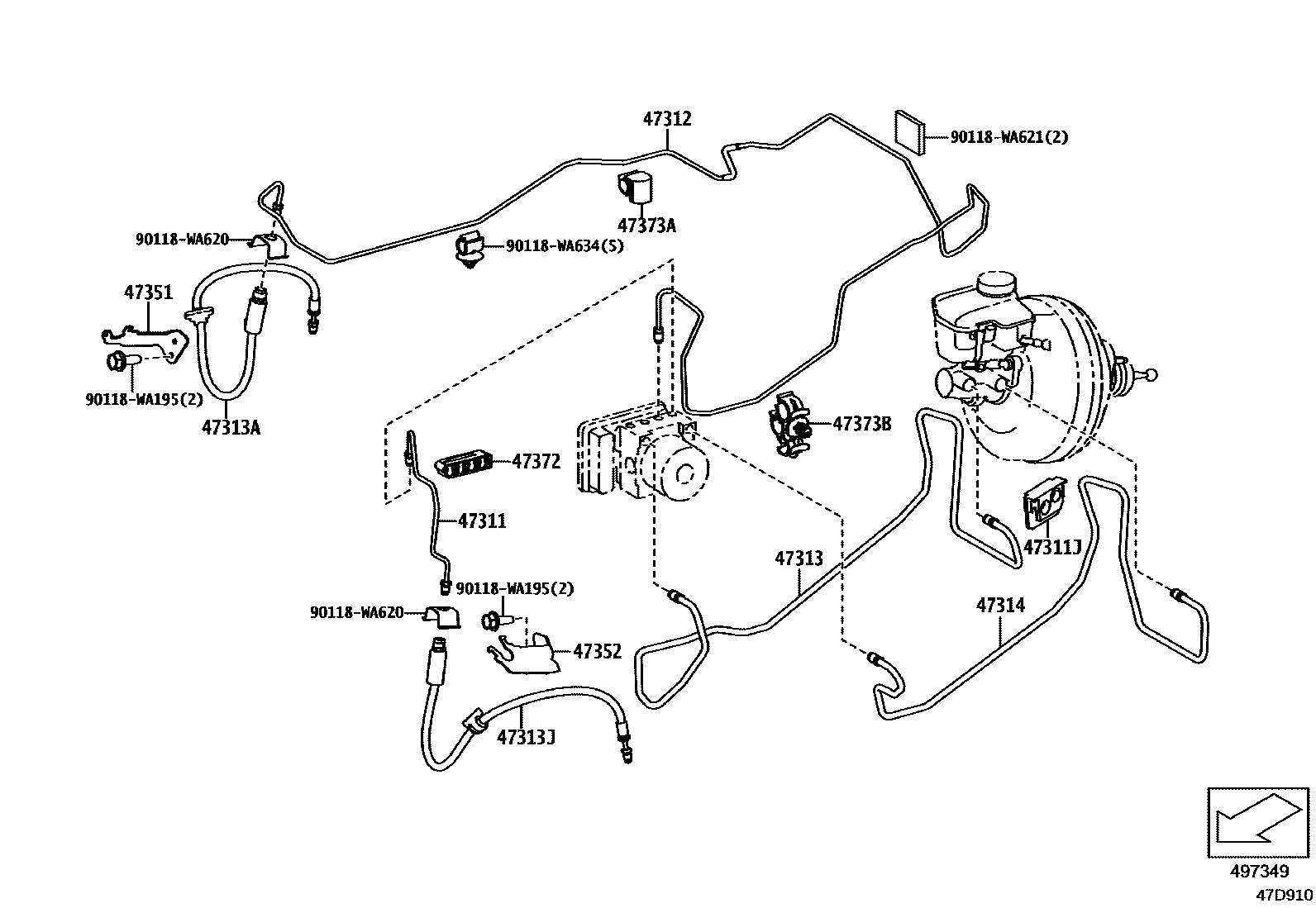

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

47311TUBE, FRONT BRAKE, NO.1

main47311-WAA02iDB0#,2#,4#,85¥22,700202207

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90118-WA639iDB0#,2#,4#,85¥310202207

main90118-WA640iDB0#,2#,4#,85¥340202207

###

47312TUBE, FRONT BRAKE, NO.2

main47312-WAA02iDB0#,2#,4#,85¥22,700202207

47313TUBE, FRONT BRAKE, NO.3

main47313-WAA03iDB06,26,46¥22,700202207

main47313-WAA04iDB05,25,45,85¥22,700202207

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90118-WA635iDB0#,2#,4#,85¥6,200202207

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90118-WA635iDB0#,2#,4#,85¥6,200202207

47314TUBE, FRONT BRAKE, NO.4

main47314-WAA03iDB06,26,46¥22,700202207

main47314-WAA04iDB05,25,45,85¥22,700202207

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-WAA01iDB0#,2#,4#,85¥780202207

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-WAA01iDB0#,2#,4#,85¥780202207

47372CLAMP, BRAKE TUBE, NO.2

main90118-WA623iDB0#,2#,4#,85¥90202207

47373ABRACKET, TUBE CLAMP

main90118-WA628iDB05,25,45,85¥340202207

47373BCLAMP, BRAKE TUBE, NO.3

main90118-WA641iDB0#,2#,4#,85¥490202207

90118WA195

main90118-WA195¥160

90118WA620

main90118-WA620¥150

90118WA621

main90118-WA621¥1,830

90118WA634

main90118-WA634¥270

16 parts on this diagram · 5 diagrams in section
