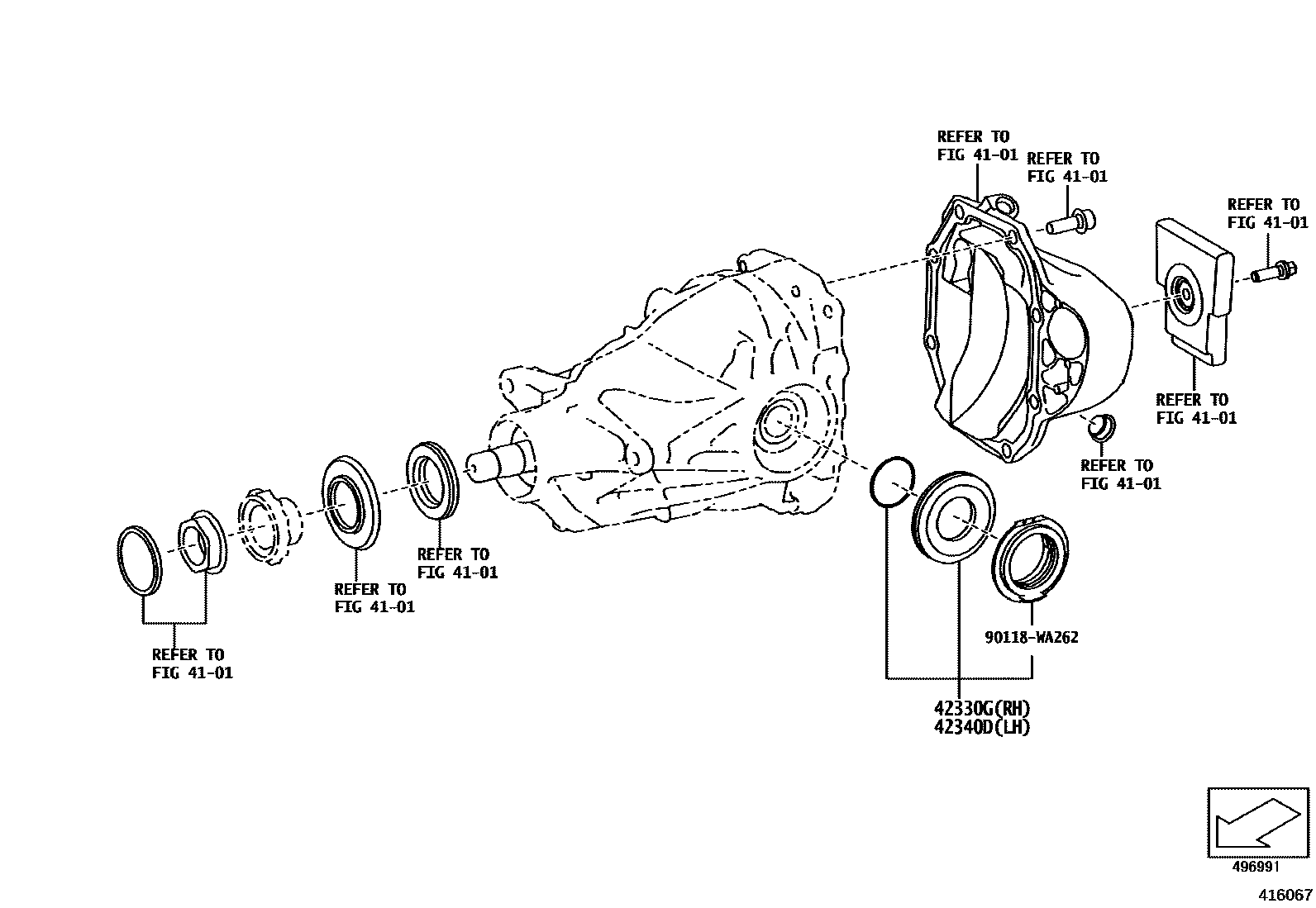

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1 0005 1

4101

42330SHAFT ASSY, REAR DRIVE, RH

main42330-WAA04iDB0#,2#,4#¥153,000202207-202307

sub42330-WAA07¥103,000

main42330-WAA05iDB2#,85¥103,000202207-202307

main42330-WAA06iDB2#,85¥103,000202307

main42330-WAA07iDB0#,4#¥103,000202307

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90118-WA520iDB2#,85¥12,400202207-202210

main90118-WA521iDB0#,2#,4#¥5,600202207-202210

sub90118-WAA60¥10,400

main90118-WAA60iDB0#,2#,4#¥10,400202210

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90118-WA520iDB2#,85¥12,400202207-202210

main90118-WA521iDB0#,2#,4#¥5,600202207-202210

sub90118-WAA60¥10,400

main90118-WAA60iDB0#,2#,4#¥10,400202210

90118WA262

main90118-WA262¥810

5 parts on this diagram · 5 diagrams in section
