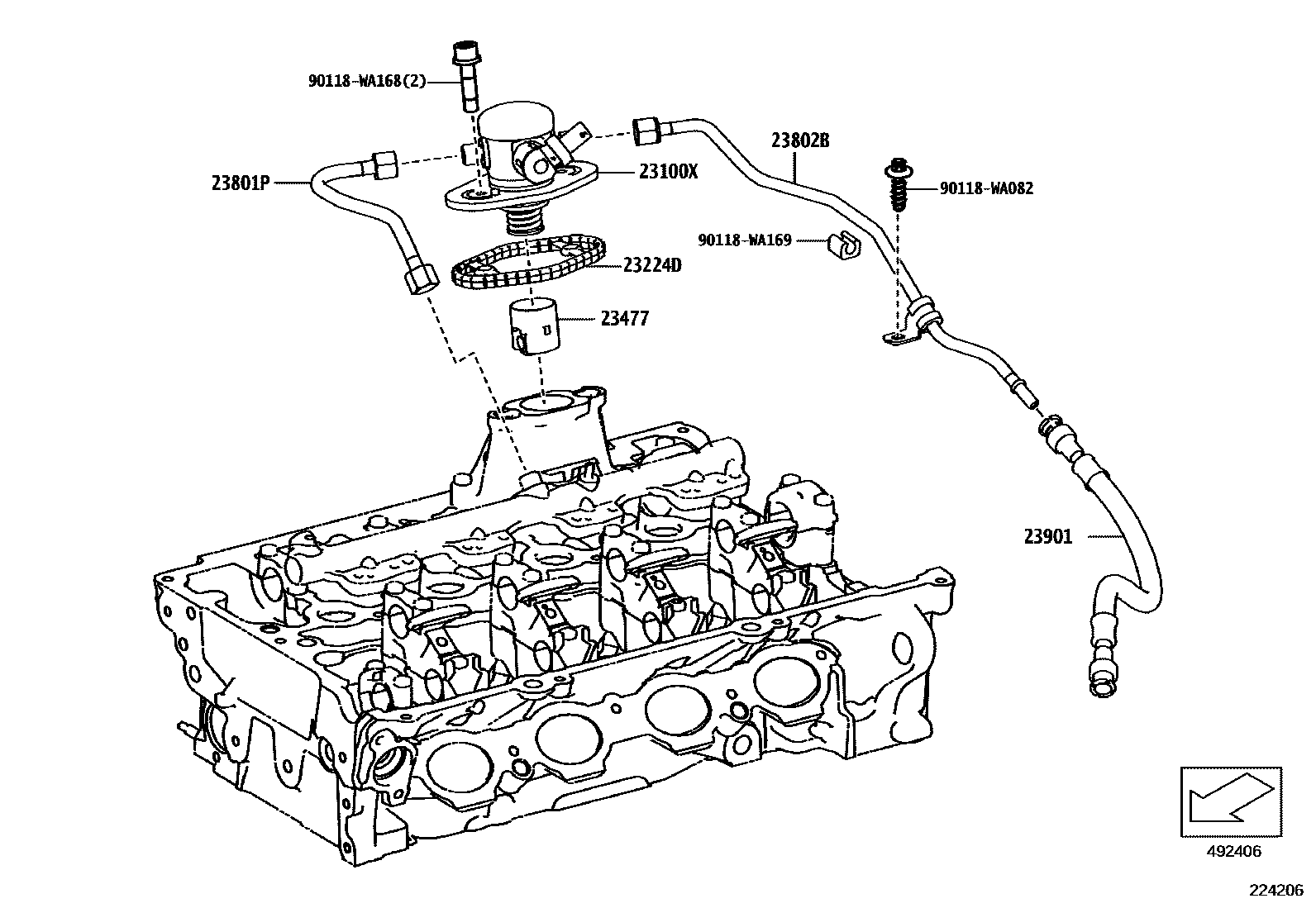

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23021-WAA01iB48#,B58#..DB0#,2#,4#,85202207

23224DGASKET, FUEL PUMP SPACER

main23224-WAA01iB48#,B58#..DB0#,2#,4#,85202207

23477GUIDE, FUEL PUMP LIFTER

main23470-WAA01iB48#,B58#..DB0#,2#,4#,85202207

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-WAA01iB48#..DB2#,85202207-202212

main23801-WAA03iB58#..DB0#,4#202207

main23801-WAA05iB48#..DB2#,85202212

23802BPIPE SUB-ASSY, FUEL, NO.2

main23801-WAA04iB48#,B58#..DB0#,2#,4#,85202207

23901TUBE SUB-ASSY, FUEL

main23901-WAA01iB48#,B58#..DB0#,2#,4#,85202207

90118WA082

main90118-WA082

90118WA168

main90118-WA168

90118WA169

main90118-WA169

9 parts on this diagram · 9 diagrams in section
