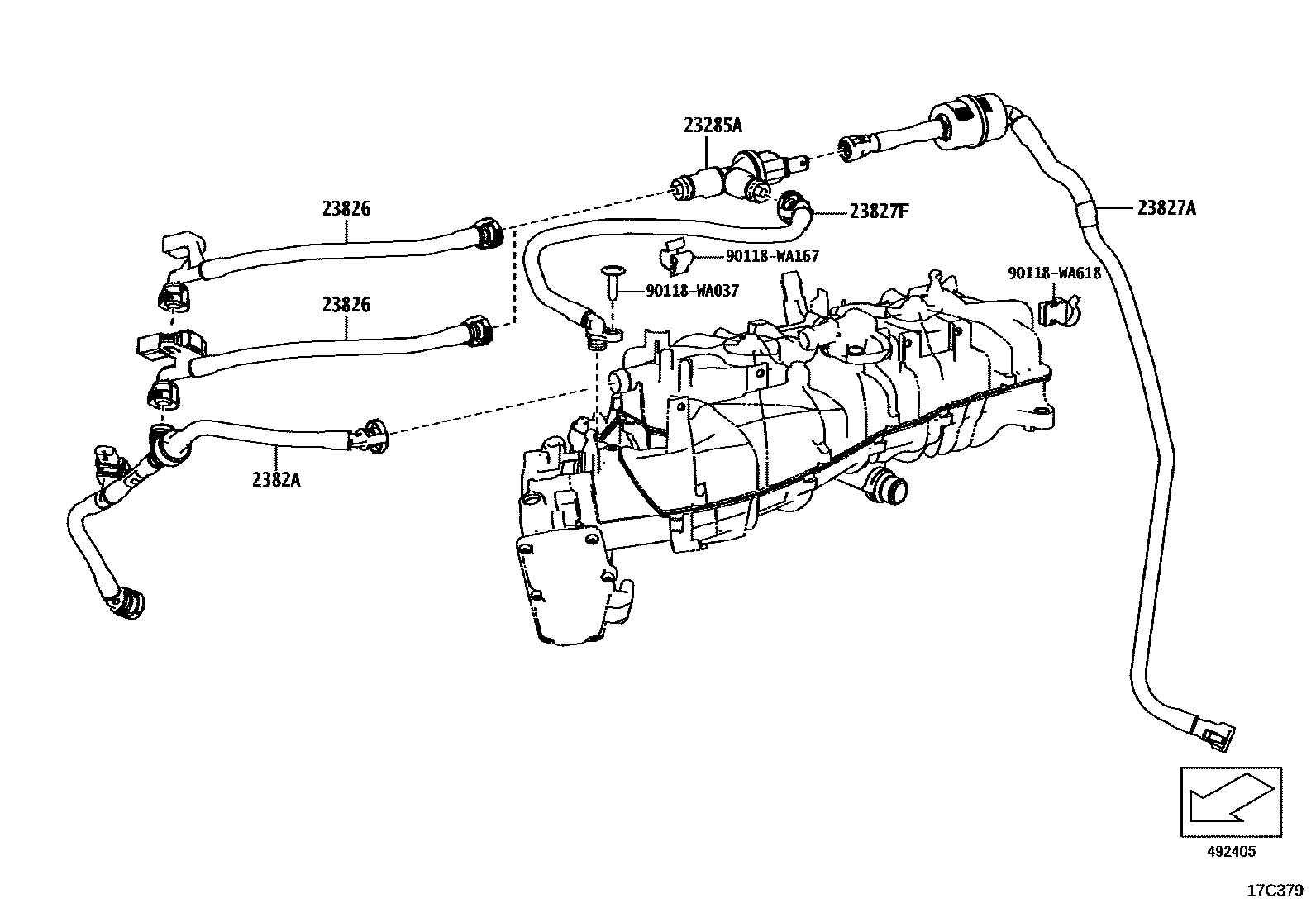

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1W(OPF)

23285AVALVE, CHECK, NO.1

main25748-WAA01iB48#,B58#..DB0#,2#,4#,85202207

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-WAA02iB48#..DB2#,85202207

main23826-WAA06iB58#..DB0#,4#202207

main23826-WAA07iB58H..DB06202207

CHINA SPEC

main23826-WAA07iB58H..DB06202207

KOREA SPEC

23827AHOSE, FUEL VAPOR FEED, NO.2

main23828-WAA01iB48#,B58#..DB0#,2#,4#,85202207

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-WAA01iB48#..DB2#,85202207

main23826-WAA08iB58#..DB0#,4#202207

2382AHOSE, FUEL VAPOR FEED, NO.4

main23826-WAA04iB48#..DB2#,85202207

main23826-WAA09iB58#..DB0#,4#202207

90118WA037

main90118-WA037

90118WA167

main90118-WA167

90118WA618

main90118-WA618

8 parts on this diagram · 4 diagrams in section
