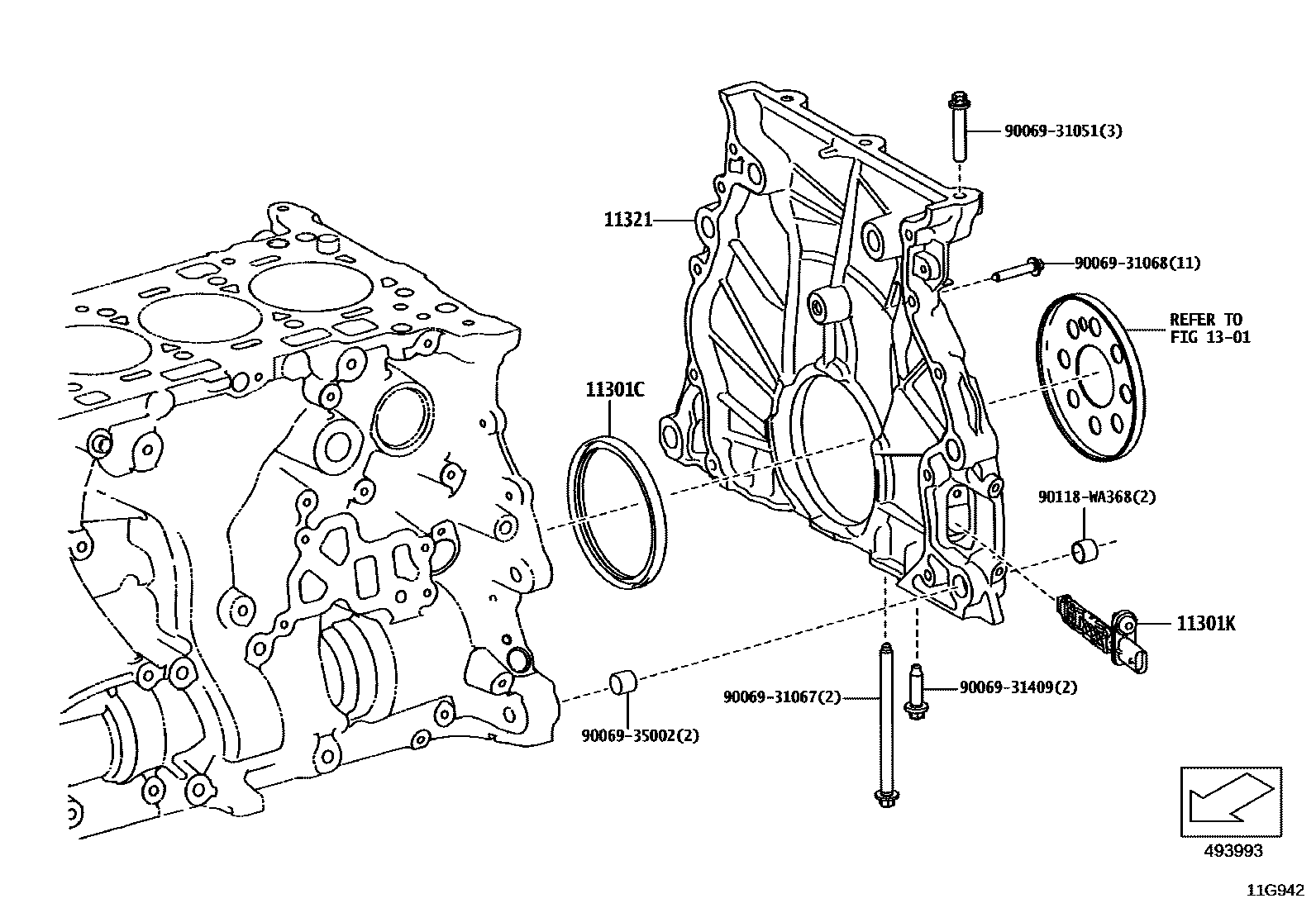

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90118-WA810iB48#,B58#..DB0#,2#,4#,85202207

11301KSENSOR, CRANK POSITION

main90118-WA390iB48#,B58#..DB0#,2#,4#,85202207

11321CASE, TIMING GEAR

main11321-WAA01iB48#,B58#..DB0#,2#,4#,85202207

1301

9006931051

main90069-31051

9006931067

main90069-31067

9006931068

main90069-31068

9006931409

main90069-31409

9006935002

main90069-35002

90118WA368

main90118-WA368

10 parts on this diagram · 3 diagrams in section
