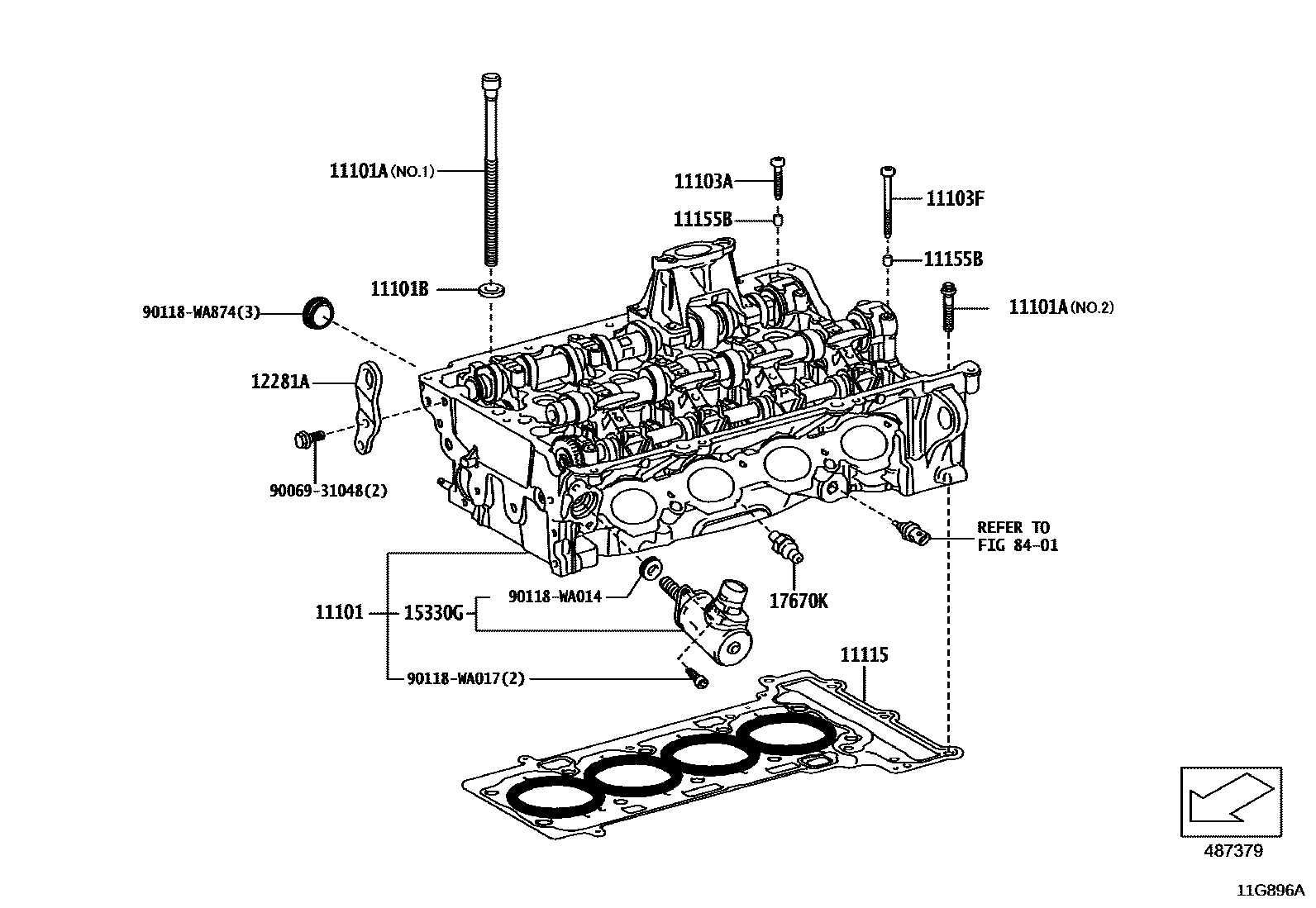

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

11101HEAD SUB-ASSY, CYLINDER

main11107-WAA02iB58..DB4#¥882,000202207

main11107-WAA03iB58H..DB0#¥894,000202207

main11107-WAA04iB48#..DB2#,85¥421,000202207

11101ABOLT(FOR CYLINDER HEAD SET)

main90069-31051iB48#,B58..DB2#,4#,85¥260202207

NO.2:REFER ILLUST.

main90118-WA011iB48#..DB2#,85¥1,140202207

NO.1:REFER ILLUST.

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90118-WA005iB48#..DB2#,85¥1,200202207

11103ABOLT(FOR CAMSHAFT HOUSING SET)

main90118-WA212iB48#..DB2#,85¥160202207

M6X35-8.8

main90118-WA766iB48#..DB2#,85¥280202207

M6X35-10.9

11103FBOLT(FOR CAMSHAFT HOUSING SET)

main90118-WA213iB48#..DB2#,85¥180202207

M6X65-8.8

main90118-WA765iB48#..DB2#,85¥300202207

M6X65-10.9

11115GASKET, CYLINDER HEAD

main11115-WAA01iB48#..DB2#,85¥21,700202207

T=0.80

main11115-WAA02iB48#..DB2#,85¥29,300202207

T=1.10

main11115-WAA03iB58#..DB0#,4#¥24,300202207

T=0.81

main11115-WAA04iB58#..DB0#,4#¥32,800202207

T=1.11

11155BPIN, RING

main90118-WA006iB48#..DB2#,85¥340202207

12281AHANGER, ENGINE, NO.1

main12281-WAA01iB48#,B58#..DB0#,2#,4#,85¥1,530202207

15330GMOTOR, SERVO

main15330-WAA01iB48#..DB2#,85¥66,400202207

main15330-WAA02iB58#..DB0#,4#¥66,400202207

17670KVALVE ASSY, AIR BY-PASS

main17670-WAA01iB48#,B58#..DB0#,2#,4#,85¥2,410202207

8401

9006931048

main90069-31048¥260

90118WA014

main90118-WA014¥4,210

90118WA017

main90118-WA017¥120

90118WA874

main90118-WA874¥1,020

15 parts on this diagram · 8 diagrams in section
