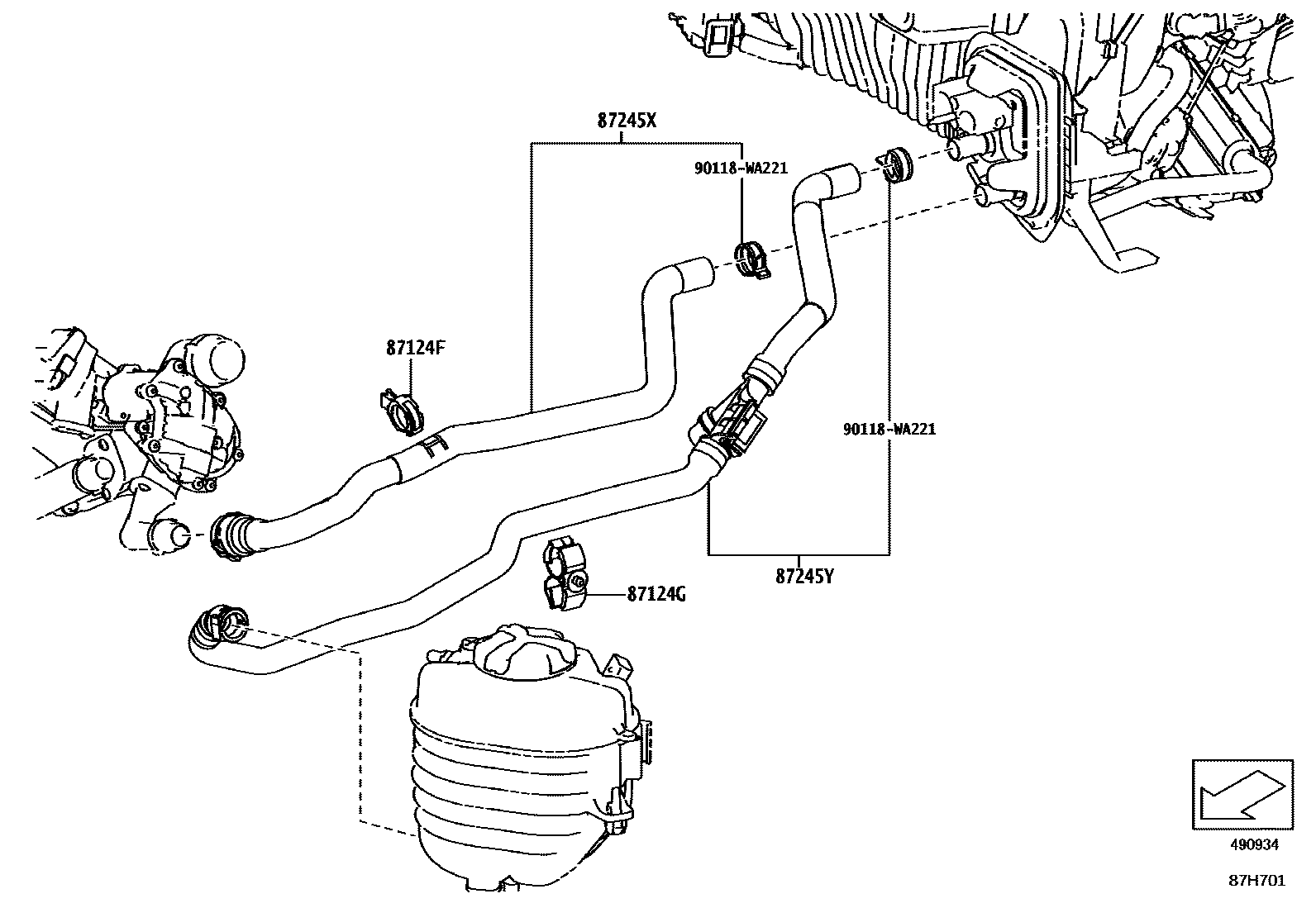

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87124FCLAMP, HEATER HOSE, NO.1

main16581-WAA01iDB4#201903

87124GCLAMP, HEATER HOSE, NO.2

main88718-WAA01iDB82201903-202006

87245XHOSE, HEATER WATER

main87245-WAA03iDB4#201903

main87245-WAA04iDB2#,81201903

87245YHOSE, HEATER WATER

main87245-WAA01iDB0#202003

main87245-WAA02iDB82201903-202006

90118WA221

main90118-WA221

5 parts on this diagram · 2 diagrams in section
