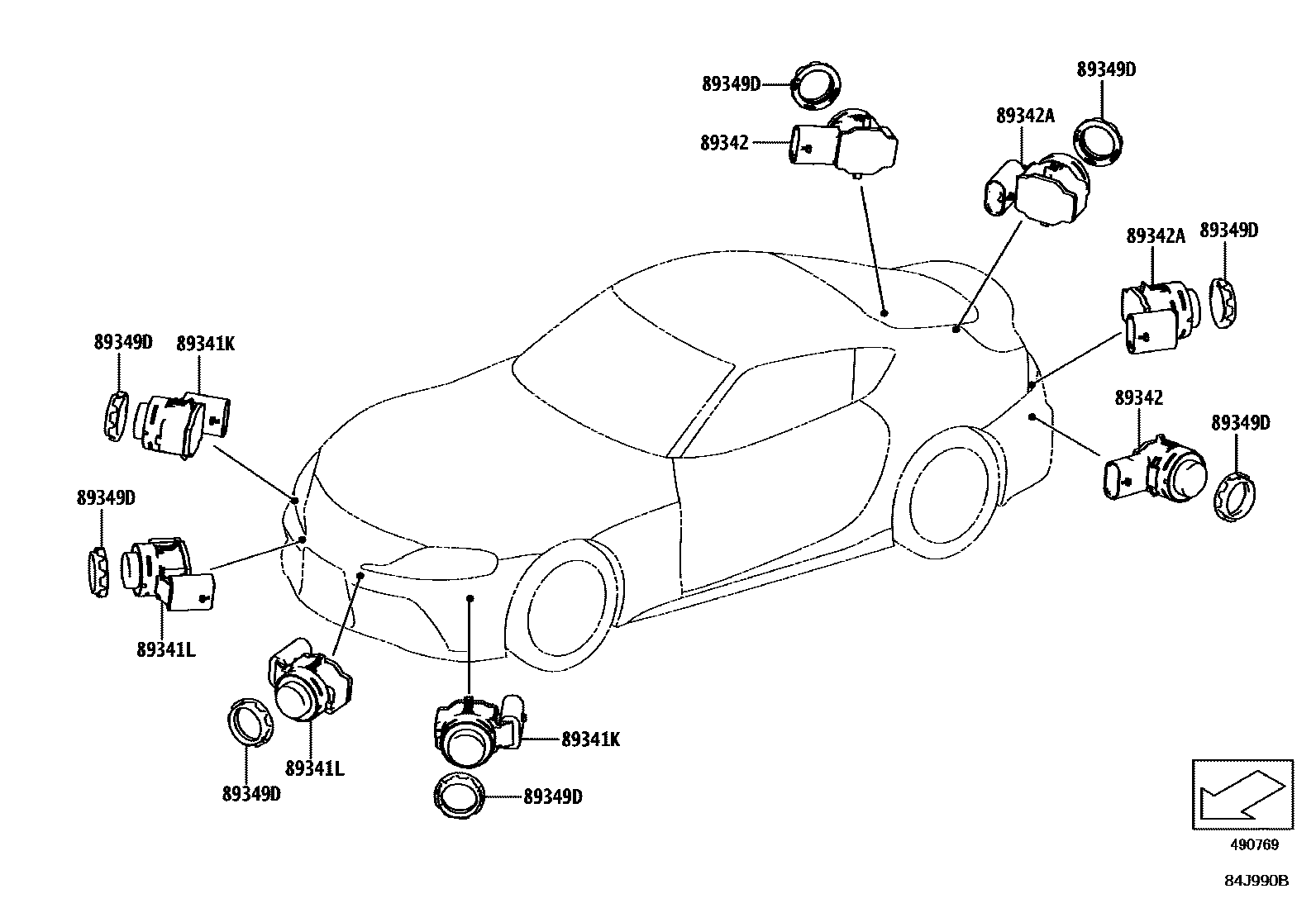

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-WAA05×2iDB82201903-202006

CLEARANCE & BACK SONAR-WITH,D04

main89341-WAA08×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,D01

main89341-WAA11×2iDB0#202003

CLEARANCE & BACK SONAR-WITH,blue-stone metallic,D03

main89341-WAA14×2iDB82201903-202006

CLEARANCE & BACK SONAR-WITH,D02

main89341-WAA17×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,mediterran-blau metallic,D07

main89341-WAA20×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,D05

main89341-WAA23×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,D06

main89341-WAA26×2iDB82201903-202006

CLEARANCE & BACK SONAR-WITH,D08

main89341-WAA30×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,D09

main89341-WAA35×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D07

main89341-WAA38×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D05

main89341-WAA41×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D06

main89341-WAA44×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D08

main89341-WAA47×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D09

main89341-WAA50×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D04

main89341-WAA54×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D01

main89341-WAA57×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D03

main89341-WAA60×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D02

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-WAA05×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,D04

main89341-WAA08×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,D01

main89341-WAA11×2iDB82201903-202006

CLEARANCE & BACK SONAR-WITH,blue-stone metallic,D03

main89341-WAA14×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,D02

main89341-WAA17×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,mediterran-blau metallic,D07

main89341-WAA20×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,D05

main89341-WAA23×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,D06

main89341-WAA26×2iDB82201903-202006

CLEARANCE & BACK SONAR-WITH,D08

main89341-WAA30×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,D09

main89341-WAA35×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D07

main89341-WAA38×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D05

main89341-WAA41×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D06

main89341-WAA44×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D08

main89341-WAA47×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D09

main89341-WAA50×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D04

main89341-WAA54×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D01

main89341-WAA57×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D03

main89341-WAA60×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D02

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-WAA04×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,D04

main89341-WAA07×2iDB82201903-202006

CLEARANCE & BACK SONAR-WITH,D01

main89341-WAA10×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,blue-stone metallic,D03

main89341-WAA13×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,D02

main89341-WAA16×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,mediterran-blau metallic,D07

main89341-WAA19×2iDB2#,4#,81201903-202205

CLEARANCE & BACK SONAR-WITH,D05

main89341-WAA22×2iDB0#202003-202205

CLEARANCE & BACK SONAR-WITH,D06

main89341-WAA25×2iDB82201903-202006

CLEARANCE & BACK SONAR-WITH,D08

main89341-WAA28×2iDB0#202003

CLEARANCE & BACK SONAR-WITH,D09

main89341-WAA34×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D07

main89341-WAA37×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D05

main89341-WAA40×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D06

main89341-WAA43×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D08

main89341-WAA46×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D09

main89341-WAA53×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D01

main89341-WAA56×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D03

main89341-WAA59×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D02

main89341-WAA62×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH,D04

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-WAA05×2iDB82201903-202006

CLEARANCE & BACK SONAR-WITH

main89341-WAA50×2iDB2#,4#,81202205

CLEARANCE & BACK SONAR-WITH

89349DRING, O (FOR ULTRASONIC SENSOR)

main89348-WAA01×12iDB82201903-202006

CLEARANCE & BACK SONAR-WITH

5 parts on this diagram · 3 diagrams in section
