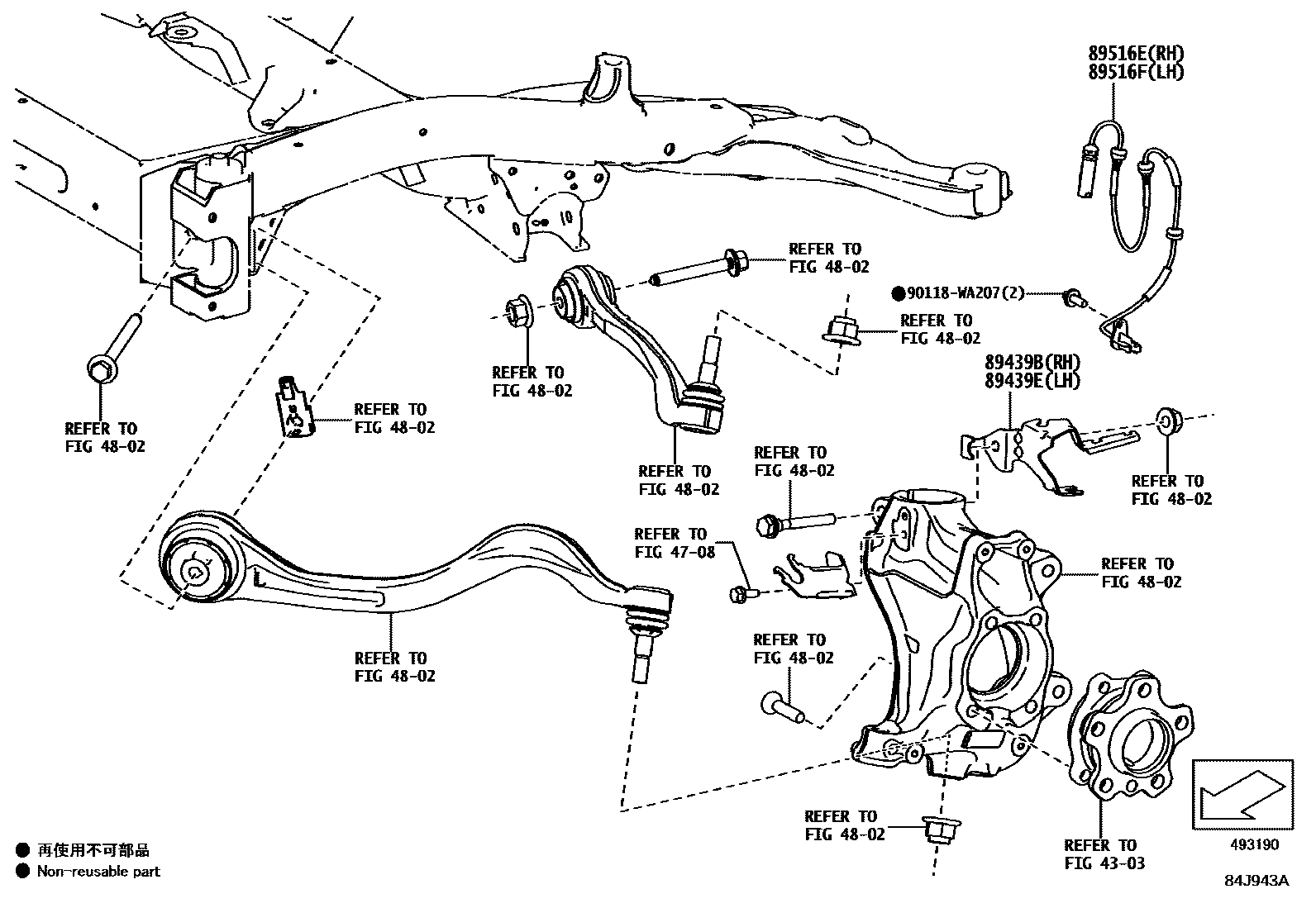

ABS & VSC

0001 1FRONT 0002 1REAR

4303FRONT AXLE HUB

→ Go to FIG 43-03

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

89439BBRACKET, SENSOR

main88266-WAA04iDB82201903-202006

89439EBRACKET, SENSOR, NO.2

main88266-WAA03iDB82201903-202006

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-WAA03iDB82201903-202006

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-WAA03iDB82201903-202006

90118WA207

main90118-WA207

8 parts on this diagram · 2 diagrams in section
