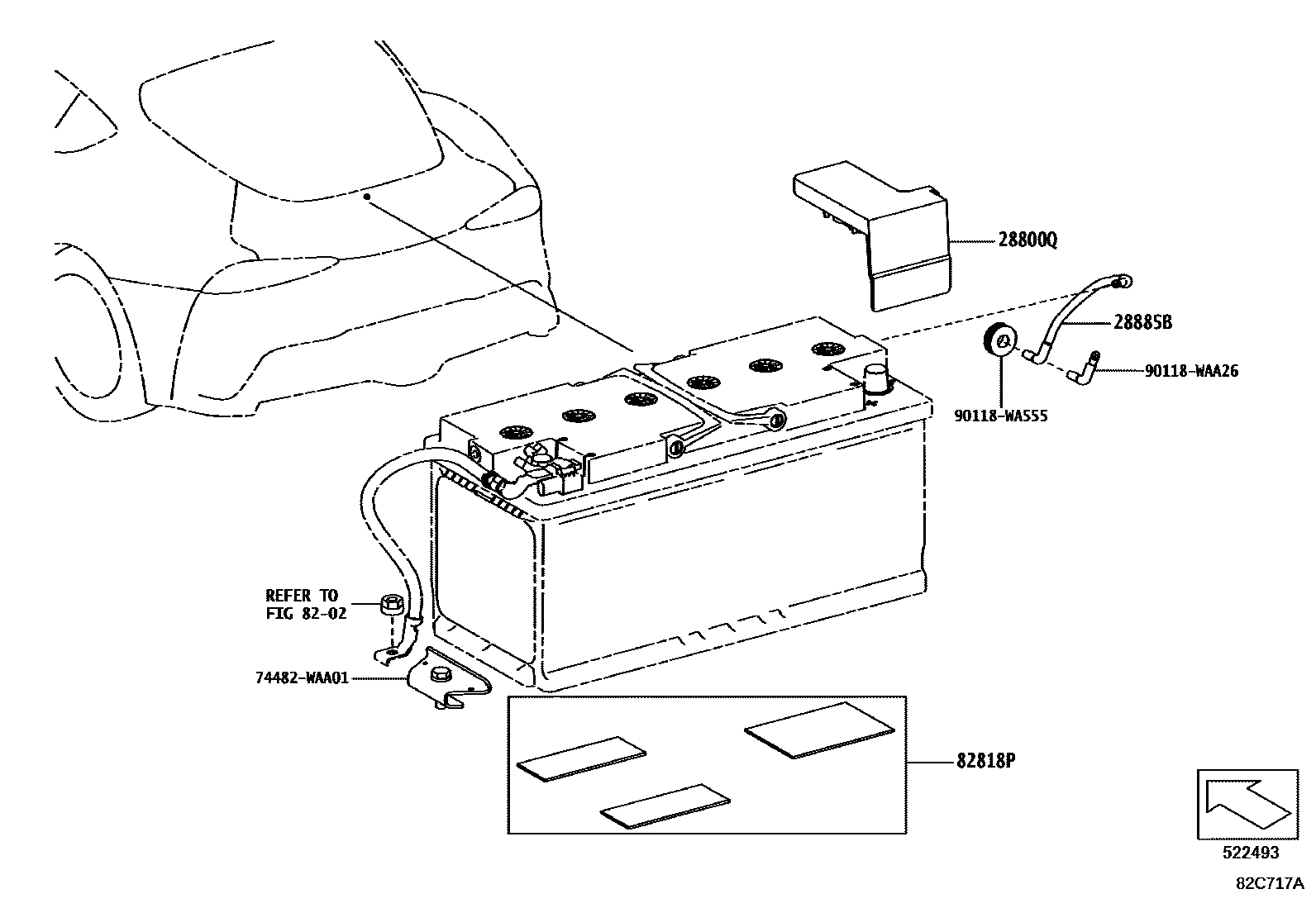

BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800BATTERY

main28800-WAA01iB58..DB4#201903-201906

90AH

sub28800-WAA08

main28800-WAA02iB48L..DB82201903-202006

80AH

main28800-WAA08iB58..DB4#201903

92AH

28800QCOVER, CONNECTOR(FOR BATTERY)

main82821-WAA02iB48L..DB82201903-202006

28885BHOSE, BATTERY

main28885-WAA01iB48L..DB82201903-202006

8202

82818PPROTECTOR, WIRING HARNESS

main90118-WA493iDB82201903-202006

74482WAA01CLAMP, BATTERY, NO.2

main74482-WAA01

90118WA555

main90118-WA555

90118WAA26

main90118-WAA26

8 parts on this diagram · 3 diagrams in section
