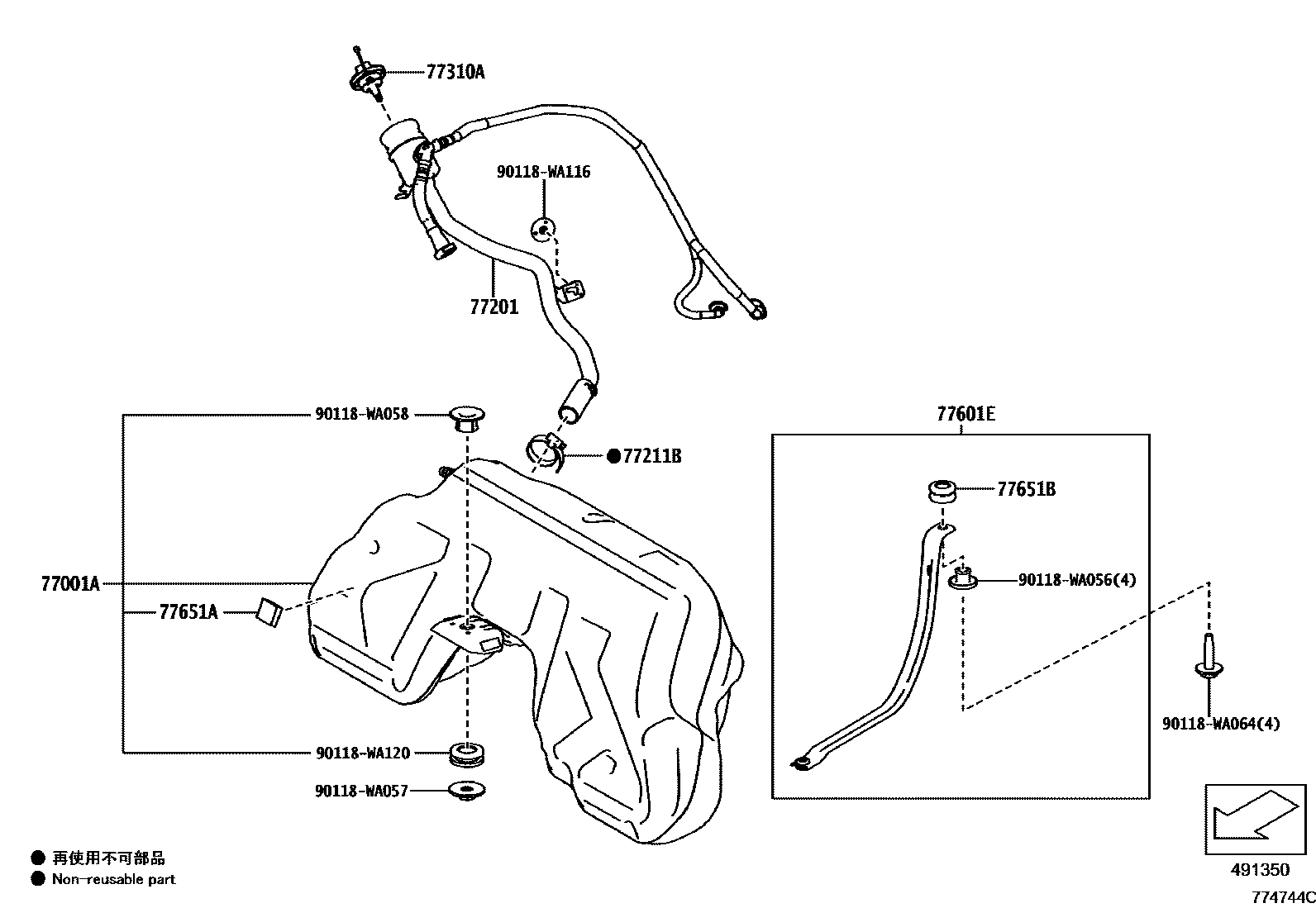

FUEL TANK & TUBE

0001 1 0002 1 0003 1KOREA SPEC OR UKRAINE SPEC 0004 1 0005 1UKRAINE SPEC 0006 1 0007 1

77001ATANK SUB-ASSY, FUEL

main77001-WAA01iDB82¥118,000201903-202006

77201PIPE SUB-ASSY, FUEL TANK INLET

main77210-WAA01iDB82¥48,400201903-202006

77211BCLAMP (FOR FUEL FILLER PIPE)

main90118-WA685iDB82¥340201903-202006

77310ACAP ASSY, FUEL TANK

main77300-WAA01iDB82¥3,570201903-202006

77601EBAND SUB-ASSY, FUEL TANK

main77601-WAA01iDB82¥8,000201903-202006

77651ACUSHION, FUEL TANK, NO.1

main77651-WAA01iDB82¥1,120201903-202006

77651BCUSHION, FUEL TANK

main77656-WAA01iDB82¥420201903-202006

90118WA056

main90118-WA056¥460

90118WA057

main90118-WA057¥420

90118WA058

main90118-WA058¥610

90118WA064

main90118-WA064¥240

90118WA116

main90118-WA116¥80

90118WA120

main90118-WA120¥1,390

13 parts on this diagram · 7 diagrams in section
