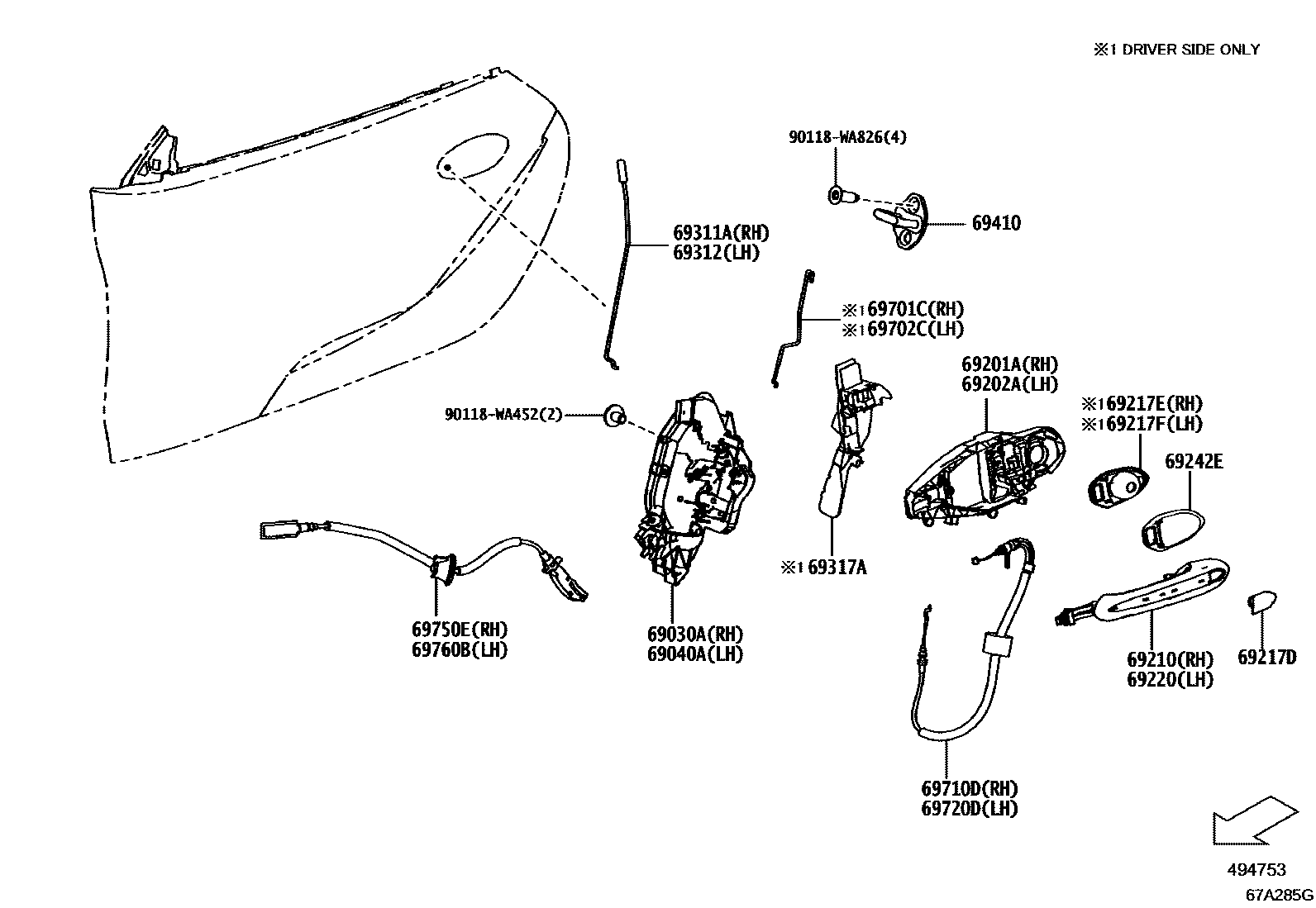

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
D05
D06
D04
D02
D01
mediterran-blau metallic,D07
blue-stone metallic,D03
D08
NO PAINT REQ.,D04
NO PAINT REQ.,D02
NO PAINT REQ.,D01
NO PAINT REQ.,mediterran-blau metallic,D07
NO PAINT REQ.,blue-stone metallic,D03
NO PAINT REQ.,D08
NO PAINT REQ.,D05
NO PAINT REQ.,D06
D09
NO PAINT REQ.,D02
NO PAINT REQ.,mediterran-blau metallic,D07
NO PAINT REQ.,blue-stone metallic,D03
NO PAINT REQ.,D09
NO PAINT REQ.,D08
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.,D05
NO PAINT REQ.,D06
NO PAINT REQ.,D04
NO PAINT REQ.,D02
NO PAINT REQ.,D01
NO PAINT REQ.,mediterran-blau metallic,D07
NO PAINT REQ.,blue-stone metallic,D03
NO PAINT REQ.,D08
D04
D02
D01
mediterran-blau metallic,D07
blue-stone metallic,D03
D08
D05
D06
NO PAINT REQ.,D09
D02
D01
mediterran-blau metallic,D07
blue-stone metallic,D03
D09
D05
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
90118WA452
main90118-WA452
90118WA826
main90118-WA826
22 parts on this diagram · 2 diagrams in section
