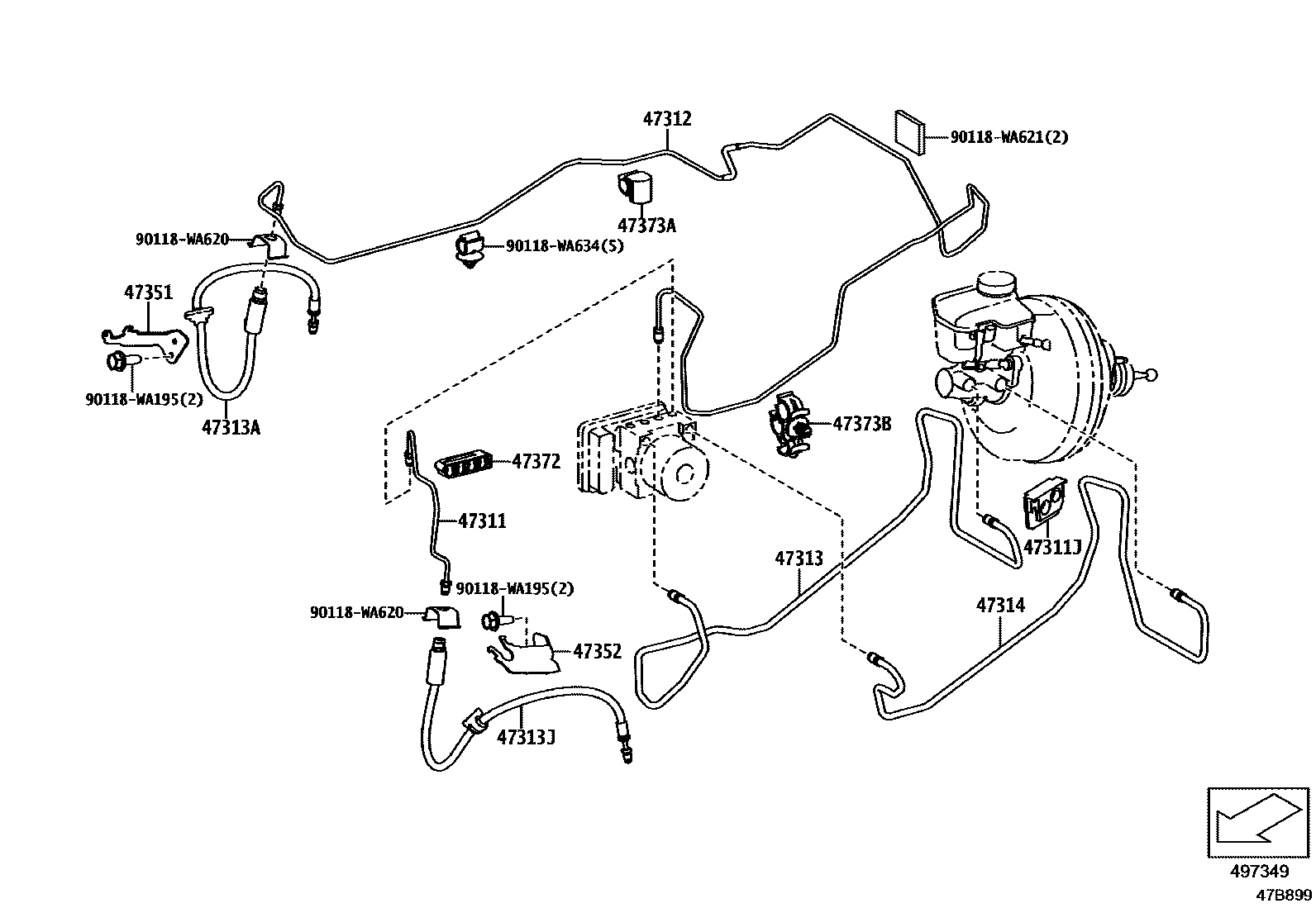

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

47311TUBE, FRONT BRAKE, NO.1

main47311-WAA02iDB82201903-202006

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90118-WA639iDB82201903-202006

main90118-WA640iDB82201903-202006

###

47312TUBE, FRONT BRAKE, NO.2

main47312-WAA02iDB82201903-202006

47313TUBE, FRONT BRAKE, NO.3

main47313-WAA03iDB82201903-202006

main47313-WAA04iDB21,41,81201903

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90118-WA635iDB2#,4#,81201903-202006

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90118-WA635iDB2#,4#,81201903-202006

47314TUBE, FRONT BRAKE, NO.4

main47314-WAA03iDB82201903-202006

main47314-WAA04iDB21,41,81201903

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-WAA01iDB82201903-202006

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-WAA01iDB82201903-202006

47372CLAMP, BRAKE TUBE, NO.2

main90118-WA623iDB82201903-202006

47373ABRACKET, TUBE CLAMP

main90118-WA628iDB21,41,81201903

47373BCLAMP, BRAKE TUBE, NO.3

main90118-WA641iDB82201903-202006

90118WA195

main90118-WA195

90118WA620

main90118-WA620

90118WA621

main90118-WA621

90118WA634

main90118-WA634

16 parts on this diagram · 5 diagrams in section
