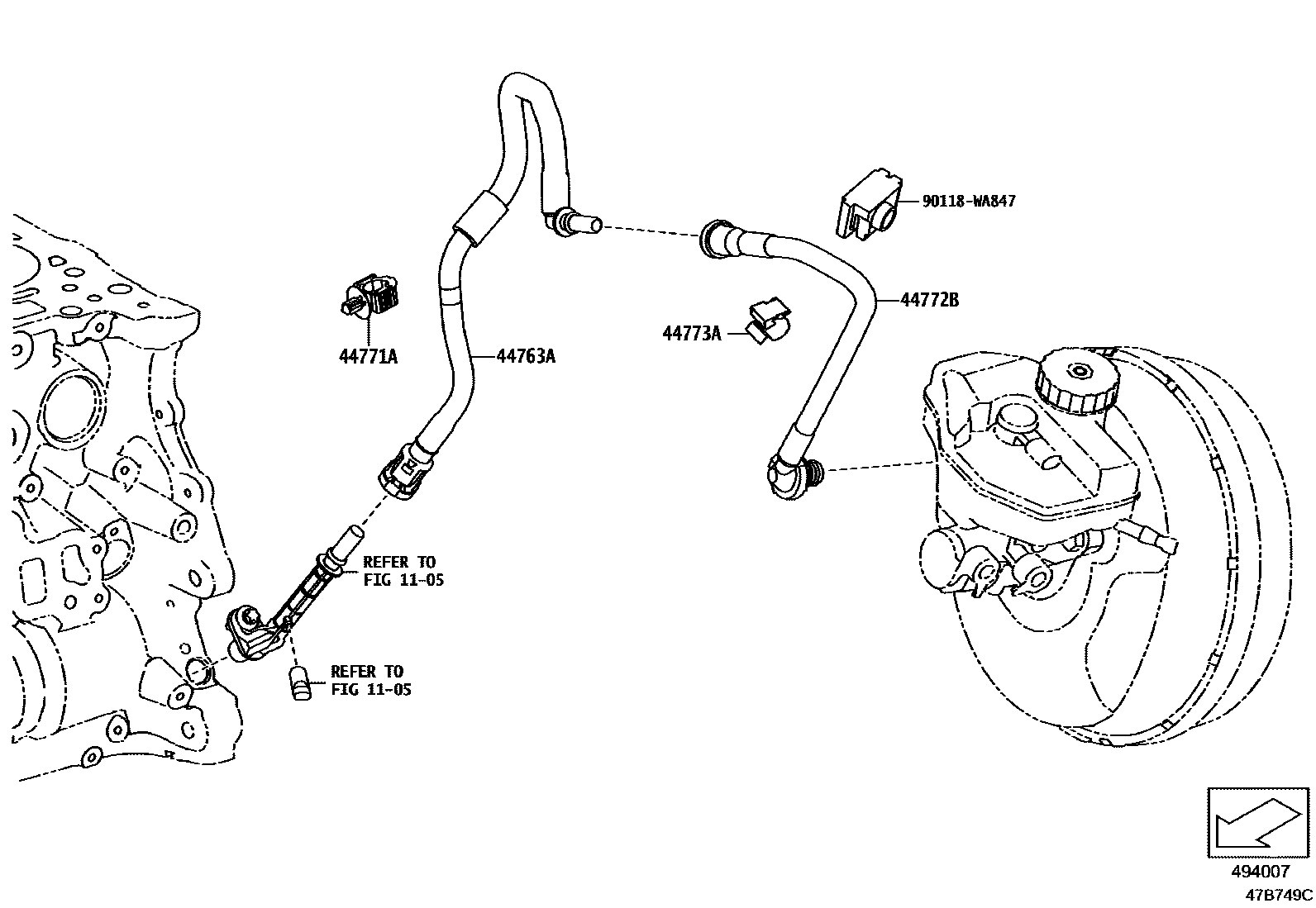

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1105

44763ATUBE, HOSE TO HOSE, NO.1

main44763-WAA02iDB82201903-202006

44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)

main90118-WA333iDB0#201903-202006

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44771-WAA02iDB82201903-202006

main44771-WAA03iDB21,41,81201903

44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)

main90118-WA167iDB82201903-202006

90118WA847

main90118-WA847

6 parts on this diagram · 5 diagrams in section
