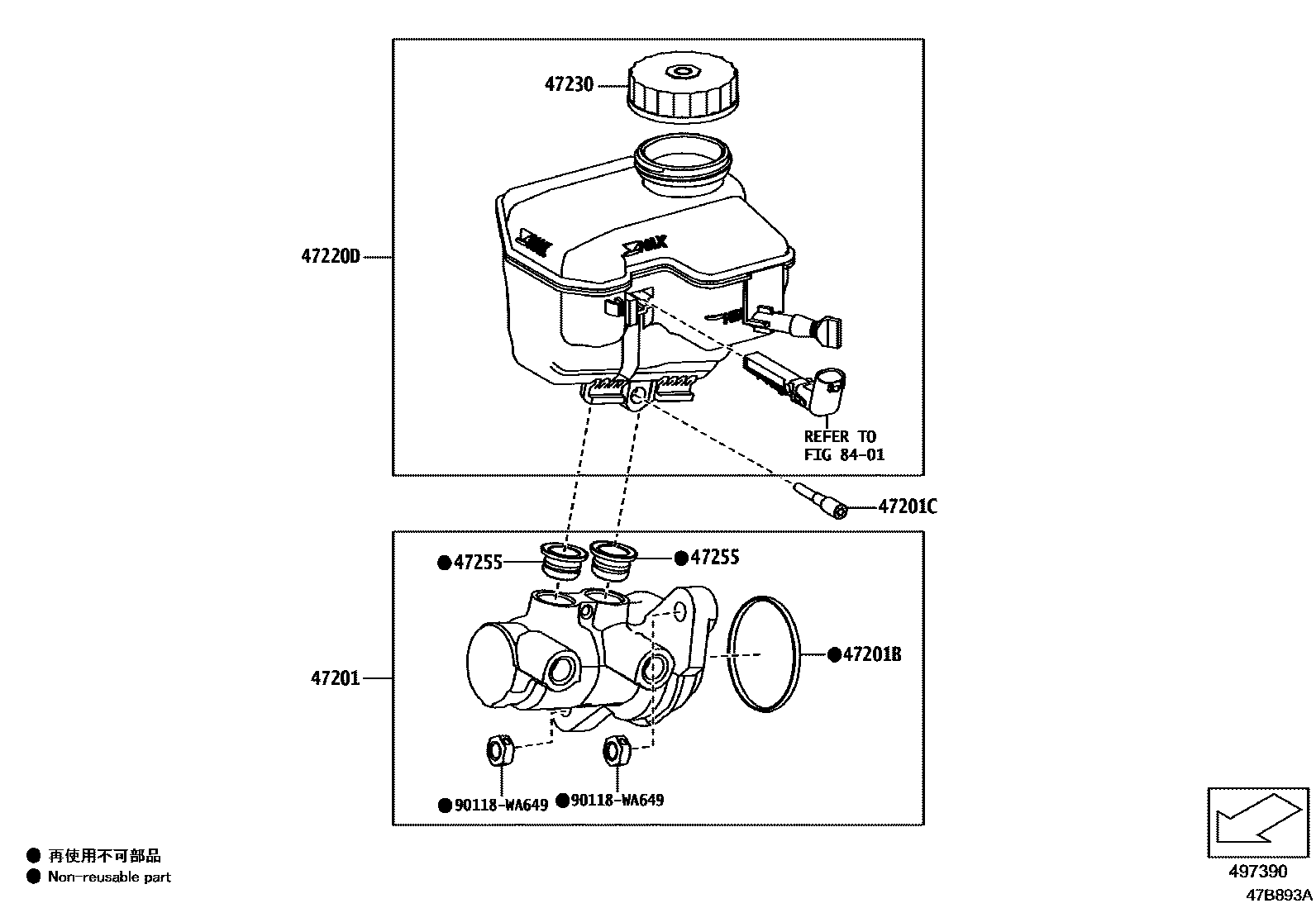

BRAKE MASTER CYLINDER

0001 1 0002 1

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-WAA01iDB82201903-202006

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90118-WA625iDB82201903-202006

47201CRING PIN, BRAKE MASTER CYLINDER

main90118-WA631iDB82201903-202006

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-WAA01iDB82201903-202006

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-WAA01iDB82201903-202006

47255GROMMET, MASTER CYLINDER RESERVOIR

main90118-WA624iDB82201903-202006

8401

90118WA649

main90118-WA649

8 parts on this diagram · 2 diagrams in section
