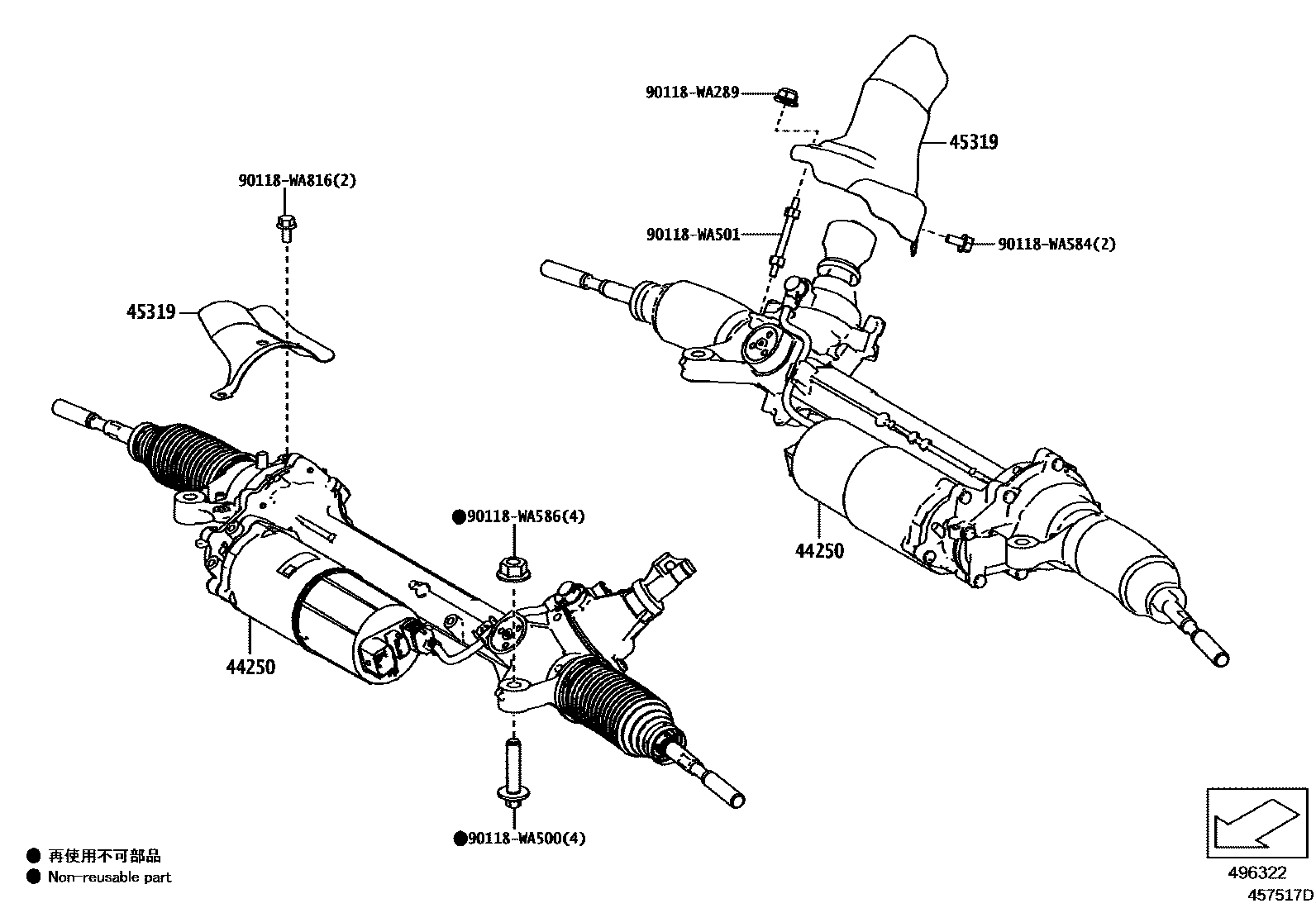

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-WAA01iDB21,41,81201903-201907

sub44250-WAA08

main44250-WAA07iDB22,42,82201903-202003

sub44250-WAA14

main44250-WAA08iDB21,41,81201908-201911

sub44250-WAA09

main44250-WAA10iDB21,41,81202003-202007

sub44250-WAA12

main44250-WAA12iDB21,41,81202007-202008

sub44250-WAA15

main44250-WAA13iDB02202007-202008

sub44250-WAA16

main44250-WAA14iDB02202003-202007

sub44250-WAA13

main44250-WAA15iDB01202008-202011

sub44250-WAA17

main44250-WAA16iDB22,42202009-202011

sub44250-WAA18

main44250-WAA17iDB21,41,81202012-202103

sub44250-WAA19

main44250-WAA18iDB02202012-202103

sub44250-WAA20

main44250-WAA19iDB21,41,81202104-202107

sub44250-WAA21

main44250-WAA20iDB02202104-202107

sub44250-WAA22

main44250-WAA21iDB01202104-202107

sub44250-WAA23

main44250-WAA23iDB01202108-202111

##

sub44250-WAA25

main44250-WAA24iDB22,42202108

##

sub44250-WAA26

main44250-WAA25iDB01201903-202203

sub44250-WAA27

main44250-WAA26iDB02201903-202203

sub44250-WAA28

45319INSULATOR, STEERING GEAR HEAT

main45254-WAA01iDB02201903-202006

main45529-WAA01iDB41201903

90118WA289

main90118-WA289

90118WA500

main90118-WA500

90118WA501

main90118-WA501

90118WA584

main90118-WA584

90118WA586

main90118-WA586

90118WA816

main90118-WA816

8 parts on this diagram · 2 diagrams in section
