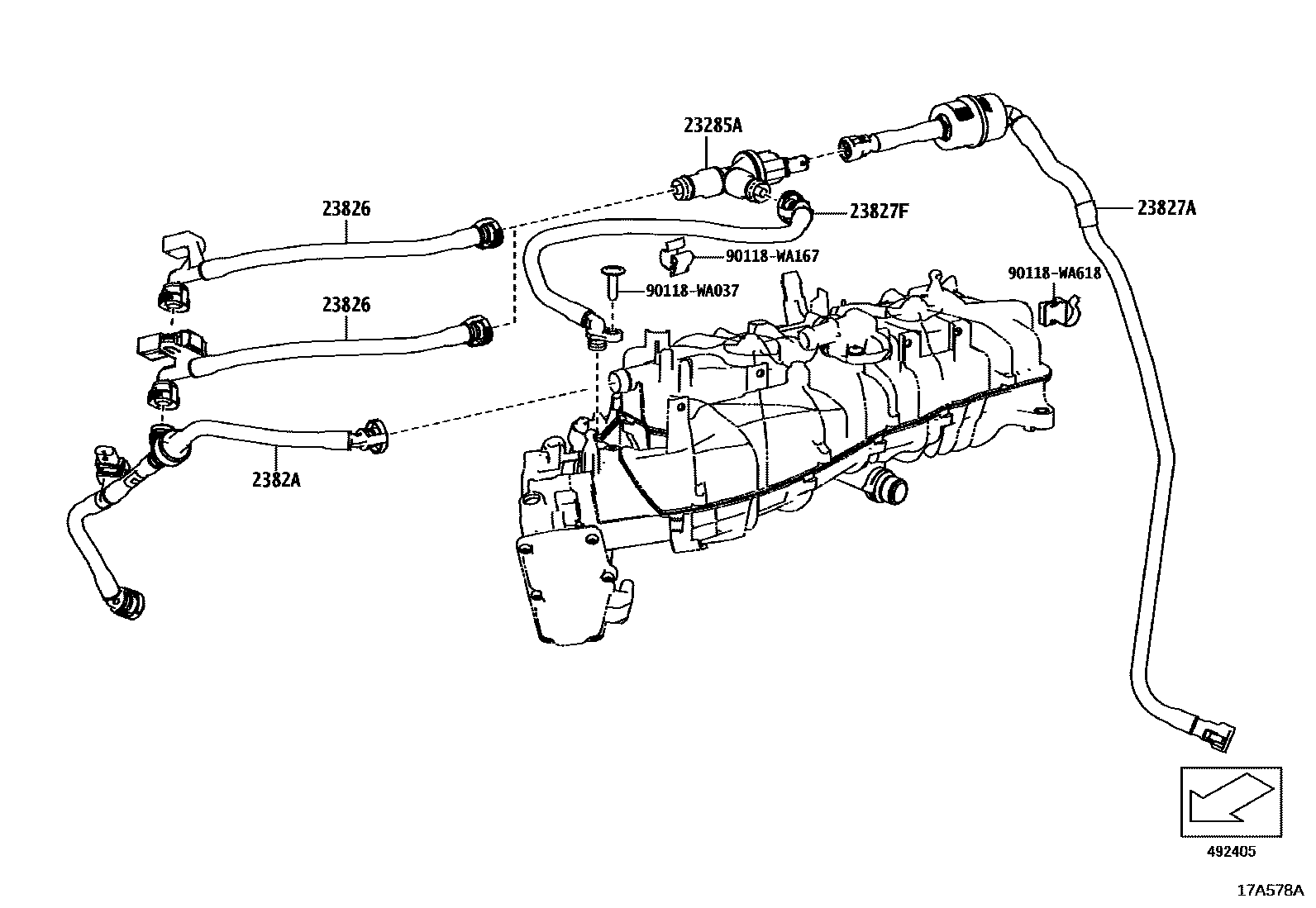

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1W(OPF)

23285AVALVE, CHECK, NO.1

main25748-WAA01iB48L..DB82201903-202006

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-WAA02iB48H..DB2#201903-202103

main23826-WAA06iB58..DB42201903-202103

23827AHOSE, FUEL VAPOR FEED, NO.2

main23828-WAA01iB58H..DB0#201903-202006

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-WAA01iB48L..DB82201903-202006

main23826-WAA08iB58H..DB0#201903

2382AHOSE, FUEL VAPOR FEED, NO.4

main23826-WAA04iB48H..DB2#201903-202103

main23826-WAA09iB58..DB41201903-202103

90118WA037

main90118-WA037

90118WA167

main90118-WA167

90118WA618

main90118-WA618
