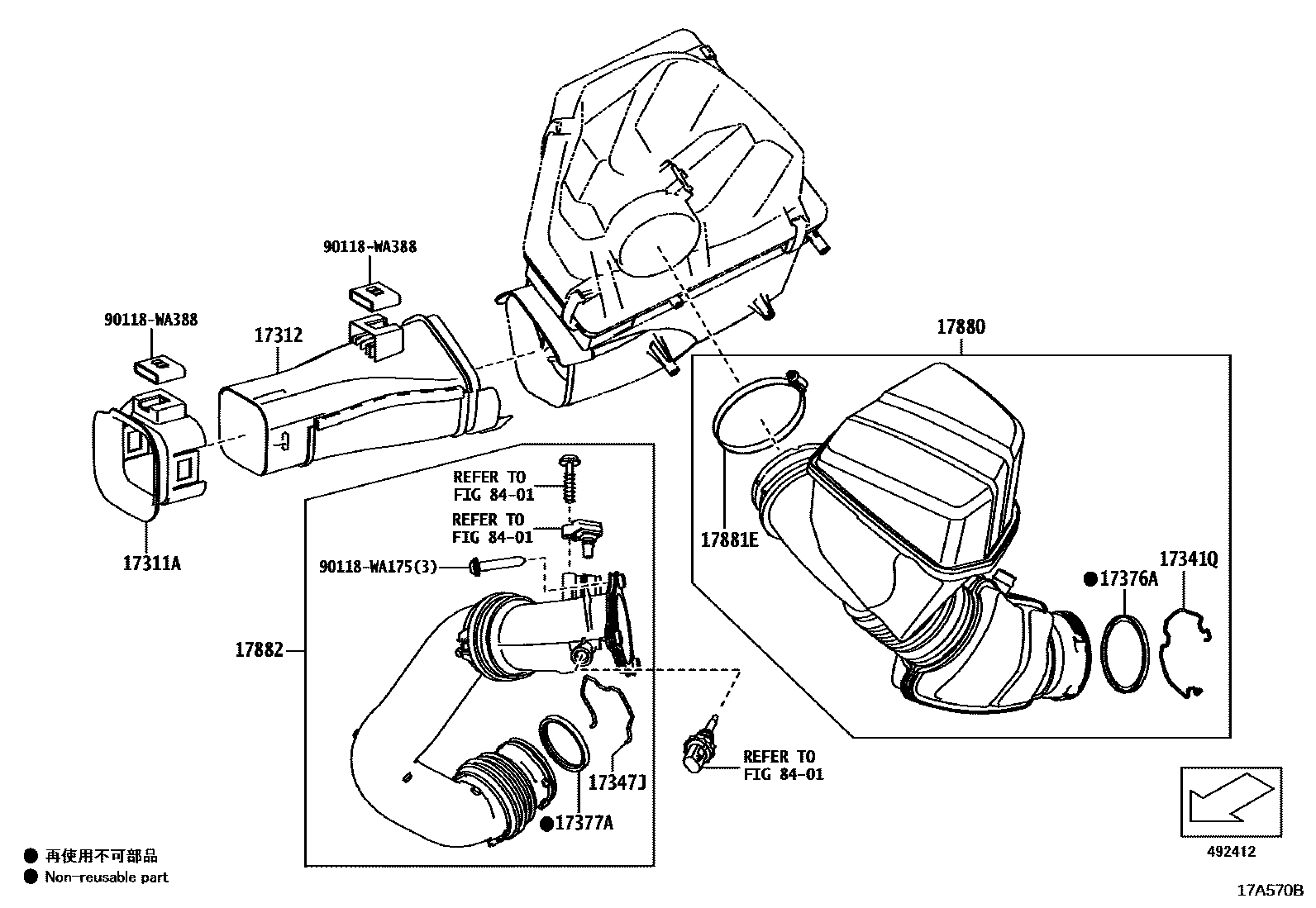

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

17311ADUCT, AIR INLET, NO.1

main17752-WAA01iB48#,B58..DB2#,4#,81201903-202006

17312DUCT, AIR INLET, NO.2

main17751-WAA01iB48L..DB82201903-202006

17341QCLIP, AIR HOSE, NO.1

main90118-WA173iB48L..DB82201903-202006

main90118-WA187iB58..DB4#201903

17347JCLIP, AIR HOSE

main90118-WA174iB48L..DB82201903-202006

main90118-WA186iB58..DB4#201903

17376AGASKET, AIR TUBE

main17376-WAA01iB48L..DB82201903-202006

main17376-WAA02iB58..DB4#201903

17377AGASKET, AIR TUBE, NO.2

main17376-WAA03iB48L..DB82201903-202006

main17376-WAA04iB58..DB4#201903

17880HOSE ASSY, AIR CLEANER

main17881-WAA02iB58..DB4#201903

main17881-WAA03iB48#..DB2#,81201903-202006

17881ECLAMP, AIR CLEANER HOSE, NO.1

main90118-WA694iB48L..DB82201903-202006

17882HOSE, AIR CLEANER, NO.2

main17882-WAA01iB48L..DB82201903-202006

main17882-WAA02iB58..DB4#201903

8401

90118WA175

main90118-WA175

90118WA388

main90118-WA388

12 parts on this diagram · 5 diagrams in section
