MOUNTING

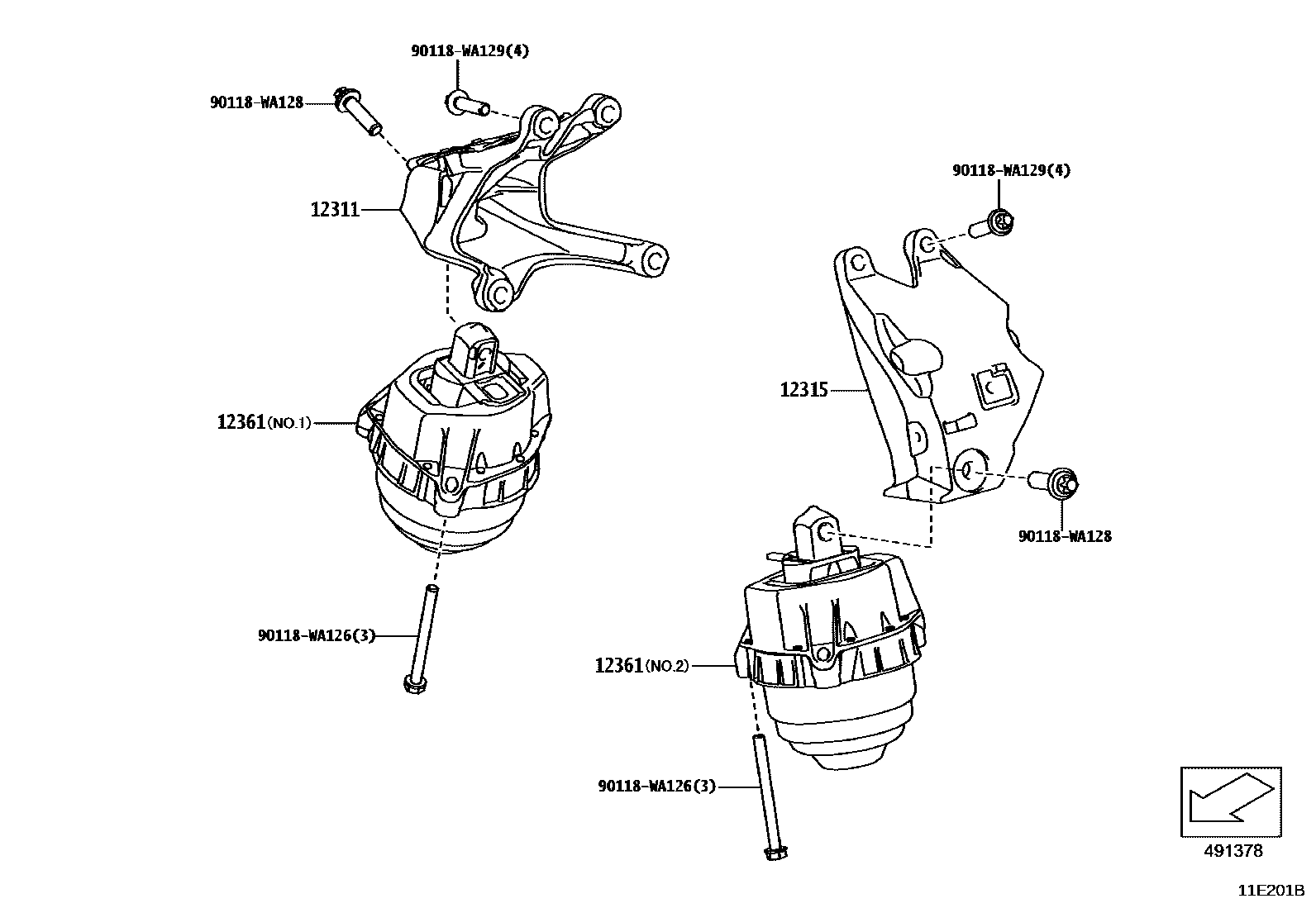

Parts diagram
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
main12311-WAA01i201903
main12311-WAA02i201903
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
main12315-WAA01i202003
main12315-WAA02i201906-202006
12361INSULATOR, ENGINE MOUNTING, FRONT
main12361-WAA01i201903
NO.1:REFER ILLUST.
main12361-WAA02i201903-201906
NO.1:REFER ILLUST.
main12361-WAA03i201906-202006
NO.1:REFER ILLUST.
main12362-WAA01i202003
NO.2:REFER ILLUST.
main12362-WAA02i201903-201906
NO.2:REFER ILLUST.
main12362-WAA03i201906
NO.2:REFER ILLUST.
90118WA126
main90118-WA126
90118WA128
main90118-WA128
90118WA129
main90118-WA129

6 parts on this diagram · 3 diagrams in section
