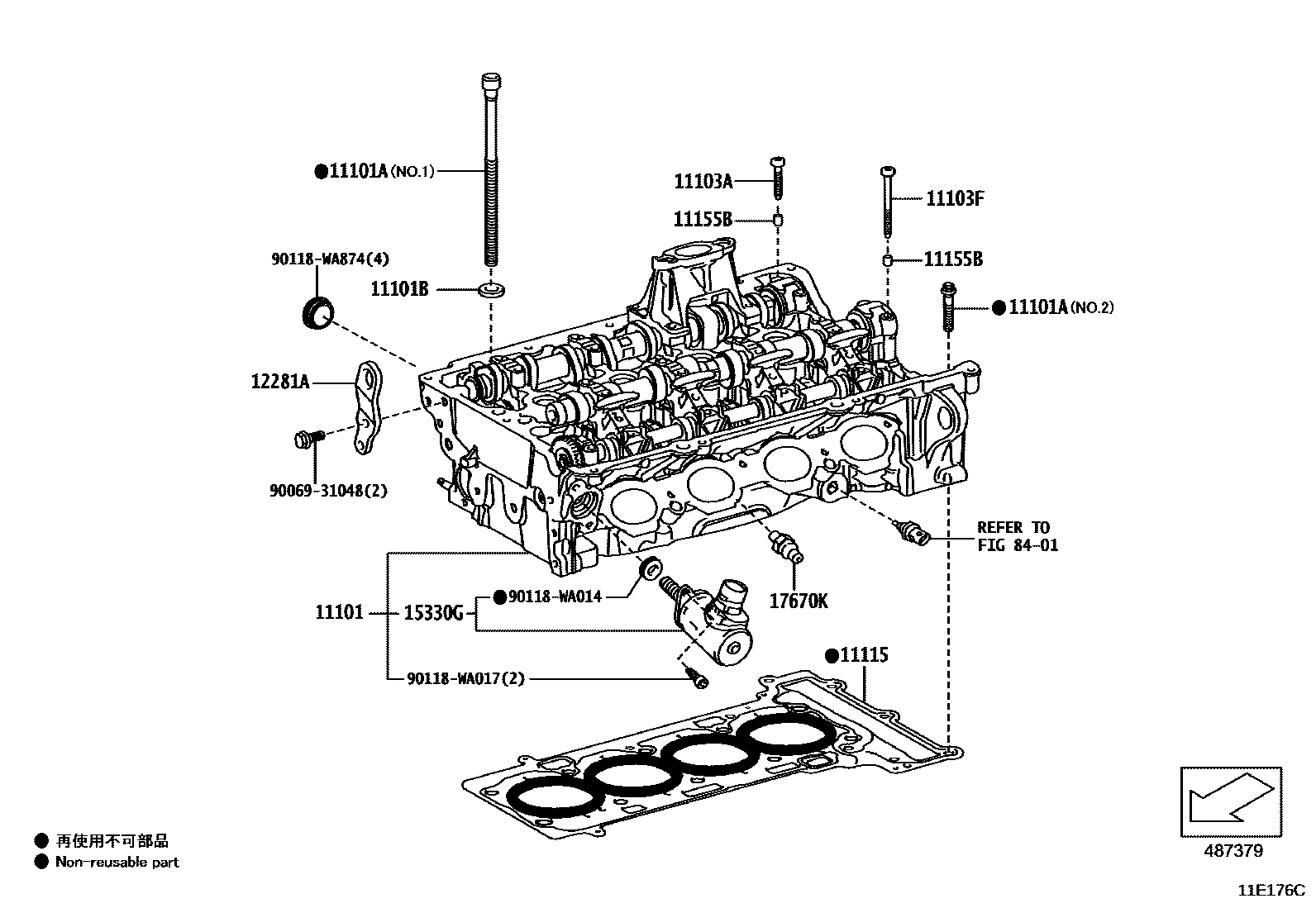

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11103ABOLT(FOR CAMSHAFT HOUSING SET)
##
11103FBOLT(FOR CAMSHAFT HOUSING SET)
M6X65-8.8
M6X65-10.9
11115GASKET, CYLINDER HEAD
T=0.80
T=1.10
T=0.81
T=1.11
11155BPIN, RING
12281AHANGER, ENGINE, NO.1
15330GMOTOR, SERVO
17670KVALVE ASSY, AIR BY-PASS
8401
9006931048
90118WA014
90118WA017
90118WA874
15 parts on this diagram · 9 diagrams in section
