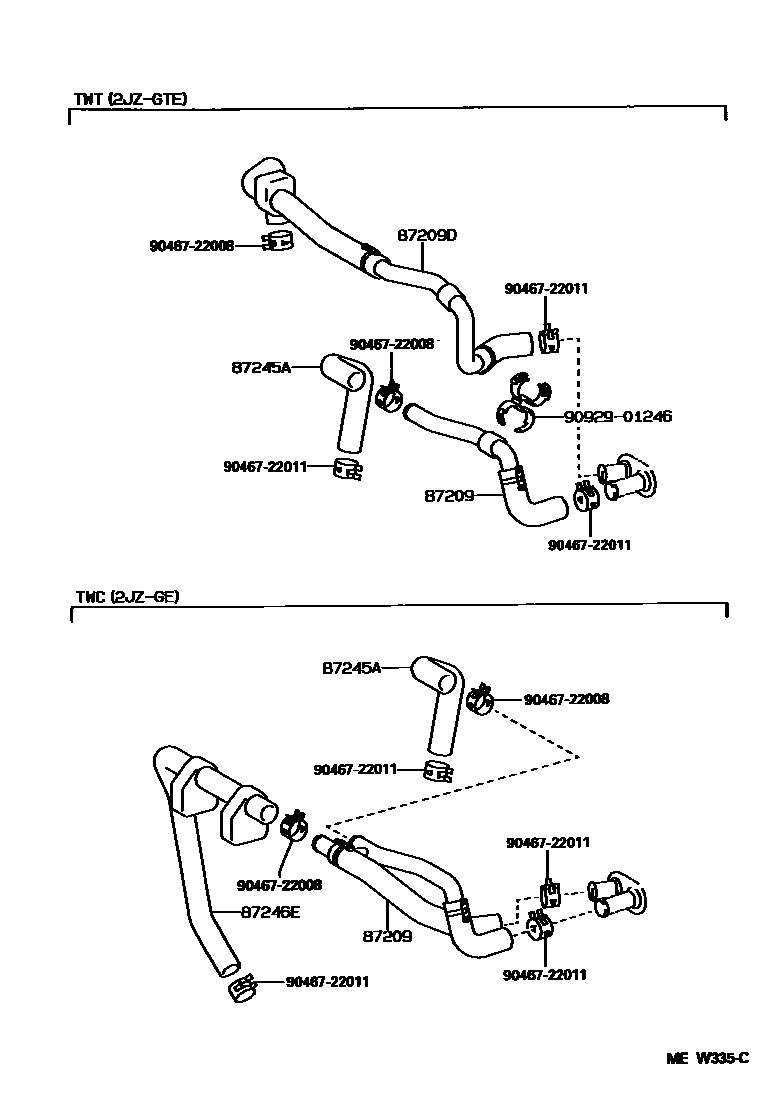

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87209HOSE SUB-ASSY, WATER

main87209-14800iJZA80..RHD..EUR199305-199601

main87209-14820iJZA80..RHD..GEN199305-199408

main87209-14840iJZA80..LHD..EUR199305-199601

main87209-14850iJZA80..LHD..(GCC,GEN)199305-199605

87209DHOSE SUB-ASSY, WATER, D

main87209-14810iJZA80..RHD..EUR199305-199601

87245AHOSE, HEATER WATER, INLET A

main87245-1B300iJZA80..RHD199305-199601

main87245-1B320iJZA80..LHD..EUR199305-199601

main87245-1B340iJZA80..LHD..(GCC,GEN)199305-199605

87246EHOSE, HEATER WATER, OUTLET E

main87245-1B310iJZA80..LHD..(GCC,GEN)199305-199605

main87245-1B330iJZA80..LHD..EUR199305-199601

main87245-1B350iJZA80..RHD..GEN199305-199408

9046722008

main90467-22008

9046722011

main90467-22011

9092901246

main90929-01246

7 parts on this diagram · 2 diagrams in section
