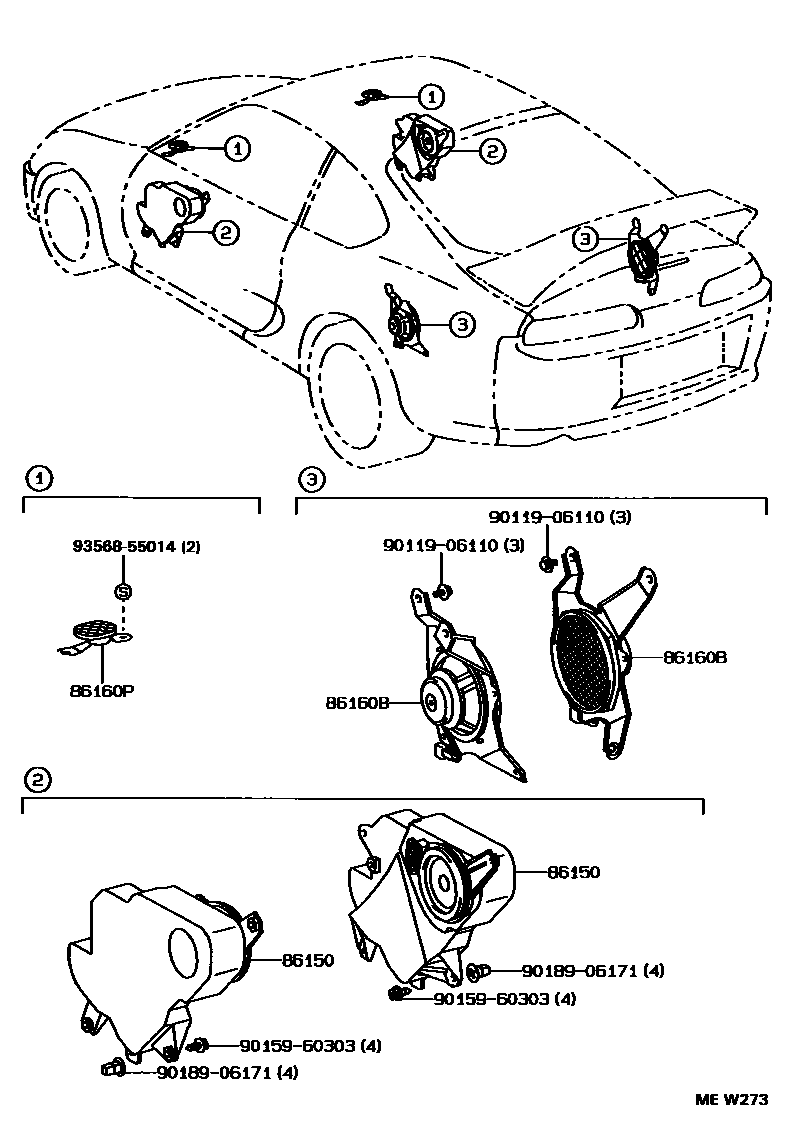

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-14120iJZA80199305-199508

RH

main86150-14121iJZA80199508-199605

RH

main86150-14130iJZA80199305-199508

LH

main86150-14131iJZA80199508-199605

LH

86160BSPEAKER ASSY, REAR

main86160-14340iJZA80199305-199605

RH

sub86160-14360

main86160-14350iJZA80199305-199605

LH

sub86160-14370

86160PSPEAKER ASSY, FRONT NO.2

main86160-14330×2iJZA80199305-199605

9011906110

main90119-06110

9015960303

main90159-60303

9018906171

main90189-06171

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
