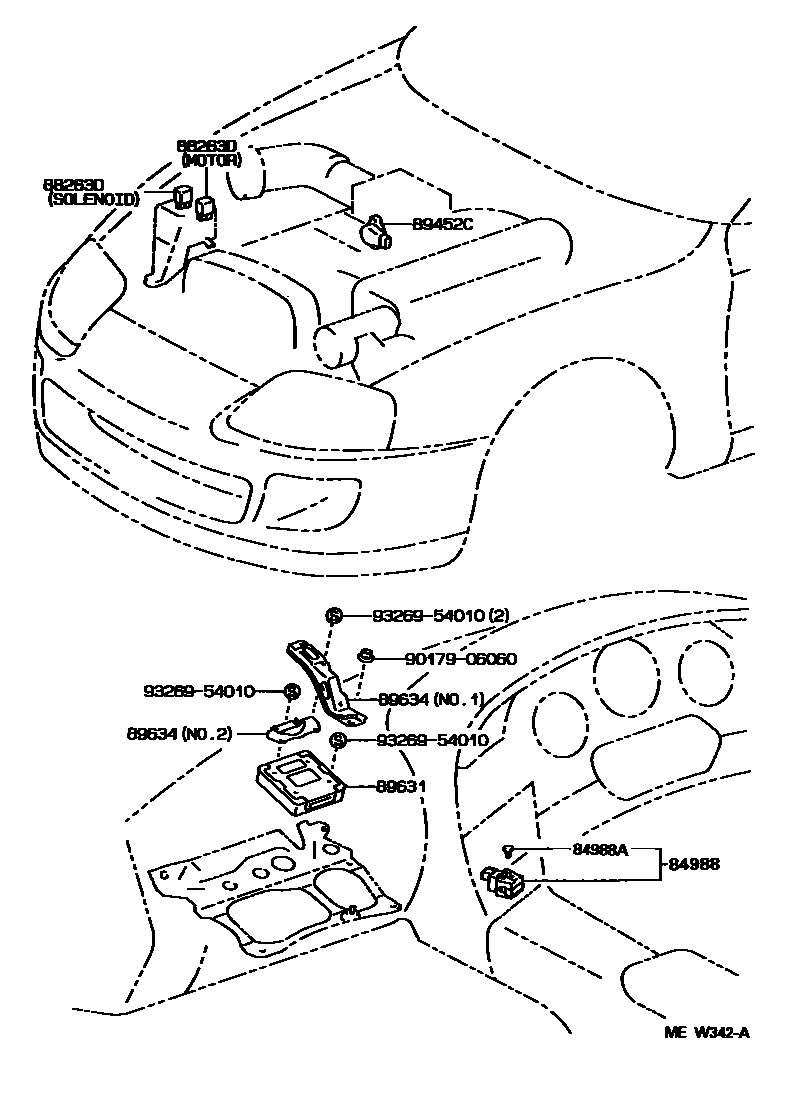

TRACTION CONTROL
84988SWITCH, TRACTION CONTROL
sub84988-14020
84988ABULB, TRACTION CONTROL SWITCH
14V 0.84W
88263DRELAY, TRACTION CONTROL
MOTOR
SOLENOID
89452CSENSOR, THROTTLE POSITION
89631COMPUTER, TRACTION CONTROL
89634BRACKET, TRACTION CONTROL COMPUTER
NO.1
NO.2
NO.1
NO.2
9017906060
main90179-06060
9326954010
main93269-54010
8 parts on this diagram · 1 diagram in section
