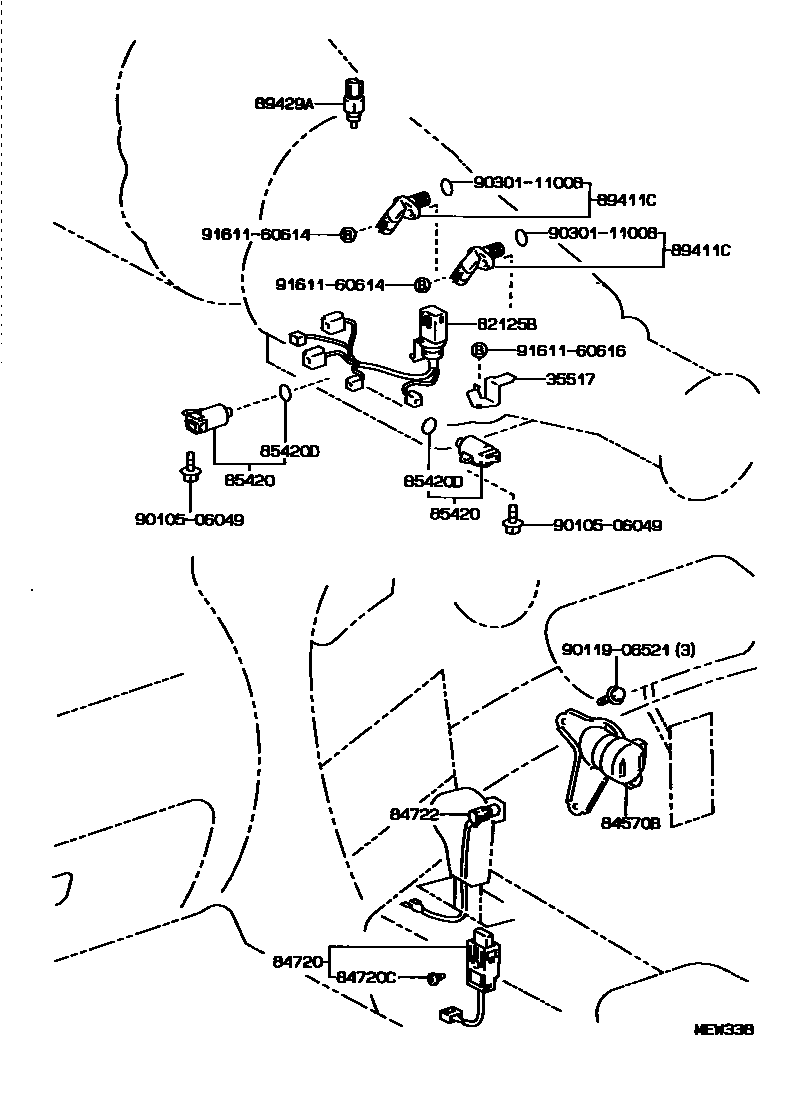

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iJZA80..4FC199305-199605

82125BWIRE, TRANSMISSION

main82125-30170iJZA80..4FC..EUR199305-199511

main82125-30400iJZA80..4FC..GCC199502-199605

main82125-35120iJZA80..4FC..GCC199408-199502

84570BSWITCH ASSY, KICK DOWN

main84570-24010iJZA80..RHD..4FC199305-199601

main84570-24020iJZA80..LHD..4FC199305-199605

84720SWITCH ASSY, PATTERN SELECT

main84720-14080iJZA80..4FC199305-199605

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10760iJZA80..4FC199305-199605

14V 0.63W

84722SWITCH, TRANSMISSION CONTROL

main84722-14090iJZA80..4FC199305-199605

85420SOLENOID ASSY, TRANSMISSION

main85420-22080iJZA80..4FC..GCC199408-199502

NO.1 OR NO.2

main85420-30110iJZA80..4FC..GCC199408-199502

LOCK UP,AISIN

main85420-30120iJZA80..4FC..GCC199408-199502

LOCK UP,NIPPONDENSO

main85420-30200iJZA80..4FC..GCC199502-199605

NO.1 OR NO.2

sub85420-21090

main85420-30220iJZA80..4FC..GCC199502-199605

LOCK UP

sub85420-30260

main85420-50020iJZA80..4FC..EUR199305-199511

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iJZA80..4FC..GCC199305-199605

89411CSENSOR, SPEED

main89411-50010iJZA80..4FC..EUR199305-199601

main89413-24010iJZA80..4FC..GCC199408-199605

89429ASENSOR, TEMPERATURE

main89429-30010iJZA80..4FC199305-199605

9010506049

main90105-06049

9011906521

main90119-06521

9030111008

main90301-11008

9161160614

main91611-60614

9161160616

main91611-60616

15 parts on this diagram · 2 diagrams in section
