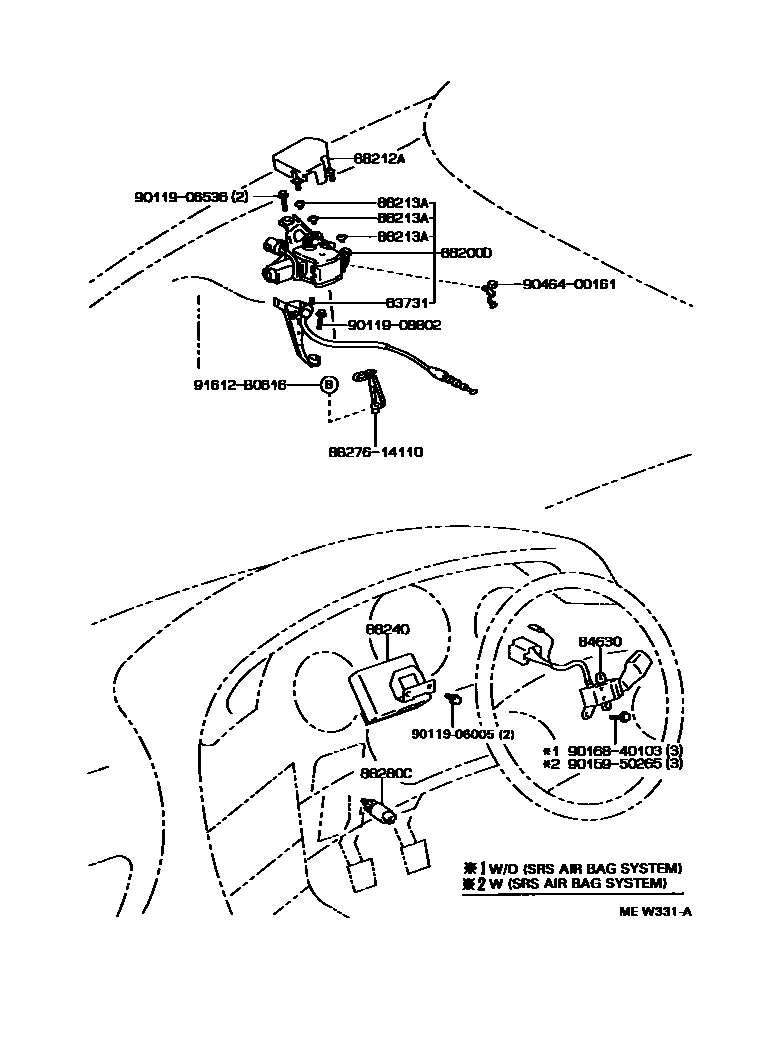

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-14040iJZA80..EUR199305-199601

main83731-14050iJZA80..GCC,GEN199305-199605

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-14120iJZA80..5F199305-199408

main84630-33020iJZA80..EUR199305-199408

W(*80)

sub84630-26011

main84630-33020iJZA80199408-199605

sub84630-26011

88200DACTUATOR ASSY, CRUISE CONTROL

main88002-14030iJZA80..EUR199305-199601

main88002-14040iJZA80..GCC,GEN199305-199605

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-14110iJZA80199305-199605

88213AGROMMET, CRUISE CONTROL ACTUATOR COVER

main88213-22150iJZA80199305-199605

88240COMPUTER ASSY, CRUISE CONTROL

main88240-14260iJZA80..LHD199305-199605

main88240-14270iJZA80..RHD199305-199601

88280CSWITCH ASSY, CLUTCH

main88280-14030iJZA80..MTM199305-199605

8827614110

main88276-14110

9011906005

main90119-06005

9011906536

main90119-06536

9011908802

main90119-08802

9015950265

main90159-50265

9016840103

main90168-40103

9046400161

main90464-00161

91612B0616

main91612-B0616

15 parts on this diagram · 2 diagrams in section
