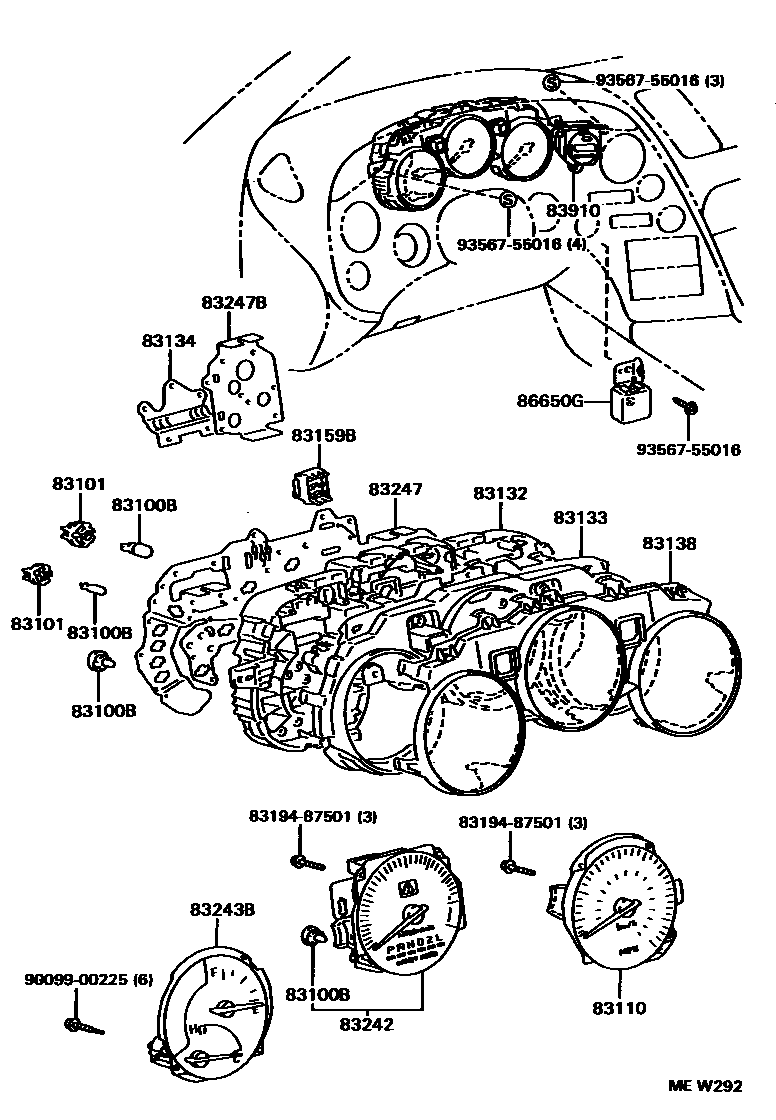

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080iJZA80199305-199605

12V 1.4W,W(SOCKET)

main83109-24010iJZA80199305-199605

12V 1.4W,GREEN CAP

main83109-24020iJZA80199305-199605

12V3.4W W(GREEN CAP)

main83119-24670iJZA80..4FC199305-199605

14V 1.12W W(SOCKET)

main83119-32010iJZA80199305-199605

14V 3.0W

main90981-11018iJZA80..EUR199305-199605

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iJZA80199305-199605

12V 3.4W

main83101-14040iJZA80..EUR199305-199605

12V 1.4W

main83101-24010iJZA80199305-199605

14V 3.0W

83110SPEEDOMETER ASSY

main83110-1B260iJZA80..RHD..EUR199305-199601

main83110-1B270iJZA80..RHD..GEN199305-199308

sub83110-1B271

main83110-1B271iJZA80..RHD..GEN199308-199408

main83110-1B280iJZA80..RHD..GEN199305-199408

MILE/H

main83110-1B310iJZA80..LHD..EUR199305-199601

main83110-1B320iJZA80..LHD..5F199305-199605

main83110-1B340iJZA80..LHD..GEN199305-199408

MILE/H

main83110-1B350iJZA80..LHD..GEN199308-199605

83132CASE, COMBINATION METER

main83132-1J260iJZA80..RHD..4FC199305-199601

main83132-1J280iJZA80..RHD..MTM199305-199601

main83132-1J300iJZA80..LHD..4FC199305-199605

main83132-1J320iJZA80..LHD..MTM199305-199605

83133PLATE, COMBINATION METER, NO.1

main83133-1D270iJZA80..RHD199305-199601

main83133-1D290iJZA80..LHD199305-199605

83134COVER, COMBINATION METER, NO.1

main83133-1D310iJZA80..4FC199305-199605

83138GLASS, SPEEDOMETER

main83138-1B270iJZA80199305-199605

83159BRELAY ASSY, METER

main83159-22370iJZA80199305-199605

83242TACHOMETER ASSY, ENGINE

main83242-1U230iJZA80..RHD..4FC199305-199601

main83242-1U270iJZA80..6F199305-199601

main83242-1U290iJZA80..5F199305-199605

main83242-1U390iJZA80..LHD..4FC..EUR199305-199601

main83242-1U410iJZA80..4FC..GCC199408-199605

83243BGAUGE ASSY, COMBINATION

main83243-1B490iJZA80..RHD..EUR199305-199601

main83243-1B510iJZA80..RHD..GEN199305-199408

sub83243-1B470

main83243-1B570iJZA80..LHD..EUR199305-199601

main83243-1B590iJZA80..GCC199305-199605

main83243-1B610iJZA80..LHD..GEN199305-199605

83247PLATE, METER CIRCUIT

main83247-1U050iJZA80..RHD..EUR199305-199601

main83247-1U070iJZA80..RHD..GEN199305-199408

main83247-1U130iJZA80..LHD..EUR199305-199601

main83247-1U150iJZA80..LHD..(GCC,GEN)199305-199605

83247BPLATE, METER CIRCUIT, NO.2

main83247-1U170iJZA80..RHD..4FC199305-199601

main83247-1U190iJZA80..LHD..4FC199305-199605

83910CLOCK ASSY

main83910-14400iJZA80..GCC,GEN199305-199605

main83910-14410iJZA80..EUR199305-199601

86650GBUZZER ASSY

main86650-14030iJZA80..GCC199305-199605

8319487501

main83194-87501

9009900225

main90099-00225

9356755016

main93567-55016

17 parts on this diagram · 3 diagrams in section
