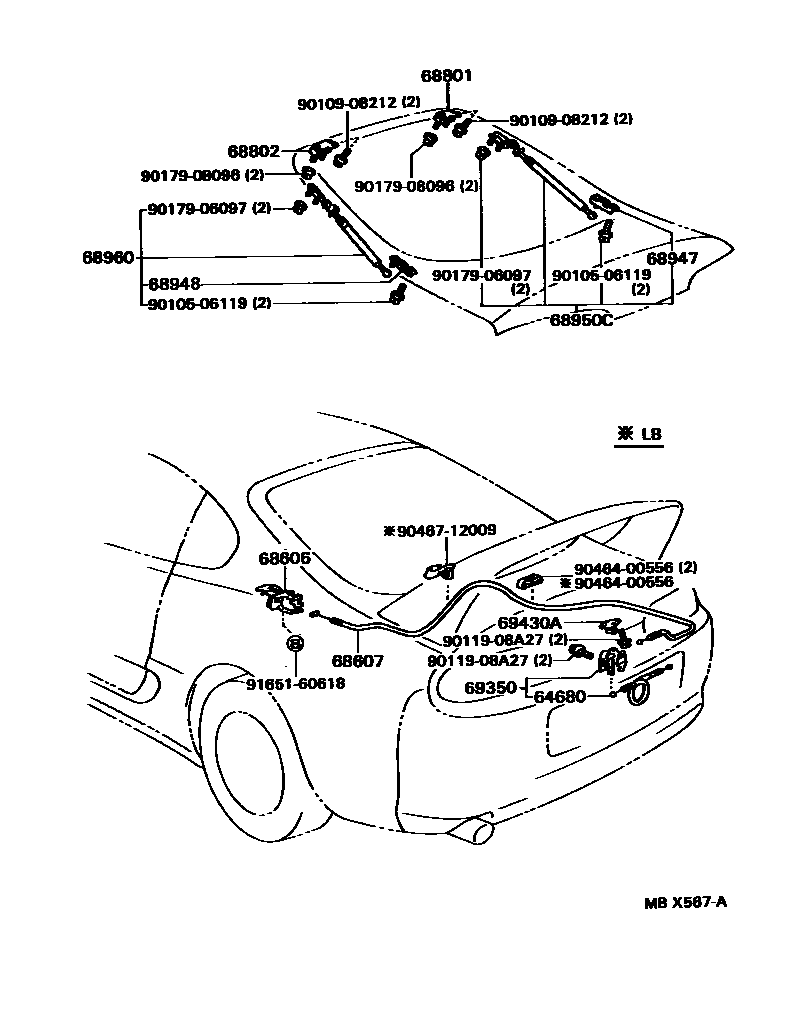

BACK DOOR LOCK & HANDLE

0001 1 0002 1

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-14110iJZA80199305-199408

CHUUHATU

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20080iJZA80..RHD;JZA80..LHD..AET199305-199508

main64606-20081iJZA80..RHD;JZA80..LHD..AET199508-199601

main64606-20090iJZA80..LHD..LB199305-199508

main64606-20091iJZA80..LHD..LB199508-199605

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-14350iJZA80..RHD..LB199305-199408

CHUUHATU

main64607-14360iJZA80..LHD..LB199305-199605

CHUUHATU

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-14050iJZA80199305-199605

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-14050iJZA80199305-199605

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-14010iJZA80199305-199605

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-14010iJZA80199305-199605

68950CSTAY ASSY, BACK DOOR, RH

main68950-19885iJZA80..LHD..EUR199401-199408

W/O(REAR SPOILER)

main68950-19895iJZA80..EUR199305-199601

68960STAY ASSY, BACK DOOR, LH

main68960-19575iJZA80..LHD..EUR199307-199401

SWITZERLAND SPEC

main68960-19585iJZA80..EUR199305-199601

69350LOCK ASSY, BACK DOOR

main69350-14140iJZA80199305-199605

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-14100iJZA80199305-199605

9010506119

main90105-06119

9010908212

main90109-08212

9011908A27

main90119-08A27

9017906097

main90179-06097

9017908096

main90179-08096

9046400556

main90464-00556

9046712009

main90467-12009

9165160618

main91651-60618

19 parts on this diagram · 2 diagrams in section
