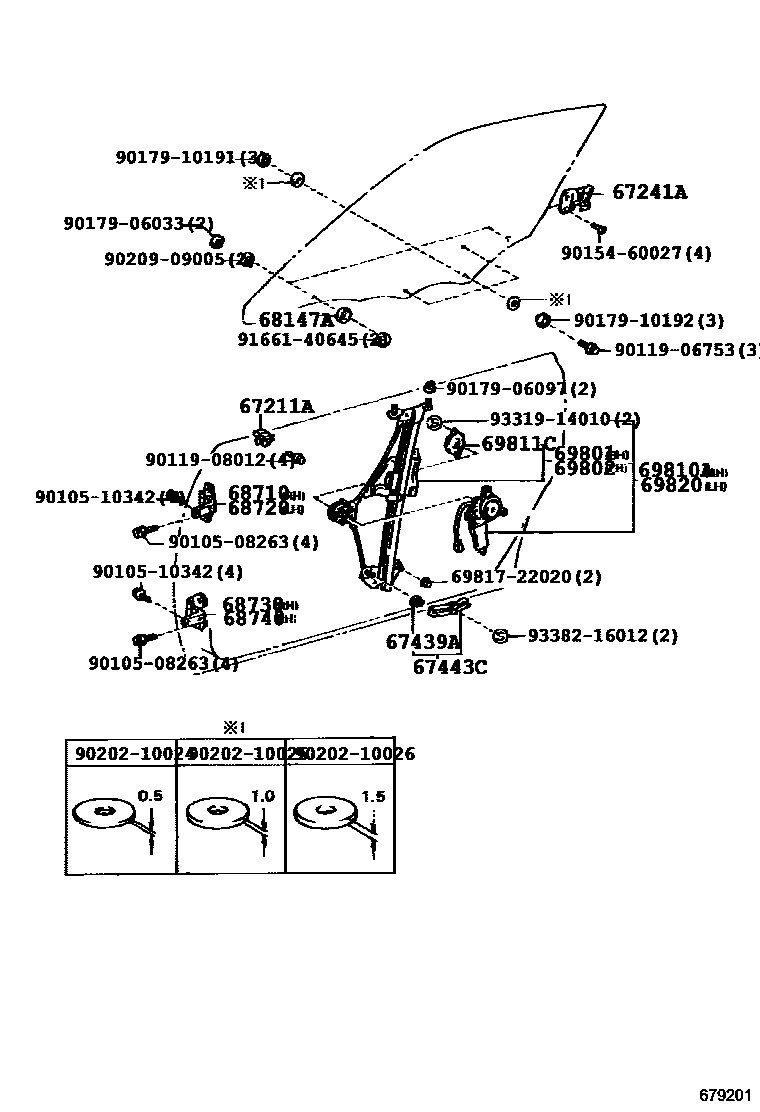

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-30070iJZA80199305-199605

67241ASTABILIZER, DOOR GLASS, INNER

main67235-14050iJZA80199305

RH

main67236-14020iJZA80199305

LH

67439ASNAP, FRONT DOOR WINDOW GUIDE

main67439-12020iJZA80199305-199605

67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER

main67443-14030iJZA80199305-199605

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-30020iJZA80199305-199605

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30150iJZA80199305-199605

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30070iJZA80199305-199605

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30120iJZA80199305-199605

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-30120iJZA80199305-199605

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-14110iJZA80199305-199412

sub69801-14111

main69801-14111iJZA80199412-199605

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-14110iJZA80199305-199412

sub69802-14111

main69802-14111iJZA80199412-199605

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-14190iJZA80199305-199605

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-14020iJZA80199412-199605

main69813-32030iJZA80199305-199412

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-14180iJZA80199305-199605

6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-22020

9010508263

main90105-08263

9010510342

main90105-10342

9011906753

main90119-06753

9011908012

main90119-08012

9015460027

main90154-60027

9017906033

main90179-06033

9017906097

main90179-06097

9017910191

main90179-10191

9017910192

main90179-10192

9020210024

main90202-10024

9020210025

main90202-10025

9020210026

main90202-10026

9020909005

main90209-09005

9166140645

main91661-40645

9331914010

main93319-14010

9338216012

main93382-16012

31 parts on this diagram · 1 diagram in section
