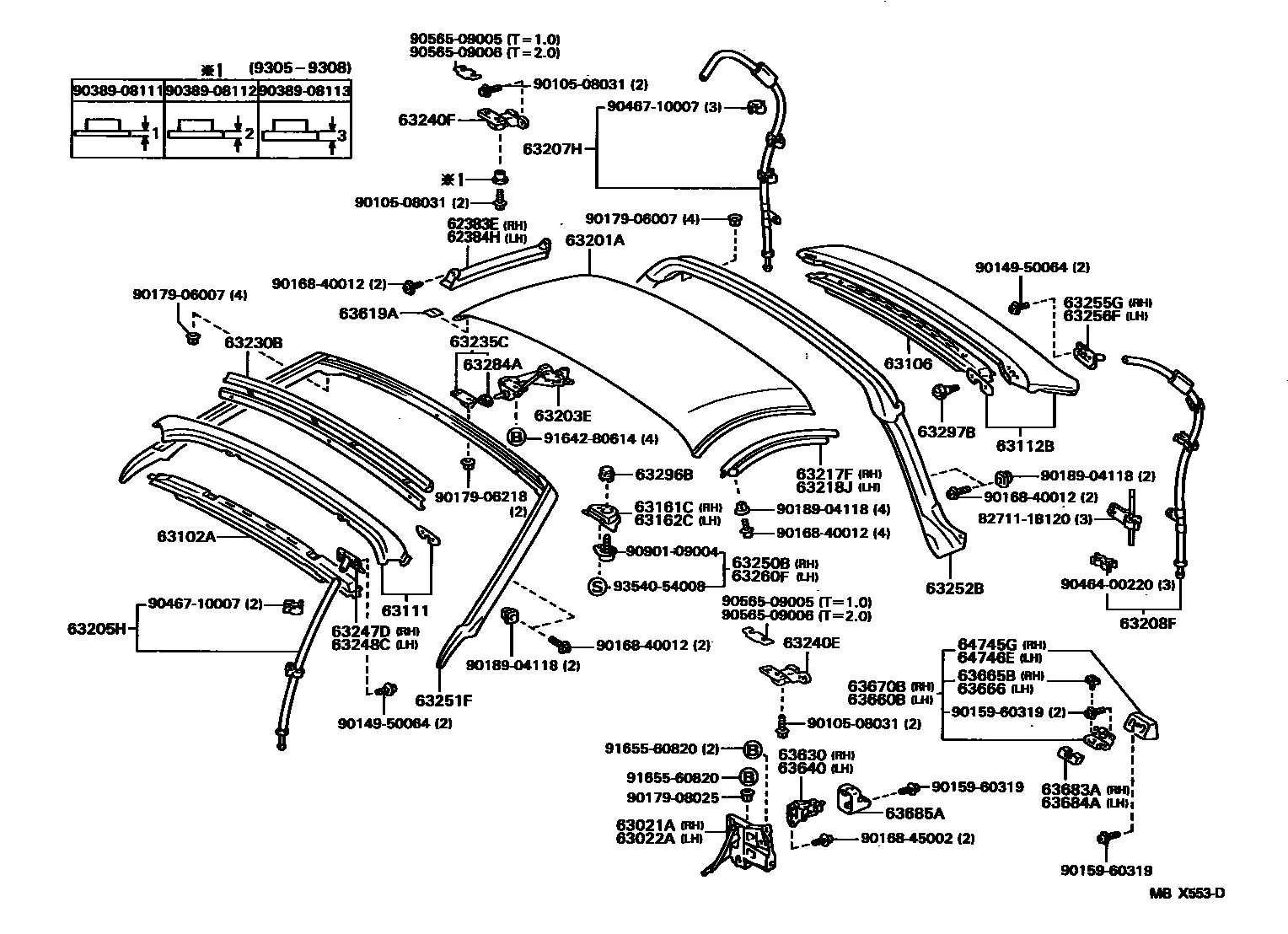

ROOF PANEL & BACK WINDOW GLASS
62383EWEATHERSTRIP, ROOF SIDE RAIL, NO.3 RH
62384HWEATHERSTRIP, ROOF SIDE RAIL, NO.3 LH
63021ARETAINER SUB-ASSY, REMOVE ROOF HOLDER, RH
63022ARETAINER SUB-ASSY, REMOVE ROOF HOLDER, LH
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63112BPANEL, ROOF, REAR
63161CPROTECTOR, WINDSHIELD HEADER, RH
63162CPROTECTOR, WINDSHIELD HEADER, LH
63201APANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63203ELOCK SUB-ASSY, REMOVABLE ROOF, RH
63205HHOSE SUB-ASSY, REMOVE ROOF DRAIN, FRONT
63207HHOSE SUB-ASSY, REMOVE ROOF DRAIN, REAR RH
63208FHOSE SUB-ASSY, REMOVE ROOF DRAIN, REAR LH
63217FMOULDING, REMOVABLE ROOF, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
63218JMOULDING, REMOVABLE ROOF, LH
BLACK,TRIM2#
BLACK,TRIM0#,2#
63230BPANEL ASSY, ROOF WIND DEFLECTOR
63235CBRACKET, REMOVABLE ROOF LOCK
63240EBRACKET ASSY, REMOVABLE ROOF
63240FBRACKET ASSY, REMOVABLE ROOF
63247DBRACKET, REMOVABLE ROOF DRAIN, FRONT RH
63248CBRACKET, REMOVABLE ROOF DRAIN, FRONT LH
63250BCOVER ASSY, REMOVABLE ROOF BOLT, RH
63251FWEATHERSTRIP, REMOVABLE ROOF, FRONT
63252BWEATHERSTRIP, REMOVABLE ROOF, REAR
63255GBRACKET, REMOVABLE ROOF DRAIN, REAR RH
63256FBRACKET, REMOVABLE ROOF DRAIN, REAR LH
63260FCOVER ASSY, REMOVABLE ROOF BOLT, LH
63284AGUIDE, REMOVABLE ROOF FEMALE
63296BCAP, REMOVABLE ROOF SIDE
63297BCAP, REMOVABLE ROOF SIDE, REAR
63619APROTECTOR, REMOVABLE ROOF PANEL, INNER
63630HOLDER ASSY, REMOVABLE ROOF, RH
63640HOLDER ASSY, REMOVABLE ROOF, LH
63660BSTAY ASSY, REMOVABLE ROOF, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
63665BCUSHION, REMOVABLE ROOF STAY, RH
63666CUSHION, REMOVABLE ROOF STAY, LH
63670BSTAY ASSY, REMOVABLE ROOF, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
63683ACOVER, REMOVABLE ROOF STAY SUPPORT, RH
BLACK,TRIM2#
BLACK,TRIM0#,2#
63684ACOVER, REMOVABLE ROOF STAY SUPPORT, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
63685AGARNISH, REMOVABLE ROOF HOLDER
BLACK,TRIM0#,2#,RH
BLACK,TRIM2#,RH
BLACK,TRIM0#,2#,LH
BLACK,TRIM2#,LH
64745GCOVER, LOWER BACK SERVICE HOLE, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
64746ECOVER, LOWER BACK SERVICE HOLE, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
827111B120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1B120
9010508031
main90105-08031
9014950064
main90149-50064
9015960319
main90159-60319
9016840012
main90168-40012
9016845002
main90168-45002
9017906007
main90179-06007
9017906218
main90179-06218
9017908025
main90179-08025
9018904118
main90189-04118
9038908111
main90389-08111
9038908112
main90389-08112
9038908113
main90389-08113
9046400220
main90464-00220
9046710007
main90467-10007
9056509005
main90565-09005
9056509006
main90565-09006
9090109004
main90901-09004
9164280614
main91642-80614
9165560820
main91655-60820
9354054008
main93540-54008
65 parts on this diagram · 2 diagrams in section
