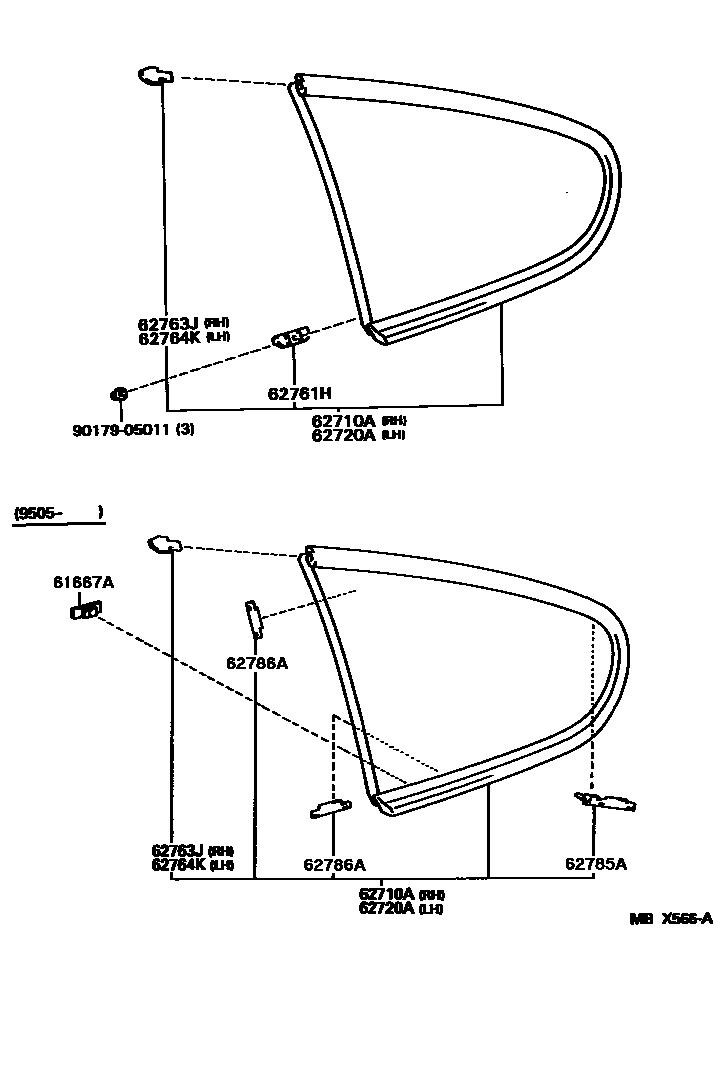

QUARTER WINDOW

61667ASPACER QUARTER PANEL, NO.1

main61667-14030×6iJZA80199505-199605

62710AWINDOW ASSY, QUARTER, RH

main62710-14260iJZA80..LB199305-199505

*TT,T=3.1,BLUE

main62710-14261iJZA80..LB199505-199605

*TT,T=3.1,BLUE

sub62710-14280

main62710-14270iJZA80..AET199305-199505

*TT,T=3.1,BLUE

main62710-14271iJZA80..AET199505-199601

*TT,T=3.1,BLUE

sub62710-14290

62720AWINDOW ASSY, QUARTER, LH

main62720-14260iJZA80..LB199305-199505

*TT,T=3.1,BLUE

main62720-14261iJZA80..LB199505-199605

*TT,T=3.1,BLUE

main62720-14270iJZA80..AET199305-199505

*TT,T=3.1,BLUE

main62720-14271iJZA80..AET199505-199601

*TT,T=3.1,BLUE

62761HRETAINER, QUARTER WINDOW GLASS, FRONT

main62761-14050×6iJZA80199305-199505

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-14060iJZA80..LB199305-199605

main62763-14070iJZA80..AET199305-199601

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-14060iJZA80..LB199305-199605

main62764-14050iJZA80..AET199305-199601

62785ASPACER, QUARTER WINDOW GLASS

main62785-14020×2iJZA80199505-199605

62786ASPACER, QUARTER WINDOW GLASS, NO.2

main62786-14020×4iJZA80199505-199605

9017905011

main90179-05011

9 parts on this diagram · 1 diagram in section
