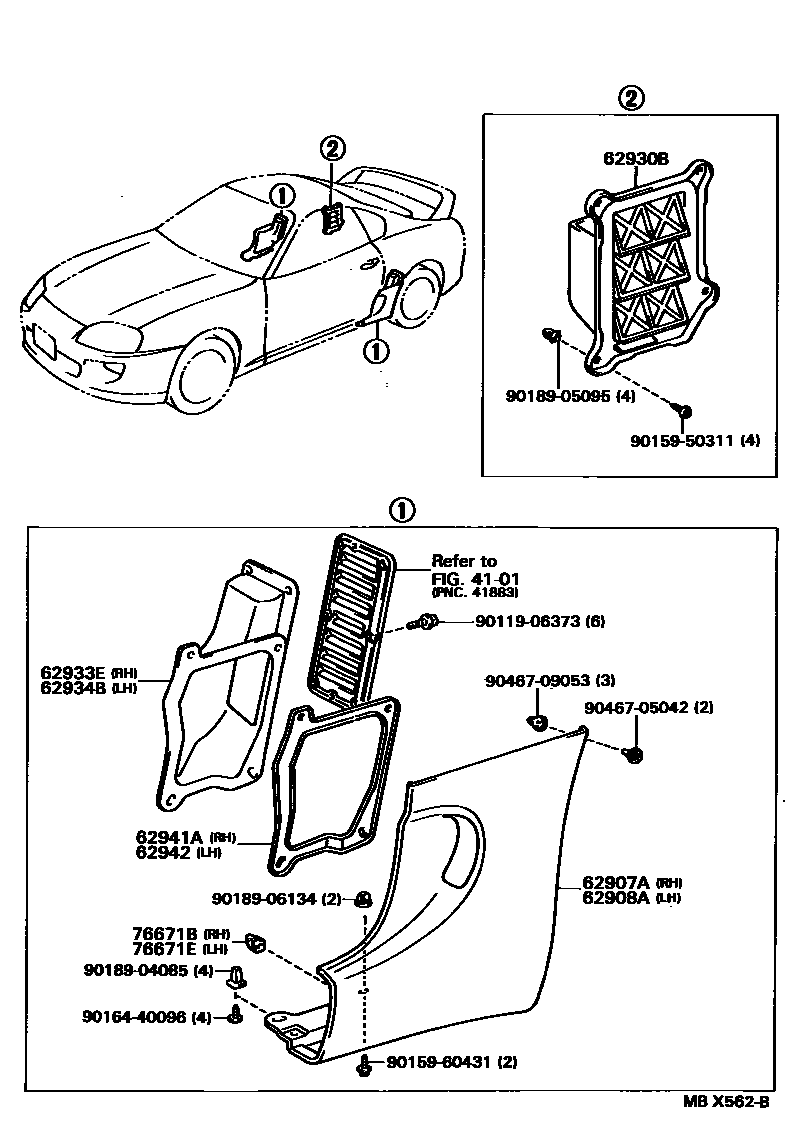

ROOF SIDE VENTILATOR
4101
62907AGARNISH SUB-ASSY, QUARTER PANEL AIR INLET, RH
62908AGARNISH SUB-ASSY, QUARTER PANEL AIR INLET, LH
62930BDUCT ASSY, QUARTER VENT, RH
62933EDUCT, QUARTER VENT, INNER RH
62934BDUCT, QUARTER VENT, INNER LH
62941ARETAINER, QUARTER VENT DUCT
62942RETAINER, ROOF SIDE VENT DUCT, LH
76671BCLIP, QUARTER VENT DUCT RETAINER
76671ECLIP, QUARTER BELT MOULDING, NO.1, LH
9011906373
main90119-06373
9015950311
main90159-50311
9015960431
main90159-60431
9016440096
main90164-40096
9018904085
main90189-04085
9018905095
main90189-05095
9018906134
main90189-06134
9046705042
main90467-05042
9046709053
main90467-09053
19 parts on this diagram · 1 diagram in section
