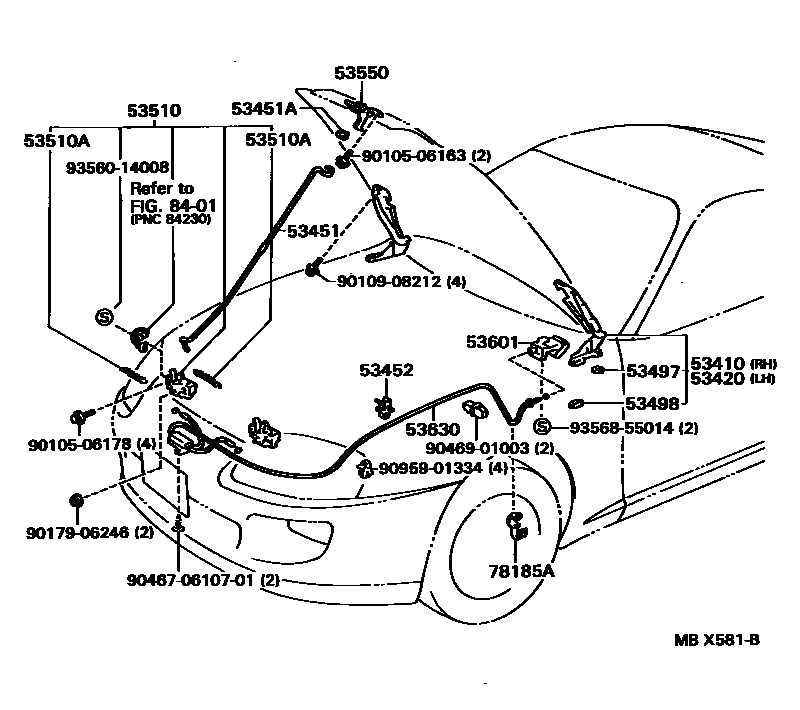

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-14130iJZA80199305-199605

53420HINGE ASSY, HOOD, LH

main53420-14100iJZA80199305-199605

53451ROD, HOOD SUPPORT

main53451-14070iJZA80199305-199605

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-01264iJZA80199305-199605

53452HOLDER, HOOD STAY

main53452-14010iJZA80199305-199605

53497PAD, HOOD HINGE, NO.1

main53497-12050iJZA80199305-199605

T=1.0,T=1.0

sub53497-42010

main53497-20070iJZA80199305-199605

T=2.0,T=2.0

53498PAD, HOOD HINGE, NO.2

main53498-14030iJZA80199305-199605

T=1.0

main53498-14040iJZA80199305-199605

T=2.0

53510LOCK ASSY, HOOD

main53510-14240iJZA80..EUR199305-199601

RH

main53510-14250iJZA80199305-199605

LH

main53510-14260iJZA80..GCC,GEN199305-199605

RH

sub53510-14240

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-08044iJZA80199305-199605

WD=0.8,CW=18,WD=0.8,CW=18

main90506-14061iJZA80199305-199605

WD=1.4,CW=15,WD=1.4,CW=15

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-14020iJZA80199305-199605

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20081-C0iJZA80199305-199605

BLACK,TRIM0#,2#

sub53601-20081

sub53601-24030

main53601-20081-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub53601-20081

sub53601-24030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-14300iJZA80199305-199605

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-20080iJZA80199305-199605

8401

9010506163

main90105-06163

9010506178

main90105-06178

9010908212

main90109-08212

9017906246

main90179-06246

904670610701

main90467-0610701

9046901003

main90469-01003

9095901334

main90959-01334

9356014008

main93560-14008

9356855014

main93568-55014

23 parts on this diagram · 1 diagram in section
