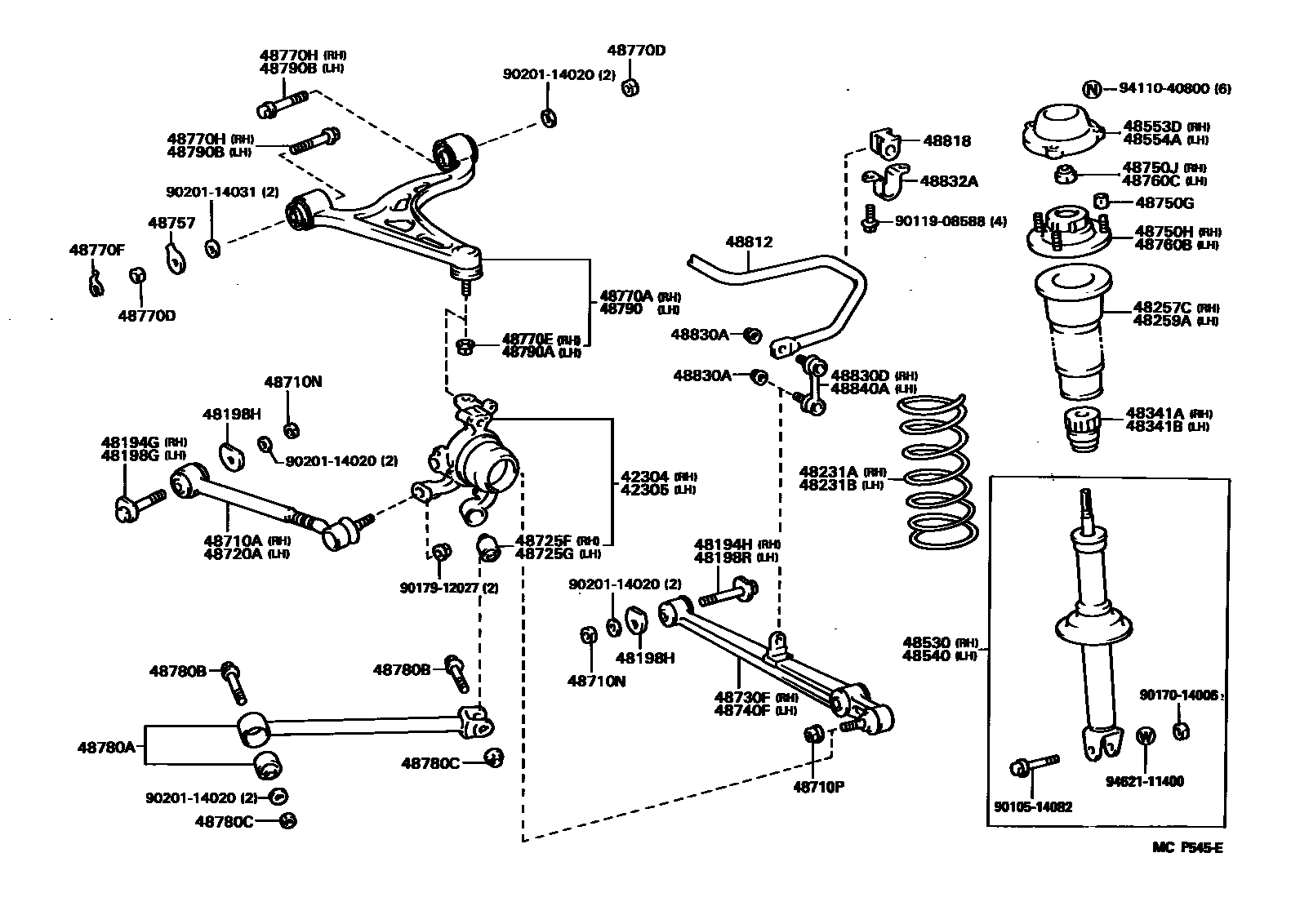

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
W(*66)
42305CARRIER SUB-ASSY, REAR AXLE, LH
W(*66)
48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH
48194HCAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH
48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH
48198HCAM, CAMBER ADJUST, NO.2
sub48198-50011
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-19516
48540ABSORBER ASSY, SHOCK, REAR LH
sub48530-19516
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710NNUT, NO.1(FOR REAR LOWER CONTROL ARM)
48710PNUT, NO.2(FOR REAR LOWER CONTROL ARM)
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
sub90177-12002
48757ATTACHMENT, REAR SUSPENSION ARM
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
sub90177-12002
48770AARM ASSY, UPPER CONTROL, REAR RH
48770DNUT(FOR REAR UPPER CONTROL ARM)
BODY SIDE
CARRIER SIDE
48770ENUT, NO.1(FOR REAR UPPER CONTROL ARM RH)
48770FRING, E(FOR REAR UPPER CONTROL ARM)
48770HBOLT(FOR REAR UPPER CONTROL ARM RH)
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
BODY SIDE
CARRIER SIDE
48780CNUT(FOR STRUT ROD)
BODY SIDE
CARRIER SIDE
48790ARM ASSY, UPPER CONTROL, REAR LH
48790ANUT, NO.1(FOR REAR UPPER CONTROL ARM LH)
48790BBOLT(FOR REAR UPPER CONTROL ARM LH)
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010514082
main90105-14082
9011908588
main90119-08588
9017014006
main90170-14006
9017912027
main90179-12027
9020114020
main90201-14020
9020114031
main90201-14031
9411040800
main94110-40800
9462111400
main94621-11400
56 parts on this diagram · 1 diagram in section
