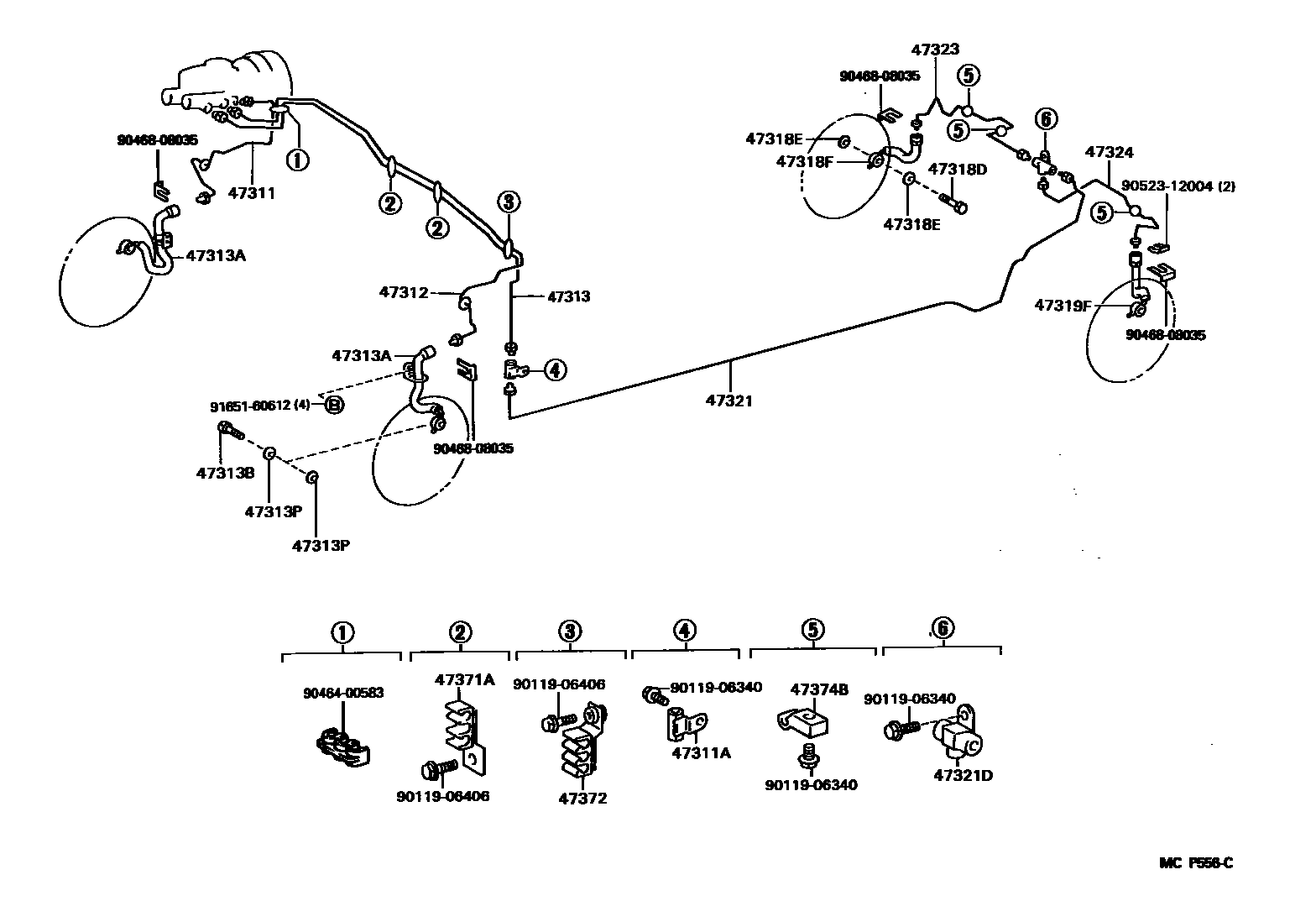

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
W(*66)
W(*66)
47311AWAY(FOR FRONT BRAKE TUBE)
W(*66)
47312TUBE, FRONT BRAKE, NO.2
W(*66)
W(*66)
47313TUBE, FRONT BRAKE, NO.3
W(*66)
W(*66)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
sub90947-02948
47319FHOSE, FLEXIBLE(FOR REAR LH)
sub90947-02948
47321TUBE, REAR BRAKE, NO.1
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
W(*66)
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
W(*66)
47372CLAMP, BRAKE TUBE, NO.2
W(*66)
47374BCLAMP, BRAKE TUBE, NO.4
W(*66)
9011906340
main90119-06340
9011906406
main90119-06406
9046400583
main90464-00583
9046808035
main90468-08035
9052312004
main90523-12004
9165160612
main91651-60612
24 parts on this diagram · 9 diagrams in section
