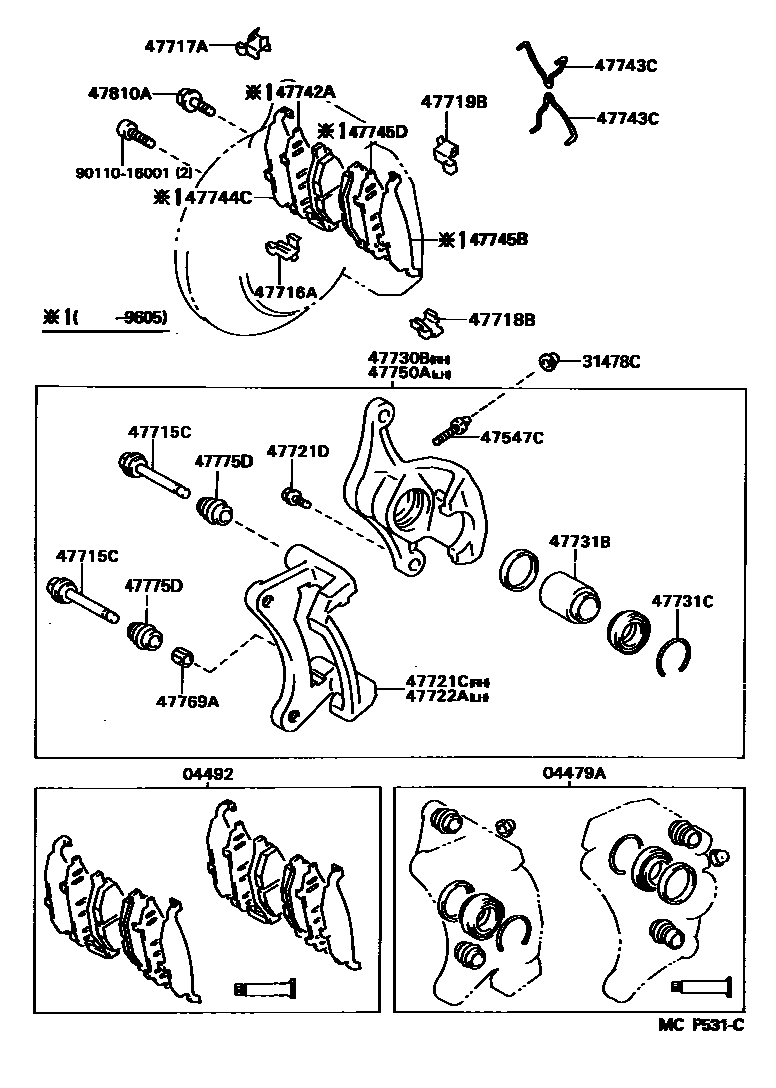

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-14130iJZA80..EUR¥2,740199305-199601

main04479-24030iJZA80..GCC,GEN¥2,750199305-199605

04492PAD KIT, DISC BRAKE, REAR

main04492-14150iJZA80..5F¥11,900199305-199309

sub04492-30140¥11,400

main04492-14161iJZA80..EUR¥10,600199305-199505

sub04466-14040¥10,300

main04492-30140iJZA80..5F¥11,400199309-199401

sub04492-50040¥11,100

main04492-50040iJZA80..GCC,GEN¥11,100199401-199505

sub04466-30030¥8,800

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iJZA80..EUR¥190199305-199601

main31478-30010iJZA80..GCC,GEN¥160199305-199605

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20030iJZA80..EUR¥230199305-199601

main47547-27030iJZA80..GCC,GEN¥180199305-199605

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-50010iJZA80..GCC,GEN¥460199305-199605

SUB PIN SIDE

main47715-50030iJZA80..GCC,GEN¥510199305-199605

MAIN PIN SIDE

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-50020iJZA80..GCC,GEN¥390199305-199605

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47716-50040iJZA80..GCC,GEN¥390199305-199605

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47717-50020iJZA80..GCC,GEN¥390199305-199605

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47717-50040iJZA80..GCC,GEN¥390199305-199605

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-24060iJZA80..GCC,GEN¥5,900199305-199605

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iJZA80..GCC,GEN¥90199305-199605

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-24060iJZA80..GCC,GEN¥5,900199305-199605

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-14240iJZA80..GCC,GEN¥41,800199305-199605

main47730-14270iJZA80..EUR¥46,900199305-199601

47731BPISTON, REAR DISC BRAKE

main47731-14120iJZA80..EUR¥1,340199305-199601

main47731-50040iJZA80..GCC,GEN¥1,710199305-199605

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-45002iJZA80..EUR¥230199305-199601

main90522-50002iJZA80..GCC,GEN¥230199305-199605

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47744-24020iJZA80..GCC,GEN¥270199305-199605

main47745-14090iJZA80..EUR¥270199305-199601

RH

main47745-14120iJZA80..EUR¥270199305-199601

LH

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-50020iJZA80..GCC,GEN¥300199305-199605

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-14160iJZA80..EUR¥270199305-199601

RH

main47744-14180iJZA80..EUR¥270199305-199601

LH

main47745-24020iJZA80..GCC,GEN¥270199305-199605

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-14160iJZA80..EUR¥270199305-199601

LH

main47744-14180iJZA80..EUR¥270199305-199601

RH

main47745-24020iJZA80..GCC,GEN¥270199305-199605

47745DSHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE)

main47744-24020iJZA80..GCC,GEN¥270199305-199605

main47745-14090iJZA80..EUR¥270199305-199601

LH

main47745-14120iJZA80..EUR¥270199305-199601

RH

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14250iJZA80..GCC,GEN¥41,800199305-199605

main47750-14280iJZA80..EUR¥46,900199305-199601

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iJZA80..GCC,GEN¥50199305-199605

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-50010iJZA80..GCC,GEN¥580199305-199605

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iJZA80¥130199305-199605

9011016001

main90110-16001¥520

25 parts on this diagram · 3 diagrams in section
