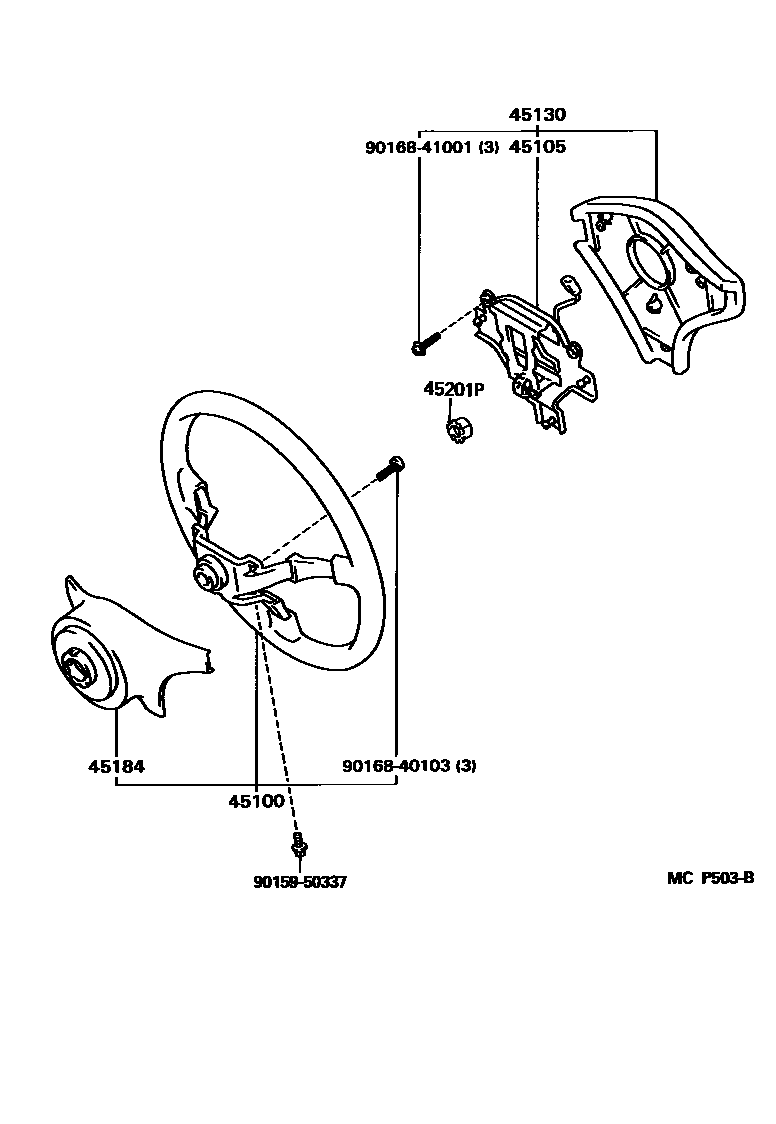

STEERING WHEEL

0001 1 0002 1W(SRS AIR BAG SYSTEM)

45100WHEEL ASSY, STEERING

main45100-14550-C0iJZA80..EUR199305-199605

4-SPOKE,BLACK,TRIM0#,2#

main45100-14550-C0iJZA80..EUR199305-199408

4-SPOKE,W(*80),BLACK,TRIM0#,2#

main45100-14550-C0iJZA80..LHD..(EUR,GEN)199508-199605

4-SPOKE,BLACK,TRIM2#

main45100-14570-C0iJZA80..5F199305-199408

3-SPOKE,BLACK,TRIM0#,2#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-14140iJZA80..5F199305-199408

45130BUTTON ASSY, HORN

main45130-14300-C0iJZA80..5F199305-199408

W(*80),BLACK,TRIM0#,2#

sub45130-14330

main45130-14300-C0iJZA80199408-199605

BLACK,TRIM0#,2#

sub45130-14330

main45130-14300-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

sub45130-14330

main45130-14310-C0iJZA80..EUR199305-199408

BLACK,TRIM0#,2#

sub45130-14300

main45130-14320-C0iJZA80..5F199305-199408

BLACK,TRIM0#,2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-14160-C0iJZA80..5F199305-199408

BLACK,TRIM0#,2#

sub45184-14160

sub45184-14161

45201PNUT, STEERING WHEEL SET

main90179-12071iJZA80199305-199605

9015950337

main90159-50337

9016840103

main90168-40103

9016841001

main90168-41001

8 parts on this diagram · 2 diagrams in section
