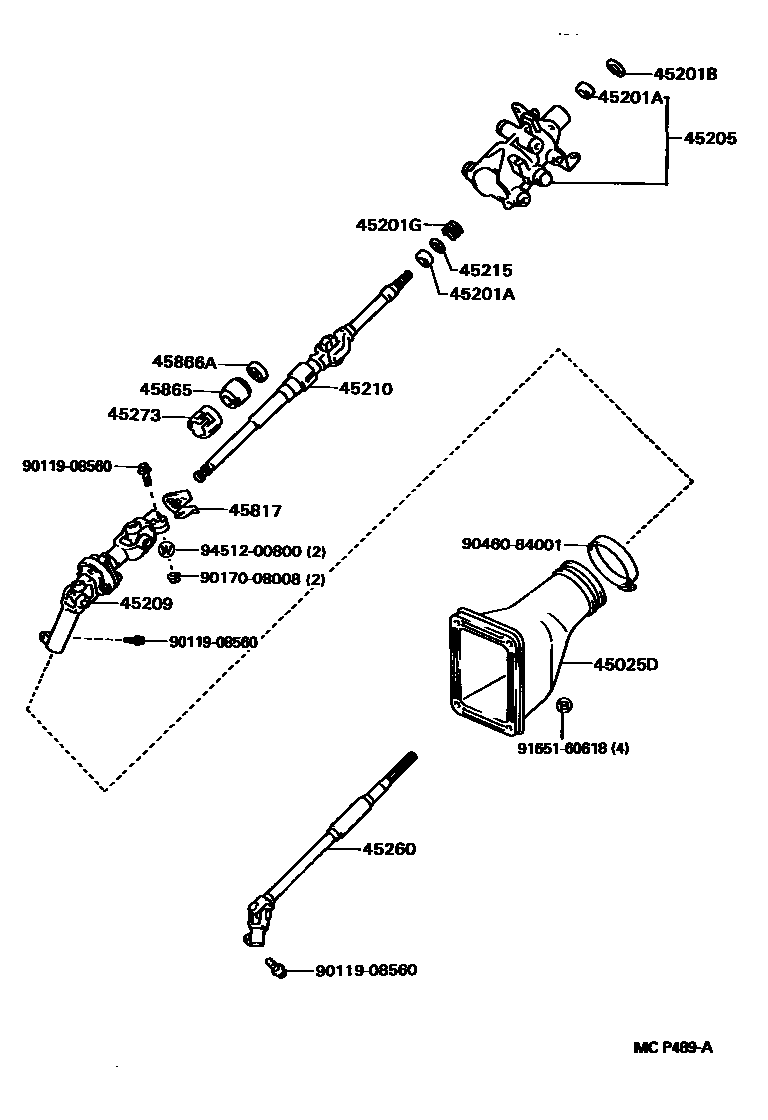

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-24020iJZA80..RHD199305-199601

main45025-24030iJZA80..LHD199305-199605

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iJZA80199305-199605

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iJZA80199305-199605

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iJZA80199305-199605

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-14200iJZA80199305-199406

sub45205-14201

main45205-14201iJZA80199406-199605

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14040iJZA80..RHD199305-199601

main45209-14070iJZA80..LHD199305-199605

45210SHAFT ASSY, STEERING MAIN

main45210-14190iJZA80199305-199605

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iJZA80199305-199605

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-24070iJZA80..RHD199305-199601

main45260-24080iJZA80..LHD199305-199605

45273BUSH, STEERING MAIN SHAFT

main45273-22020iJZA80199305-199605

45817STOPPER, STEERING SHAFT THRUST

main45817-22030iJZA80199305-199605

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iJZA80199305-199307

sub45865-12060

main45865-12060iJZA80199307-199605

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iJZA80199305-199307

9011908560

main90119-08560

9017008008

main90170-08008

9046084001

main90460-84001

9165160618

main91651-60618

9451200800

main94512-00800

18 parts on this diagram · 4 diagrams in section
