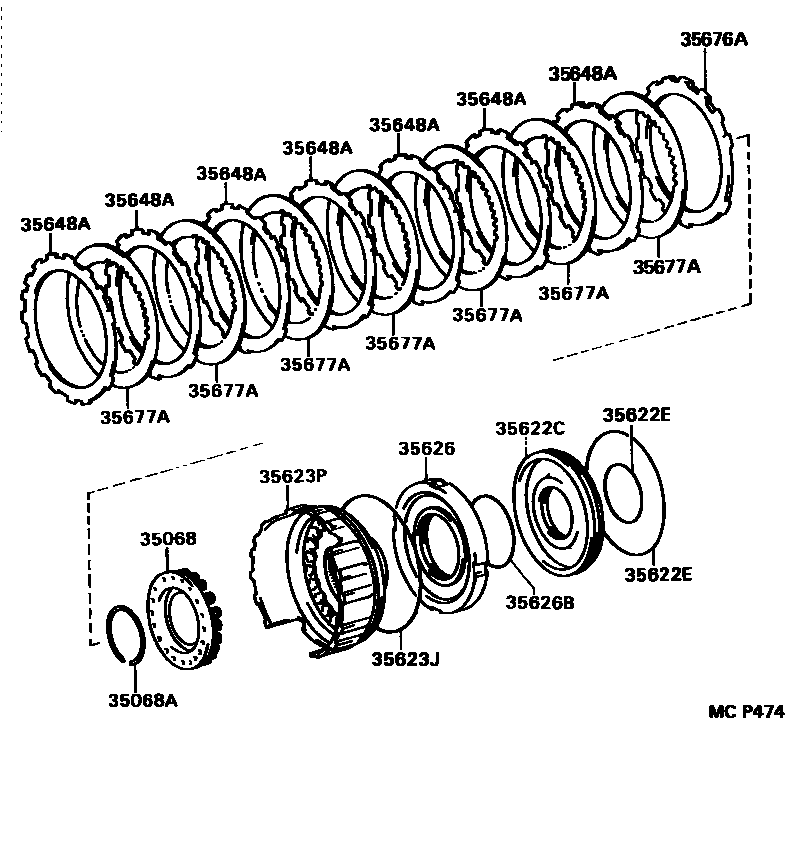

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-30011iJZA80..4FC..GCC199408-199605

main35068-50010iJZA80..4FC..EUR199305-199601

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iJZA80..4FC199305-199605

35622CPISTON, 1ST & REVERSE BRAKE, NO.1

main35622-30010iJZA80..4FC199305-199605

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-57188iJZA80..4FC199305-199605

INNER

main90301-99193iJZA80..4FC199305-199605

OUTER

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99192iJZA80..4FC199305-199605

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-30012iJZA80..4FC..GCC199408-199605

main35623-50010iJZA80..4FC..EUR199305-199601

35626SLEEVE, BRAKE REACTION

main35626-30020iJZA80..4FC199305-199605

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iJZA80..4FC199305-199605

sub90301-67005

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031iJZA80..4FC..EUR199305-199605

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-50010iJZA80..4FC199305-199605

T=5.0

main35676-50020iJZA80..4FC199305-199605

T=4.8

main35676-50030iJZA80..4FC199305-199605

T=4.6

main35676-50040iJZA80..4FC199305-199605

T=4.4

main35676-50050iJZA80..4FC199305-199605

T=4.2

main35676-50060iJZA80..4FC199305-199605

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30110iJZA80..4FC..GCC199408-199605

sub35677-30130

main35677-30130iJZA80..4FC..EUR199305-199601

11 parts on this diagram · 1 diagram in section
