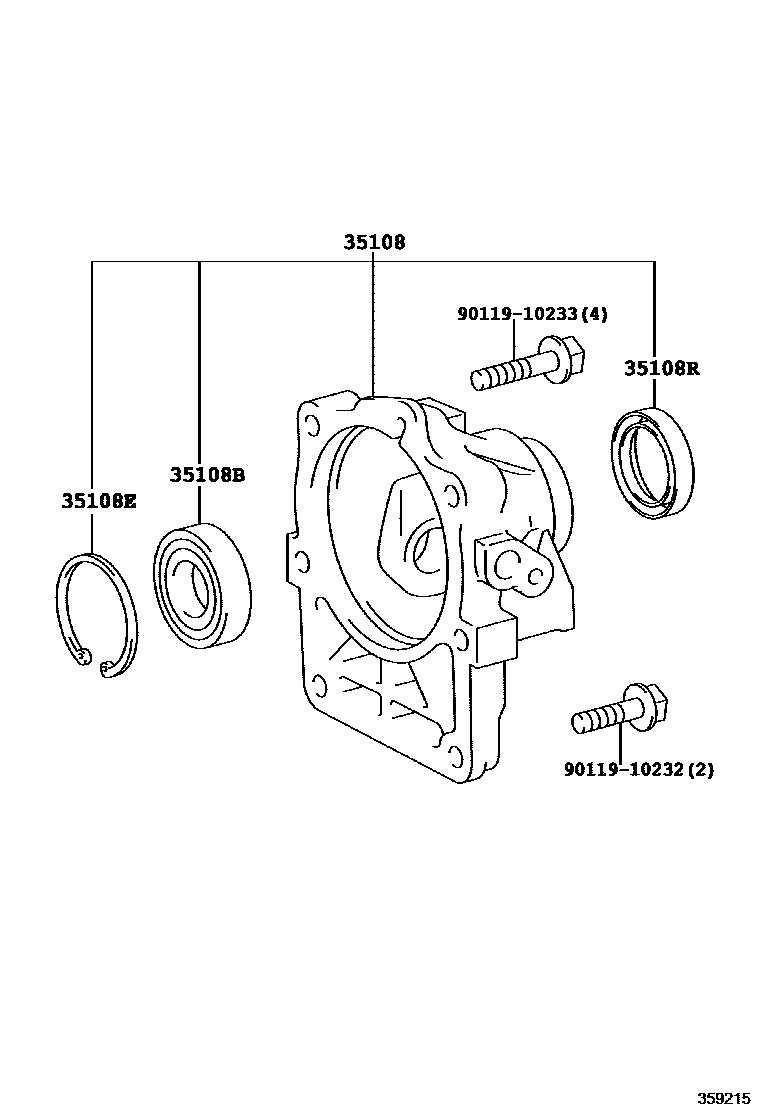

EXTENSION HOUSING (ATM)

0001 1A340E 0002 1A340E

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-24040iJZA80..4FC..GCC¥28,000199408-199605

main35108-30160iJZA80..4FC..EUR¥28,000199305-199601

35108BBEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90363-30063iJZA80..4FC..EUR¥1,760199305-199601

35108ERING, HOLE SNAP (FOR ATM EXTENSION HOUSING)

main90521-66006iJZA80..4FC..EUR¥130199305-199601

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iJZA80..4FC..GCC¥400199408-199605

main90311-42024iJZA80..4FC..EUR¥420199305-199601

9011910232

main90119-10232¥110

9011910233

main90119-10233¥160

6 parts on this diagram · 2 diagrams in section
