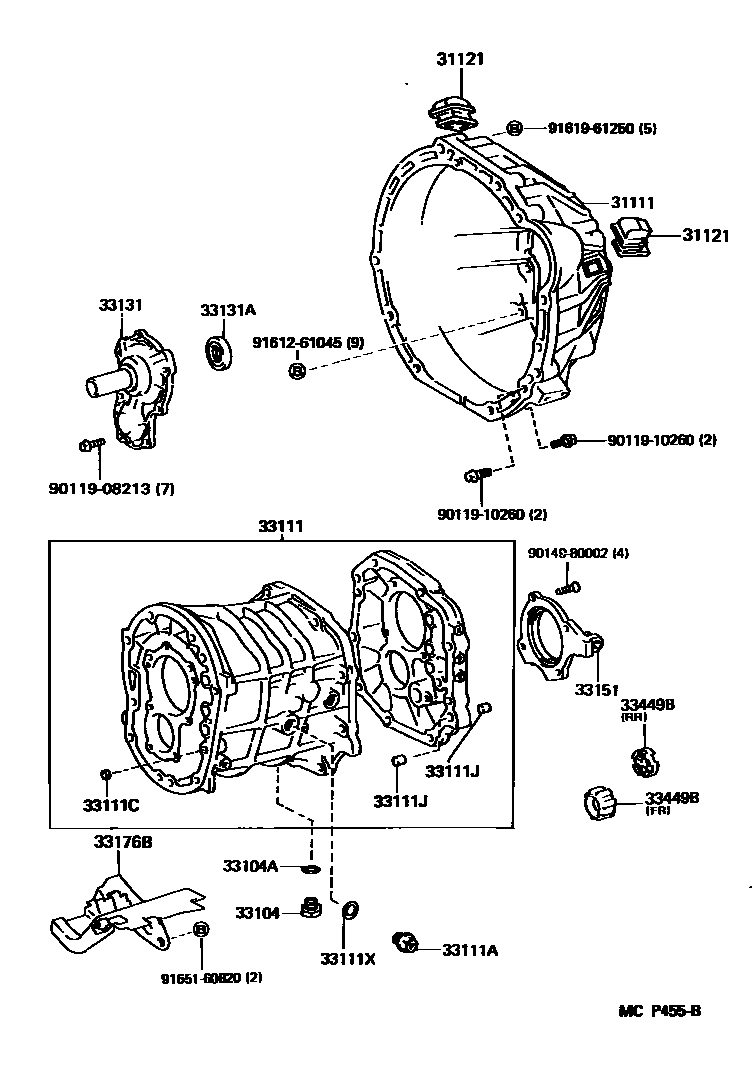

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
31121COVER, CLUTCH HOUSING, NO.1
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
OD=18
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=32,OD=10
L=16,OD=12
33111XGASKET, TRANSMISSION CASE PLUG
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
NO.1
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33449BMAGNET, TRANSMISSION
RR
FR
9011908213
9011910260
9014980002
9161261045
9161961250
9165160820
20 parts on this diagram · 2 diagrams in section
