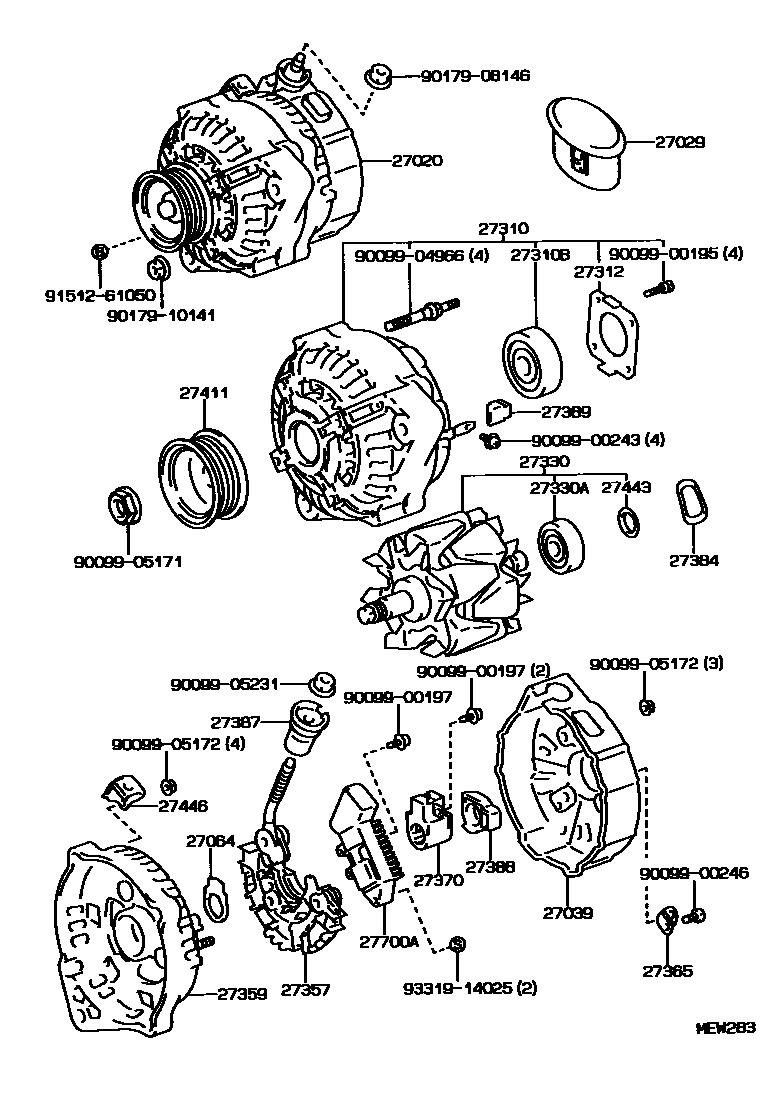

ALTERNATOR

27020ALTERNATOR ASSY

main27060-46050i2JZGE..JZA80199505-199605

12V 90A

sub27060-46250

main27060-46120i2JZGTE..JZA80..4FC199305-199601

12V 100A

sub27060-46111

main27060-46190i2JZGE..JZA80199305-199505

12V 90A

main27060-46200i2JZGTE..JZA80..6F199305-199601

12V 90A

27029COVER, ALTERNATOR

main27029-46020i2JZ#..JZA80..LHD199305-199605

27039COVER, ALTERNATOR REAR END

main27039-46170i2JZGTE..JZA80..4FC199305-199601

main27039-46190i2JZGE..JZA80199305-199605

sub27039-22050

main27039-55080i2JZGTE..JZA80..6F199305-199601

sub27039-70470

27064SEAL, ALTERNATOR PLATE

main27064-42010i2JZ#..JZA80199305-199605

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-46090i2JZGTE..JZA80..4FC199305-199601

main27310-46140i2JZGE..JZA80;2JZGTE..JZA80..6F199504-199605

main27310-46230i2JZGE..JZA80;2JZGTE..JZA80..6F199305-199504

sub27310-46140

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i2JZ#..JZA80199305-199605

27312PLATE, RETAINER

main27312-42010i2JZ#..JZA80199305-199605

27330ROTOR ASSY, ALTERNATOR

main27330-46080i2JZGE..JZA80;2JZGTE..JZA80..6F199305-199605

main27330-46090i2JZGTE..JZA80..4FC199305-199601

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10194i2JZ#..JZA80199305-199605

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-46130i2JZGTE..JZA80..6F199305-199601

main27357-46180i2JZGTE..JZA80..4FC199305-199601

main27357-46290i2JZGE..JZA80199505-199605

27359FRAME, ALTERNATOR RECTIFIER END

main27359-46080i2JZGE..JZA80;2JZGTE..JZA80..6F199305-199504

sub27359-46290

main27359-46100i2JZGTE..JZA80..4FC199305-199601

main27359-46290i2JZGE..JZA80;2JZGTE..JZA80..6F199504-199605

27365PLATE, TERMINAL

main27365-55080i2JZ#..JZA80199305-199605

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i2JZ#..JZA80199305-199605

27384WASHER

main27384-50030i2JZ#..JZA80199305-199605

27387INSULATOR, TERMINAL

main27387-42040i2JZ#..JZA80199305-199605

27388COVER, ALTERNATOR BRUSH

main27388-42010i2JZ#..JZA80199305-199309

main27388-46220i2JZ#..JZA80199309-199605

27389INSULATOR, TERMINAL

main27389-42010i2JZ#..JZA80199305-199605

27411PULLEY, ALTERNATOR

main27411-46080i2JZGE..JZA80;2JZGTE..JZA80..6F199305-199605

main27411-46090i2JZGTE..JZA80..4FC199305-199601

27443COVER, ALTERNATOR BEARING

main27443-63020i2JZ#..JZA80199305-199605

27446CLIP, ALTERNATOR CORD

main27446-46160i2JZGTE..JZA80..4FC199305-199601

main27446-46230i2JZGE..JZA80;2JZGTE..JZA80..6F199305-199605

27700AREGULATOR ASSY, GENERATOR

main27700-46050i2JZGTE..JZA80..6F199305-199601

main27700-46060i2JZ#..JZA80..4FC,5F199305-199605

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905171

main90099-05171

9009905172

main90099-05172

9009905231

main90099-05231

9017908146

main90179-08146

9017910141

main90179-10141

9151261050

main91512-61050

9331914025

main93319-14025

33 parts on this diagram · 1 diagram in section
