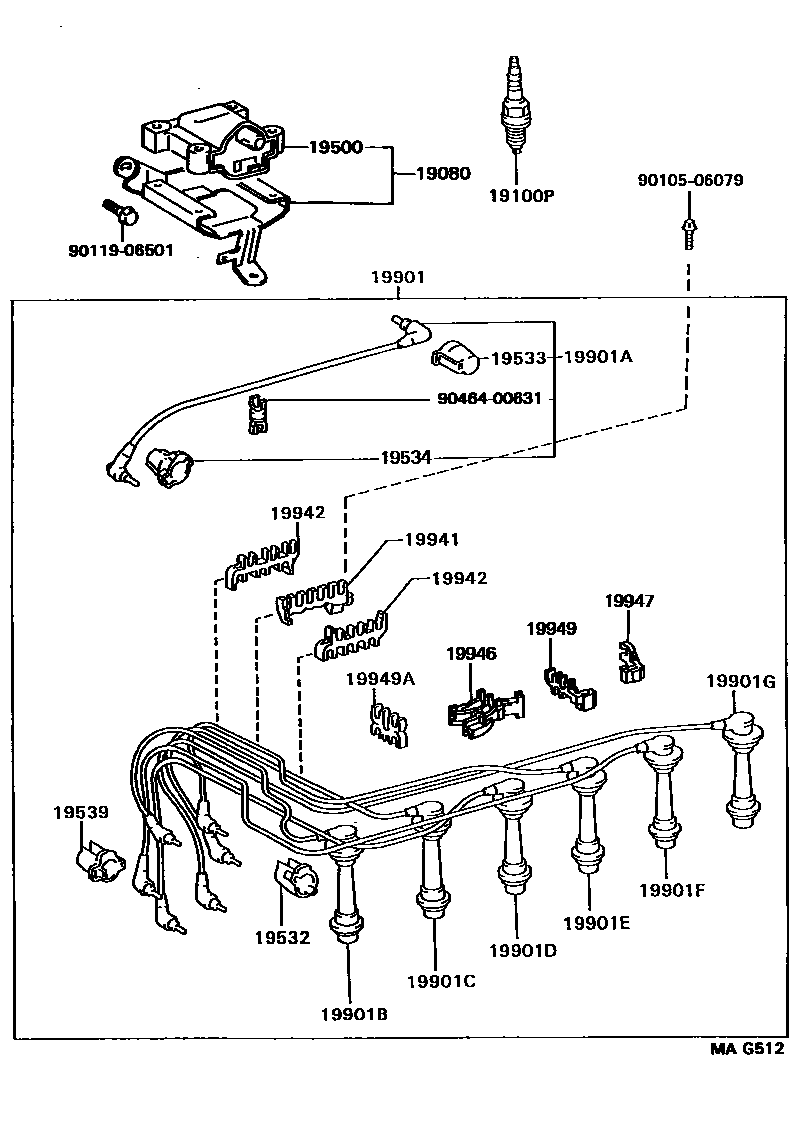

IGNITION COIL & SPARK PLUG / GLOW PLUG
19080COIL ASSY, W/BRACKET & CORD
19100PPLUG, SPARK
K20R-U
19500COIL ASSY, IGNITION
19532HOLDER, RESISTIVE CODE, NO.2
19533HOLDER, RESISTIVE CORD, NO.3
19534HOLDER, RESISTIVE CORD, NO.4
19539HOLDER, RESISTIVE CODE, NO.4
NO.1
NO.5
NO.3
NO.2,4
19901CORD SET, COIL & SPARK, W/RESISTIVE
sub90919-29095
19901ACORD, COIL RESISTIVE
sub90919-13488
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19901FCORD, SPARK PLUG RESISTIVE, NO.5
19901GCORD, SPARK PLUG RESISTIVE, NO.6
19941CLAMP, RESISTIVE CORD, NO.1
19942CLAMP, RESISTIVE CORD, NO.2
19946CLAMP, RESISTIVE CORD, NO.3
19947CLAMP, RESISTIVE CORD, NO.4
19949CLAMP, RESISTIVE CORD, NO.5
19949ACLAMP, CORD, NO.6
9010506079
main90105-06079
9011906501
main90119-06501
9046400631
main90464-00631
24 parts on this diagram · 2 diagrams in section
