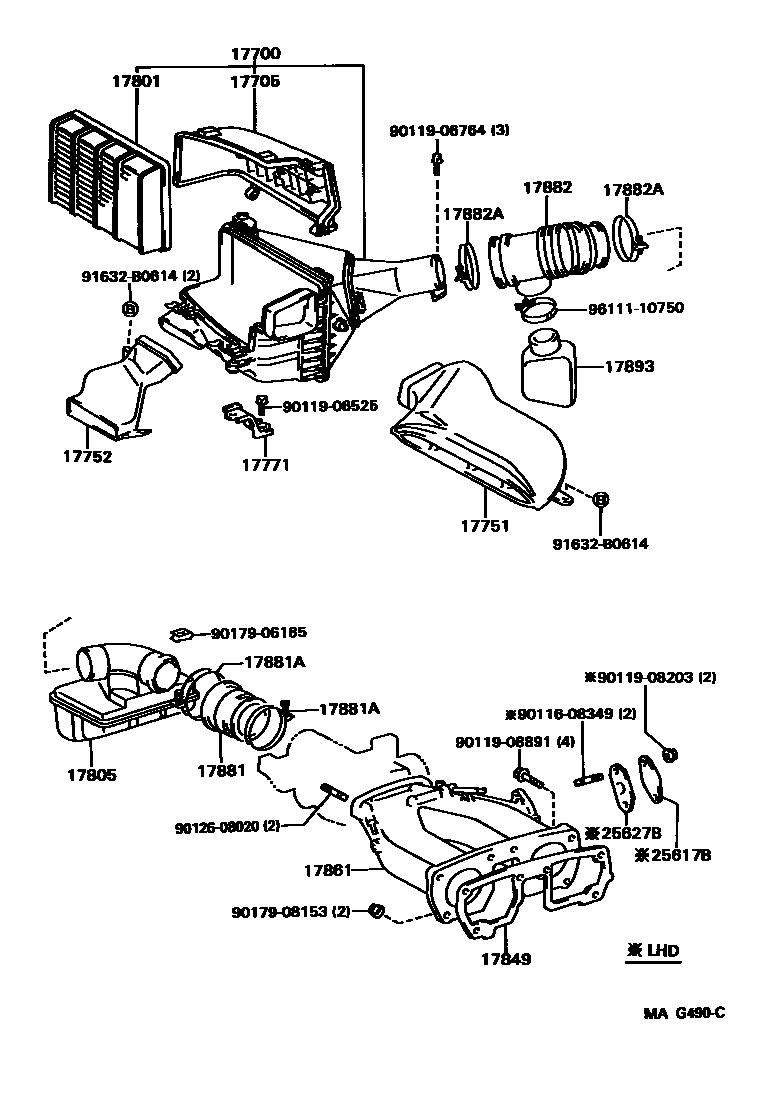

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-46180i2JZGE..JZA80199305-199605

main17700-46210i2JZGTE..JZA80199305-199601

17705CAP SUB-ASSY, AIR CLEANER

main17705-46100i2JZ#..JZA80199305-199605

17751INLET, AIR CLEANER, NO.1

main17751-46050i2JZ#..JZA80199305-199605

17752INLET, AIR CLEANER, NO.2

main17752-46060i2JZ#..JZA80199305-199605

17771BRACKET, AIR CLEANER INLET DUCT

main17771-46010i2JZ#..JZA80199305-199605

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46060i2JZ#..JZA80199305-199605

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-46040i2JZGE..JZA80199305-199605

sub17805-46030

sub12262-46060

17849GASKET, INTAKE AIR CONNECTOR

main17849-46010i2JZGE..JZA80199305-199605

sub17849-46020

17861CONNECTOR, INTAKE AIR

main17860-46030i2JZGE..JZA80..RHD199305-199408

main17860-46031i2JZGE..JZA80199512-199605

main17860-46040i2JZGE..JZA80..LHD199305-199512

sub17860-46070

main17861-46050i2JZGTE..JZA80199305-199601

17881HOSE, AIR CLEANER, NO.1

main17881-46100i2JZGE..JZA80199305-199605

main17881-46180i2JZGTE..JZA80199305-199601

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i2JZGE..JZA80199305-199605

RESONATOR SIDE

main96111-10930i2JZGE..JZA80199305-199605

AIR FLOW METER SIDE

main96111-10980i2JZGTE..JZA80199305-199601

AIR CLEANER SIDE

17882HOSE, AIR CLEANER, NO.2

main17881-46170i2JZGE..JZA80199305-199605

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10880×2i2JZGE..JZA80199305-199605

17893RESONATOR, INTAKE AIR

main17893-46060i2JZGE..JZA80199305-199605

25617BPLATE, EGR HOLE COVER

main25617-46010i2JZGE..JZA80..LHD199305-199512

25627BGASKET, EGR VALVE

main25627-46010i2JZGE..JZA80..LHD199305-199512

9011608349

main90116-08349

9011906525

main90119-06525

9011906764

main90119-06764

9011908203

main90119-08203

9011908891

main90119-08891

9012608020

main90126-08020

9017906185

main90179-06185

9017908153

main90179-08153

91632B0614

main91632-B0614

9611110750

main96111-10750

26 parts on this diagram · 2 diagrams in section
