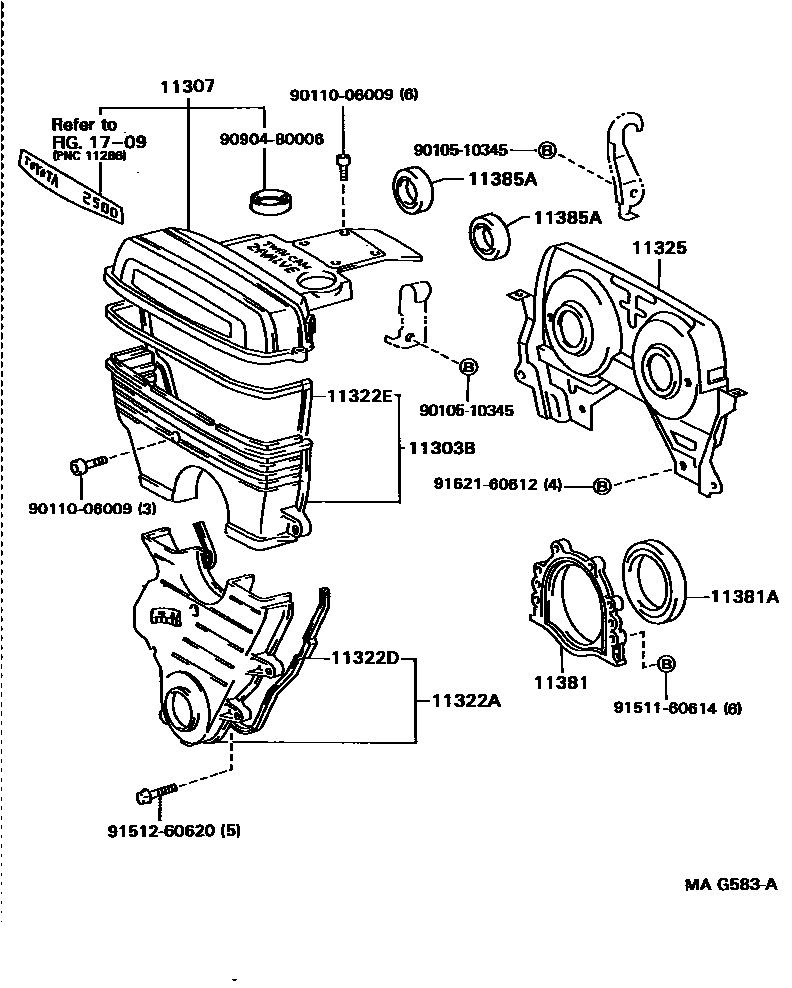

TIMING GEAR COVER & REAR END PLATE
11303BCOVER SUB-ASSY, TIMING BELT, NO.2
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11322ACOVER, TIMING BELT, NO.1
11322DGASKET, TIMING BELT COVER, NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
1709
9010510345
main90105-10345
9011006009
main90110-06009
9090480006
main90904-80006
9151160614
main91511-60614
9151260620
main91512-60620
9162160612
main91621-60612
16 parts on this diagram · 2 diagrams in section
