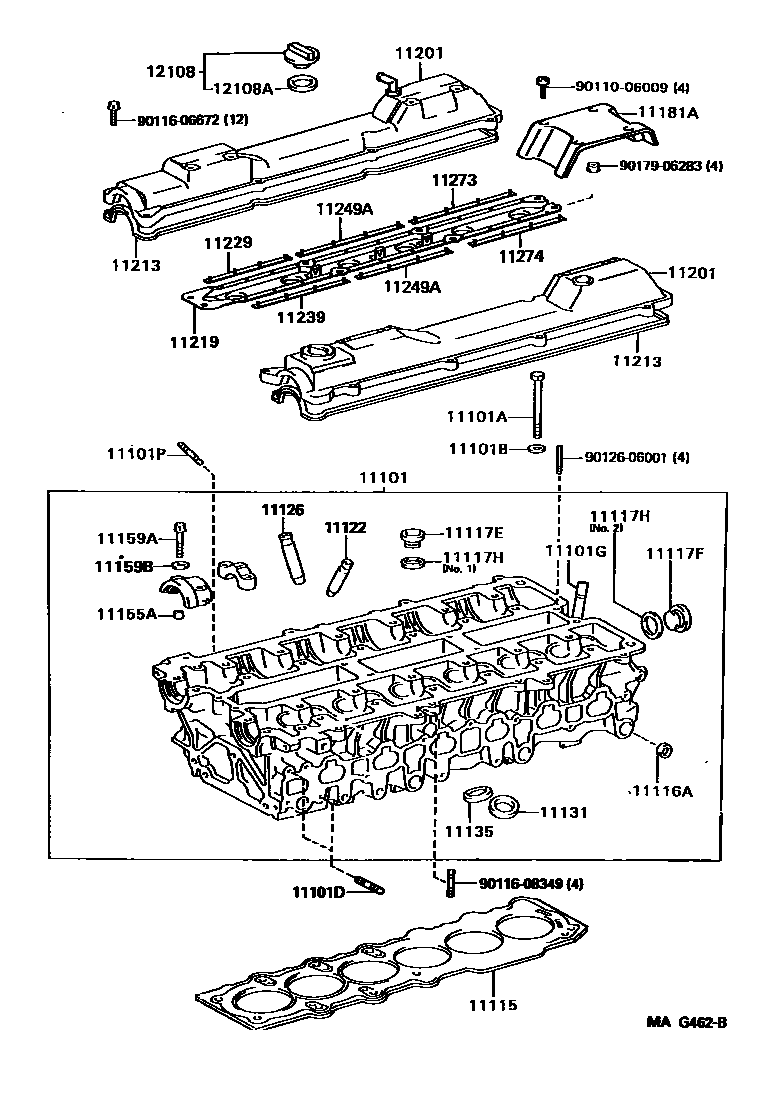

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
sub90201-11034
11101DBOLT, STUD(FOR WATER OUTLET)
11101GUNION(FOR CYLINDER HEAD)
NO.1
NO.2
11101PBOLT, STUD(FOR DISTRIBUTOR)
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
NO.3
NO.1
NO.2
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159BWASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP)
11181ACOVER, CYLINDER HEAD, REAR
11201COVER SUB-ASSY, CYLINDER HEAD
INTAKE SIDE
sub11201-46031
sub11202-46010
sub11219-46011
sub11229-46010
sub11239-46010
sub11249-46010
sub90105-06166
sub90179-06288
sub90210-07001
INTAKE SIDE
EXHAUST SIDE
sub11202-46010
sub11201-46031
sub11219-46011
sub11229-46010
sub11239-46010
sub11249-46010
sub90105-06166
sub90179-06288
sub90210-07001
11213GASKET, CYLINDER HEAD COVER
INTAKE SIDE
EXHAUST SIDE
11219COVER, CYLINDER HEAD, NO.3
11229GASKET, CYLINDER HEAD COVER, NO.3
11239GASKET, CLINDER HEAD CONER, NO.4
11249AGASKET, CLINDER HEAD CONER, NO.5
11273GASKET, CYLINDER BLOCK SIDE COVER
11274GASKET, CYLINDER HEAD COVER, NO.7
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
9011006009
main90110-06009
9011606672
main90116-06672
9011608349
main90116-08349
9012606001
main90126-06001
9017906283
main90179-06283
34 parts on this diagram · 2 diagrams in section
