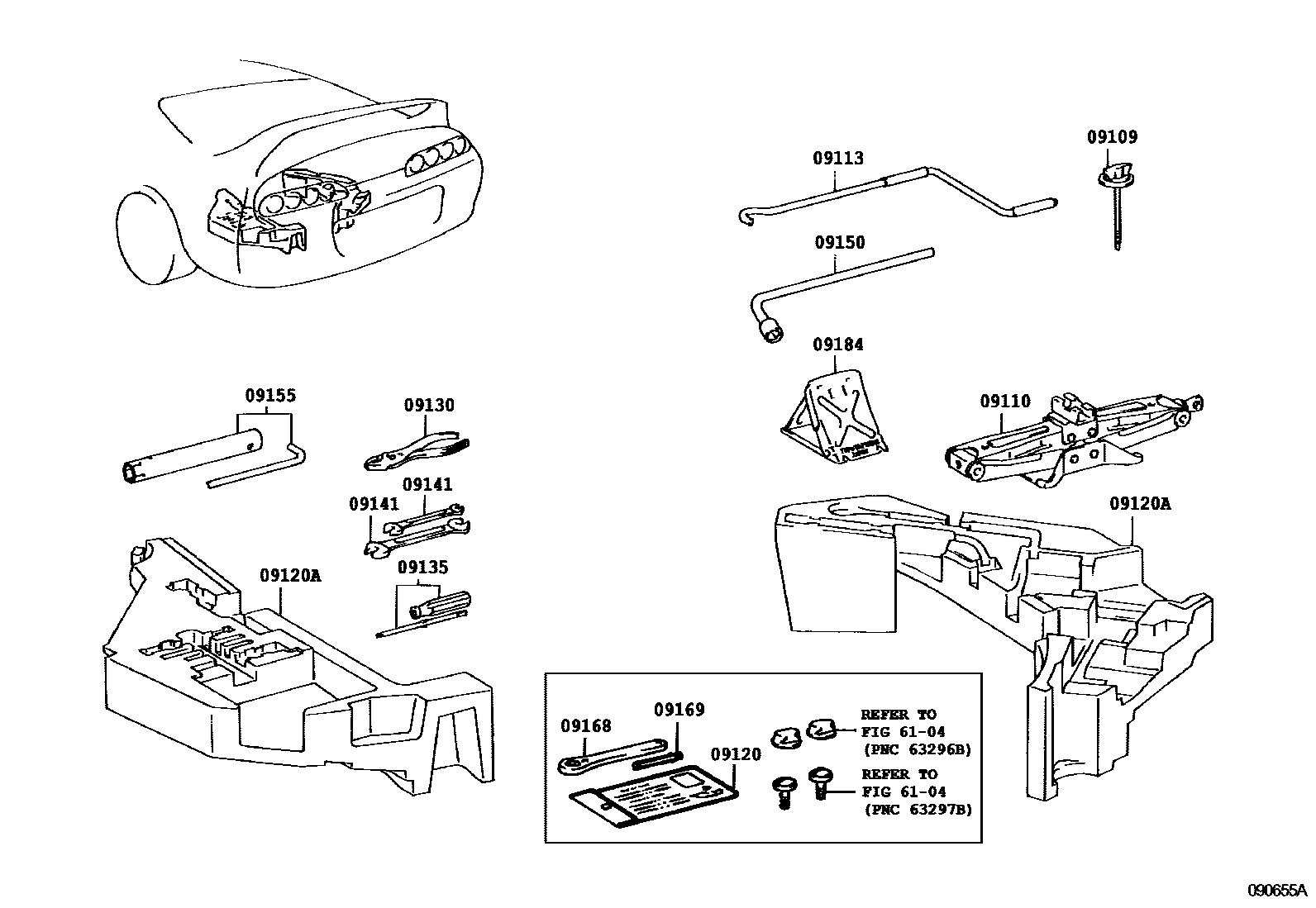

STANDARD TOOL

09109BOLT SUB-ASSY, JACK HOLDER

main09109-14010iJZA80199305-199605

09110JACK ASSY

main09111-14060iJZA80199305-199605

09113HANDLE, JACK

main09113-14030iJZA80199305-199605

09120BAG, TOOL

main09120-14011iJZA80..AET199305-199601

09120ACASE, TOOL

main09120-14060iJZA80199305-199605

RH

main09120-14070iJZA80199305-199605

LH

09130PLIERS

main99913-11500iJZA80199305-199605

09135DRIVER, SCREW

main99915-10700iJZA80199305-199605

09141SPANNER

main99914-10810iJZA80199305-199605

8 X 10

main99914-11214iJZA80199305-199605

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iJZA80199305-199605

09155WRENCH, SPARK PLUG

main09155-74010iJZA80..GCC,GEN199305-199605

09168WRENCH, ROOF PANEL

main09168-14010iJZA80..AET199305-199601

09169HANDLE, ROOF PANEL

main09169-14010iJZA80..AET199305-199601

09184STOPPER, WHEEL

main09184-00010iJZA80199305-199605

6104

14 parts on this diagram · 1 diagram in section
