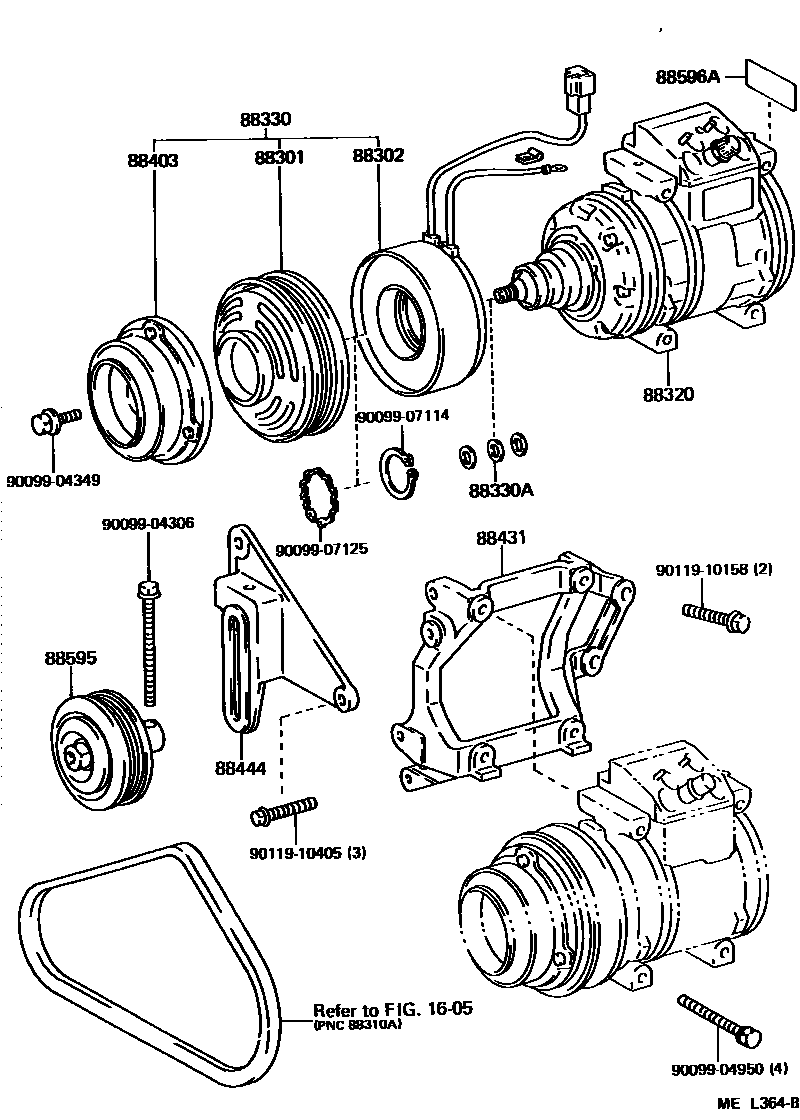

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12160iMA70..ARL;MA70..LHD..TWC198808-199305

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14111iMA70..RHD..GEN198808-199109

DEALER OPTION

sub88411-14120

main88411-14111iMA70..ARL198808-199109

sub88411-14120

main88411-14120iMA70..RHD..GEN198808-199109

MAKER OPTION

main88411-14120iMA70..RHD..GEN199108-199109

HONG KONG SPEC

main88411-14120iMA70..ARL,GEN,V198808-199305

88320COMPRESSOR ASSY, COOLER

main88320-14521iMA70..RHD..GEN199008-199108

DEALER OPTION,HONG KONG SPEC

sub88320-14523

main88320-14521iMA70..RHD..GEN198808-199008

DEALER OPTION

sub88320-14523

main88320-14523iMA70..ARL199008-199305

DEALER OPTION

sub88320-22H91

main88320-14550iMA70..C,EUR198808-199305

main88320-14560iMA70..RHD..GEN198808-199008

MAKER OPTION

sub88320-14561

main88320-14561iMA70..LHD..TWC199008-199305

MAKER OPTION

sub88320-22H91

88330CLUTCH ASSY, MAGNET

main88410-14181iMA70..ARL,C,EUR198808-199209

sub88410-14210

main88410-14181iMA70..RHD..GEN198808-199209

DEALER OPTION

sub88410-14210

main88410-14210iMA70198808-199305

main88410-14210iMA70..RHD..GEN198808-199209

MAKER OPTION

main88410-14210iMA70..ARL199108-199209

HONG KONG SPEC

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMA70..ARL199108-199305

3 PIECE SET

main88335-14020iMA70..ARL,GEN,V198808-199108

main90099-01553iMA70..ARL199108-199305

T=0.1

sub88318-87704

main90099-01554iMA70..ARL199108-199305

T=0.3

sub88318-87705

main90099-01555iMA70..ARL199108-199305

T=0.5

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iMA70..ARL,GEN,V198808-199305

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-14240iMA70..C,EUR198808-199305

main88431-24070iMA70..ARL,GEN,V198808-199305

88444BRACKET, IDLE PULLEY

main88444-24010iMA70..ARL,C,V;MA70..LHD..GEN198808-199305

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iMA70198808-199305

88596APLATE, CAUTION

main88356-12010iMA70..ARL,GEN,V198808-199305

9009904306

main90099-04306

9009904349

main90099-04349

9009904950

main90099-04950

9009907114

main90099-07114

9009907125

main90099-07125

9011910158

main90119-10158

9011910405

main90119-10405

18 parts on this diagram · 2 diagrams in section
