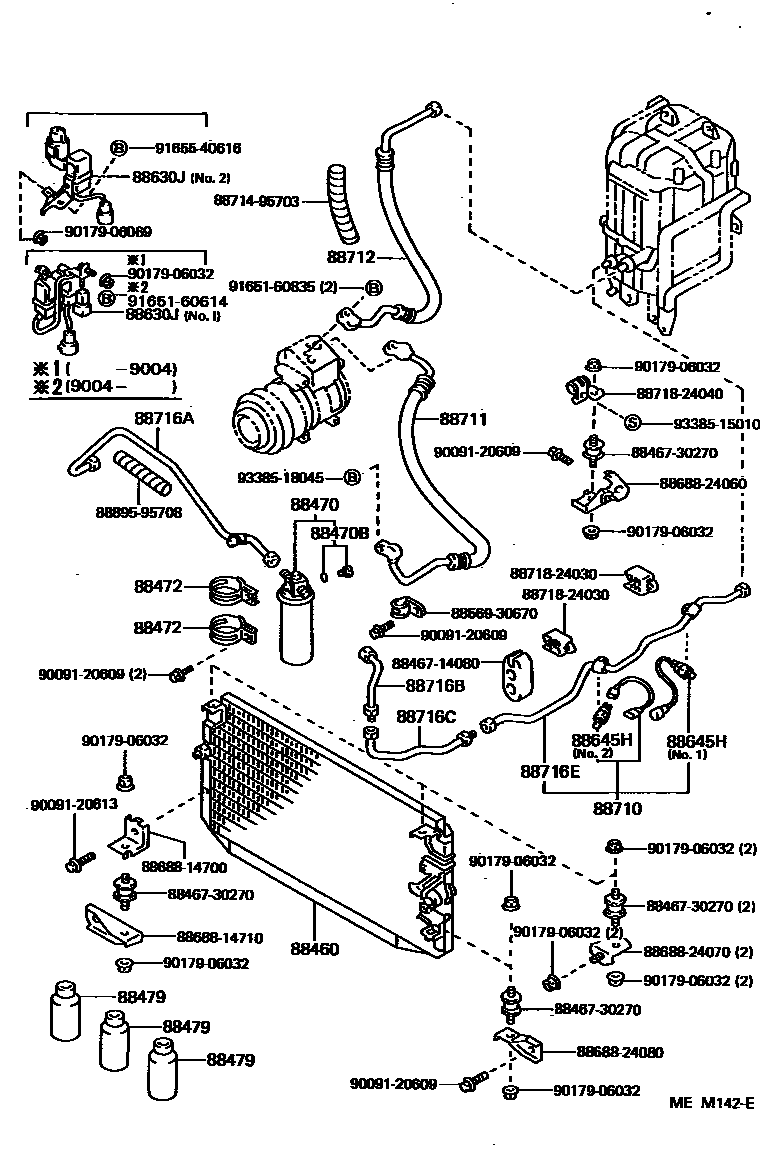

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1DEALER OPT 0002 1MAKER OPT 0003 1 0004 1 0005 1

88460CONDENSER ASSY, COOLER

main88460-14252iMA70..LHD..(GEN,V)198808-199007

main88460-14262iMA70..LHD..TWT198808-199305

main88460-14270iMA70..RHD..TWT..C198808-199305

main88460-14280iMA70..LHD..TWC..(C,EUR)198808-199008

main88460-14290iMA70..LHD..(GEN,V)199007-199305

main88460-24051iMA70..TWT..ARL;MA70..RHD..TWC..(C,EUR)198808-199305

main88460-24060iMA70..RHD..GEN199108-199305

HONG KONG SPEC

sub88460-24051

main88460-24060iMA70..RHD..GEN198808-199108

sub88460-24051

88470RECEIVER & DRYER ASSY, COOLER

main88471-95401iMA70..RHD..GEN198808-199305

88470BBOLT, FUSE

main88475-12020iMA70..ARL,C,V;MA70..LHD..GEN198808-199305

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iMA70..RHD..GEN198808-199305

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02004iMA70..RHD..(ARL,GEN)198808-199305

250G

88630JRELAY ASSY (FOR CONDENSER MOTOR)

main88630-14090iMA70..4FC..TWT..ARL198808-199305

NO.2

main88630-24060iMA70..C,V;MA70..LHD..GEN;MA70..4FC..ARL198808-199305

NO.1

main88630-24060iMA70..5F..ARL199004-199305

88645HSWITCH, PRESSURE NO.1

main88645-10020iMA70..ARL,C,V;MA70..LHD..GEN198808-199305

NO.2

main88645-14010iMA70..LHD198808-199305

NO.1

sub88645-24050

main88645-24050iMA70..RHD..(ARL,C)198808-199305

NO.1

88710TUBE ASSY, AIR CONDITIONER

main88706-14070iMA70..RHD..(ARL,GEN)198808-199305

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-14630iMA70..V198808-199305

main88711-24070iMA70..ARL,C;MA70..LHD..GEN198808-199305

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-1B080iMA70..RHD..GEN198808-199305

MAKER OPTION

main88712-1B080iMA70..RHD..(C,EUR)198808-199305

main88712-1B090iMA70..LHD198808-199305

main88712-1B100iMA70..RHD..GEN198808-199305

DEALER OPTION

sub88712-1B170

main88712-1B100iMA70..ARL198808-199305

sub88712-1B170

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-1B121iMA70..LHD;MA70..RHD..TWT..C198808-199305

main88716-1B170iMA70..RHD..GEN198808-199305

DEALER OPTION

main88716-1B170iMA70..ARL198808-199305

main88716-24151iMA70..RHD..TWC..(C,EUR)198808-199305

main88716-24151iMA70..RHD..GEN198808-199305

MAKER OPTION

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-1B073iMA70..LHD198808-199305

main88716-24160iMA70..RHD..(ARL,C)198808-199305

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-1B100iMA70..ARL198808-199305

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-1B112iMA70..LHD198808-199305

main88716-1B180iMA70..RHD..GEN198808-199305

DEALER OPTION

main88716-1B180iMA70..ARL198808-199305

main88716-24140iMA70..RHD..(C,EUR)198808-199305

main88716-24140iMA70..RHD..GEN198808-199305

MAKER OPTION

8846714080CUSHION, COOLER CONDENSER, NO.1

main88467-14080

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8856930670CLAMP (FOR COOLER RELAY)

main88569-30670

8868814700BRACKET, COOLER DIAPHRAGM

main88688-14700

8868814710BRACKET, COOLER DIAPHRAGM

main88688-14710

8868824060BRACKET, COOLER DIAPHRAGM

main88688-24060

8868824070BRACKET, COOLER DIAPHRAGM

main88688-24070

8868824080BRACKET, COOLER DIAPHRAGM

main88688-24080

8871495703HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95703

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

8871824040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24040

8889595708HOLDER, FUSE

main88895-95708

9009120609

main90091-20609

9009120613

main90091-20613

9017906032

main90179-06032

9017906069

main90179-06069

9165160614

main91651-60614

9165160835

main91651-60835

9165540616

main91655-40616

9338515010

main93385-15010

9338518045

main93385-18045

35 parts on this diagram · 5 diagrams in section
