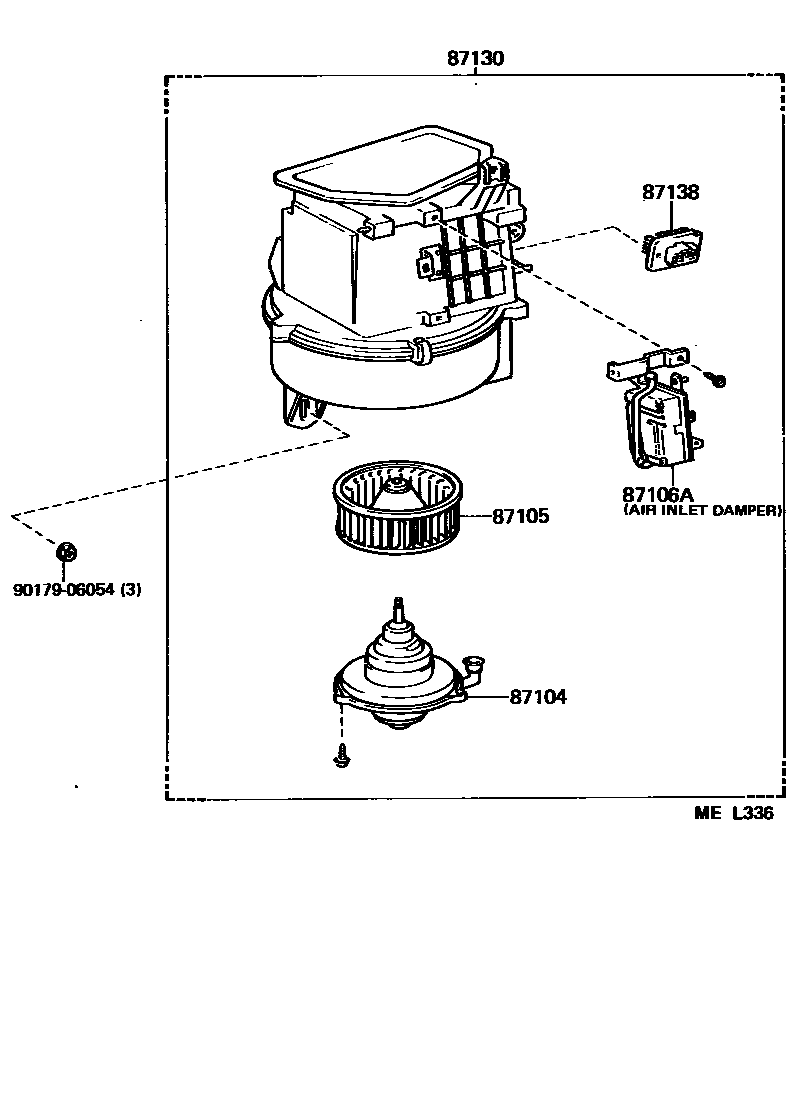

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-24020iMA70198808-199305

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iMA70..LHD198808-199305

main87105-14030iMA70..RHD198808-199305

87106ASERVO SUB-ASSY, DAMPER

main87106-14010iMA70..LHD198808-199305

AIR INLET DUMPER

main87106-14020iMA70..LHD198808-199305

MODE DAMPER

sub87106-14070

main87106-14030iMA70..LHD198808-199305

AIR MIX DAMPER

main87106-14040iMA70..RHD198808-199305

AIR INLET DUMPER

main87106-24020iMA70..RHD198808-199305

MODE DAMPER

main87106-24030iMA70..RHD198808-199305

AIR MIX DAMPER

87130BLOWER ASSY, HEATER, FRONT

main87130-14090iMA70..RHD198808-199205

main87130-14110iMA70..RHD..(C,EUR,GEN)198808-199205

W(AUTO AIR CONDITIONER)

main87130-14120iMA70..LHD198808-199008

main87130-14130iMA70..LHD..(C,GEN)199008-199205

W(AUTO AIR CONDITIONER)

main87130-14180iMA70..RHD199205-199305

main87130-14190iMA70..RHD..(C,GEN)199205-199305

W(AUTO AIR CONDITIONER)

main87130-14200iMA70..LHD..(C,GEN)199205-199305

main87130-14210iMA70..LHD..(C,GEN)199205-199305

W(AUTO AIR CONDITIONER)

87138RESISTOR, HEATER BLOWER

main87138-14090iMA70198808-199008

main87138-14100iMA70..ARL,C,GEN199205-199305

main87138-14110iMA70..C,GEN199205-199305

W(AUTO AIR CONDITIONER)

main87138-24030iMA70..C,GEN199008-199205

W(AUTO AIR CONDITIONER)

9017906054

main90179-06054

6 parts on this diagram · 3 diagrams in section
